ST220R-AEPNK (1997)
Toyota Corona

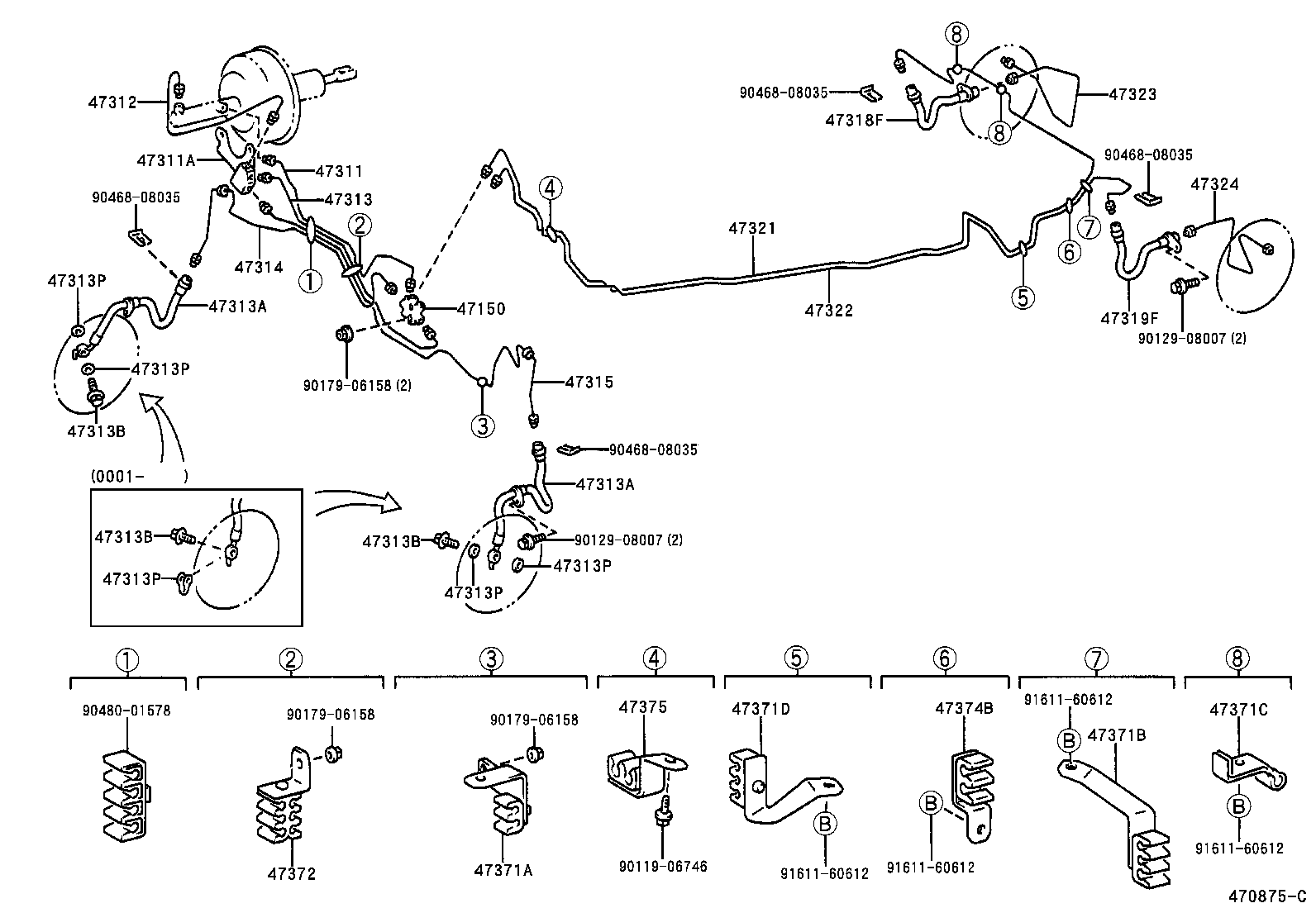

ILLUST NO. 1 OF 3(9710- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12080 |
AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47150-20450 |
AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-05140 |
AT220,ST220..RHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47311-05141 |
AT220,ST220..RHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 47391-05050 |
AT220,ST220..RHD |
1 | ||
| 47391-05100 |
AT220,ST220..RHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-05020 |
AT220,ST220..RHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47312-05030 |
AT220,ST220..RHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-05131 |
AT220,ST220..RHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47313-05130 |
AT220,ST220..RHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94060 |
AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90080-94A61 |
AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 90080-94061 |
AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 90080-94A60 |
AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94060 |
AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 90080-94A61 |
AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 90080-94061 |
AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,LH |
1 | ||
| 90080-94A60 |
AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3,RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AT220,CT220,ST220 |
2 | ||
| 90401-10015 |
AT220,CT220,ST220 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AT220,CT220,ST220 |
2 | ||
| 90401-10015 |
AT220,CT220,ST220 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AT220,CT220,ST220 |
2 | ||
| 90401-10015 |
AT220,CT220,ST220 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AT220,CT220,ST220 |
2 | ||
| 47389-30010 |
AT220,CT220,ST220 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AT220,CT220,ST220 |
2 | ||
| 47389-30010 |
AT220,CT220,ST220 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AT220,CT220,ST220 |
2 | ||
| 47389-30010 |
AT220,CT220,ST220 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AT220,CT220,ST220 |
2 | ||
| 47389-30010 |
AT220,CT220,ST220 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AT220,CT220,ST220 |
2 | ||
| 47389-30010 |
AT220,CT220,ST220 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-05060 |
AT220,ST220..RHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47314-05061 |
AT220,ST220..RHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-05110 |
AT220,ST220..RHD D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47315-05111 |
AT220,ST220..RHD S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90080-94065 |
AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90080-94A65 |
AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90080-94165 |
ST220 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90080-94066 |
AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 90080-94166 |
ST220 |
1 | ||
| 90080-94A66 |
AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-05052 |
ST220 |
1 | ||
| 47321-05050 |
AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47321-05051 |
AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-05051 |
AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-05050 |
AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47322-05052 |
ST220 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-05021 |
AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47323-05020 |
AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-05021 |
AT220,CT220,ST220 S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47324-05020 |
AT220,CT220,ST220 D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-21010 |
AT220,ST220..RHD |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-20640 |
AT220,CT220,ST220 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01806 |
AT220,CT220,ST220 |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47371-20730 |
AT220,CT220,ST220 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-20670 |
AT220,ST220..RHD |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-20500 |
AT220,CT220,ST220 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-20600 |
AT220,CT220,ST220 |
1 | ||
| Common parts | ||||
| 90119-06746 | ||||
| 90129-08007 | ||||
| 90179-06158 | ||||
| 90468-08035 | ||||
| 90480-01578 | ||||
| 91611-60612 | ||||

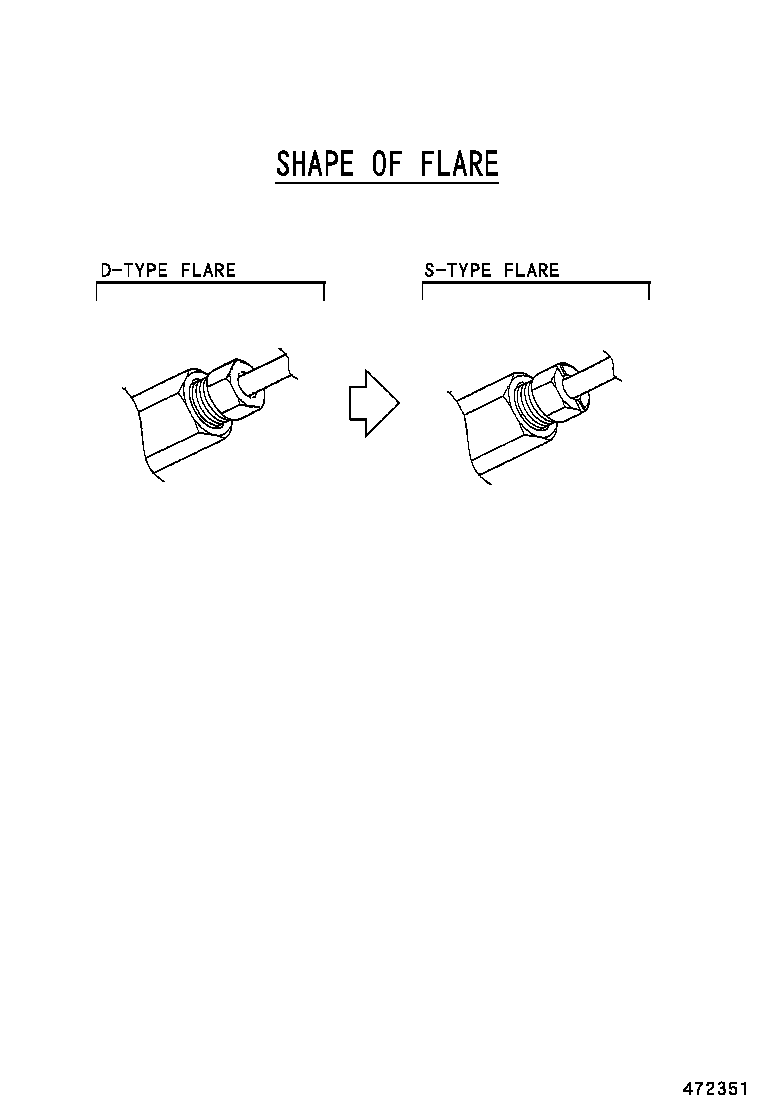

ILLUST NO. 3 OF 3(9710- )
| Part # | Description | Qty | Price |
|---|
