ST220R-AEPNK (1997)
Toyota Corona

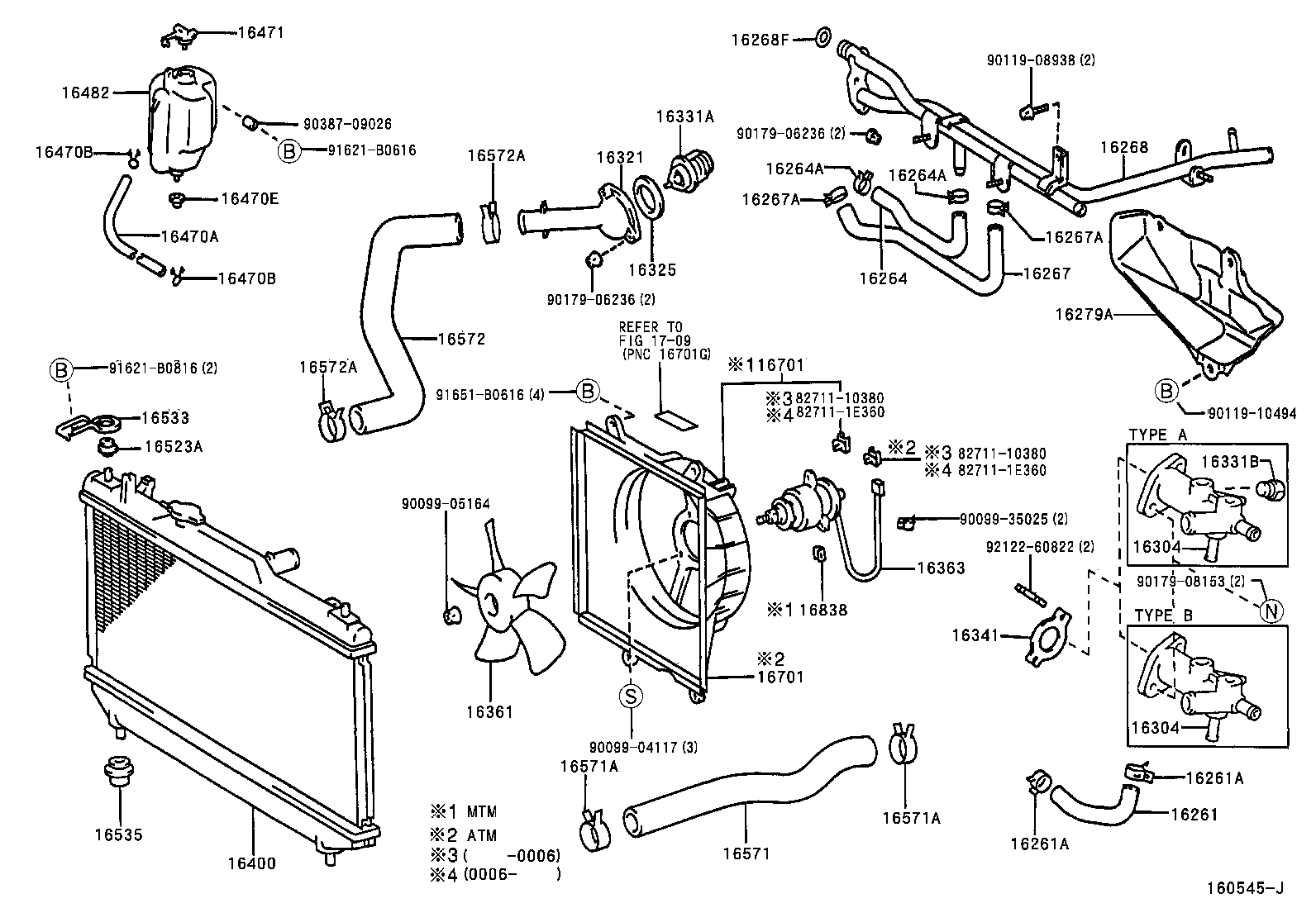

ILLUST NO. 1 OF 2(9710- )3SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-74100 |
3SFE..ST220 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-22003 |
3SFE..ST220 |
2 | ||
| 90467-21010 |
3SFE..ST220 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-22003 |
3SFE..ST220 |
2 | ||
| 90467-21010 |
3SFE..ST220 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-74030 |
3SFE..ST220 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-20005 |
3SFE..ST220 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-20005 |
3SFE..ST220 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-74030 |
3SFE..ST220 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-20005 |
3SFE..ST220 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-20005 |
3SFE..ST220 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-74230 |
3SFE..ST220 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24017 |
3SFE..ST220 |
1 | ||
| 16279A - PROTECTOR, HOSE HEAT | ||||
| 16279-74050 |
3SFE..ST220 |
1 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-74290 |
3SFE..ST220 |
1 | ||
| 16304-74280 |
3SFE..ST220 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 16304-74290 |
3SFE..ST220 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-74290 |
3SFE..ST220 |
1 | ||
| 16304-74280 |
3SFE..ST220 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 16304-74290 |
3SFE..ST220 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-74050 |
3SFE..ST220 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63011 |
3SFE..ST220 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03090 |
3SFE..ST220 *WAX 82-95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90345-53007 |
3SFE..ST220 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-74020 |
3SFE..ST220 |
1 | ||
| 16361 - FAN | ||||
| 16361-63020 |
3SFE..ST220..ATM |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-74300 |
3SFE..ST220..ATM |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-03190 |
3SFE..ST220..ATM |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-02070 |
3SFE..ST220 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90466-11001 |
3SFE..ST220 |
2 | ||
| 90466-11001 |
3SFE..ST220 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90466-11001 |
3SFE..ST220 |
2 | ||
| 90466-11001 |
3SFE..ST220 |
1 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90080-48049 |
3SFE..ST220 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-02070 |
3SFE..ST220 |
1 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16482-02070 |
3SFE..ST220 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-02020 |
3SFE..ST220 |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-02060 |
3SFE..ST220 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-02050 |
3SFE..ST220 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-74330 |
3SFE..ST220 |
1 | ||
| 16571-03051 |
3SFE..ST220 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
3SFE..ST220 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
3SFE..ST220 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-74190 |
3SFE..ST220 |
1 | ||
| 16572-03050 |
3SFE..ST220 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
3SFE..ST220 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
3SFE..ST220 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-74080 |
3SFE..ST220..ATM |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-74080 |
3SFE..ST220..ATM |
1 | ||
| 16838 - CLAMP, FAN SHROUD | ||||
| 16838-11010 |
3SFE..ST220 |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 82711-1E360 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90099-35025 | ||||
| 90119-08938 | ||||
| 90119-10494 | ||||
| 90179-06236 | ||||
| 90179-08153 | ||||
| 90387-09026 | ||||
| 91621-B0616 | ||||
| 91621-B0816 | ||||
| 91651-B0616 | ||||
| 92122-60822 | ||||
| Linked diagrams | ||||
| 1709 | ||||

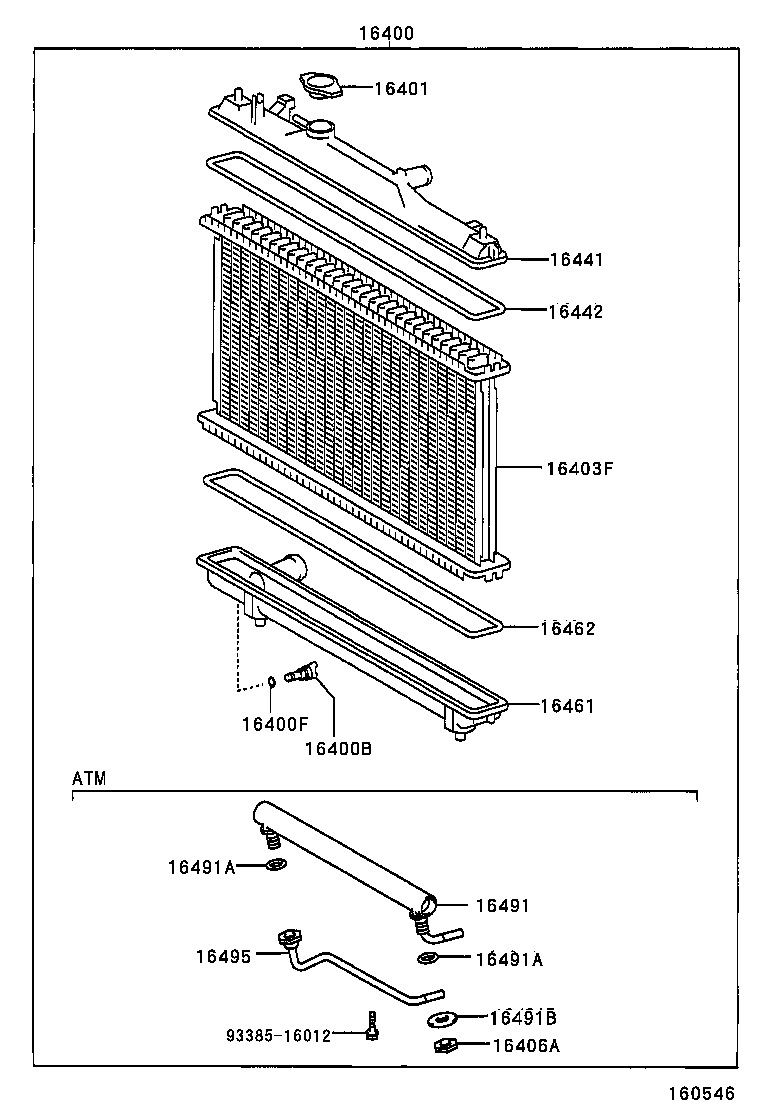

ILLUST NO. 2 OF 2(9710- )3SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-03190 |
3SFE..ST220..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90080-34010 |
3SFE..ST220 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 90080-30024 |
3SFE..ST220 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
3SFE..ST220 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-03190 |
3SFE..ST220..ATM |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
3SFE..ST220..ATM |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-03190 |
3SFE..ST220..ATM |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-03190 |
3SFE..ST220..ATM |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-74830 |
3SFE..ST220..ATM |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-03190 |
3SFE..ST220..ATM |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-74790 |
3SFE..ST220..ATM |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-02030 |
3SFE..ST220..ATM |
2 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-02030 |
3SFE..ST220..ATM |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
3SFE..ST220..ATM |
1 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-74790 |
3SFE..ST220..ATM |
1 | ||
| Common parts | ||||
| 93385-16012 | ||||
