ST210R-AEPNK (1996)
Toyota Corona
ILLUST NO. 2 OF 2(9601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

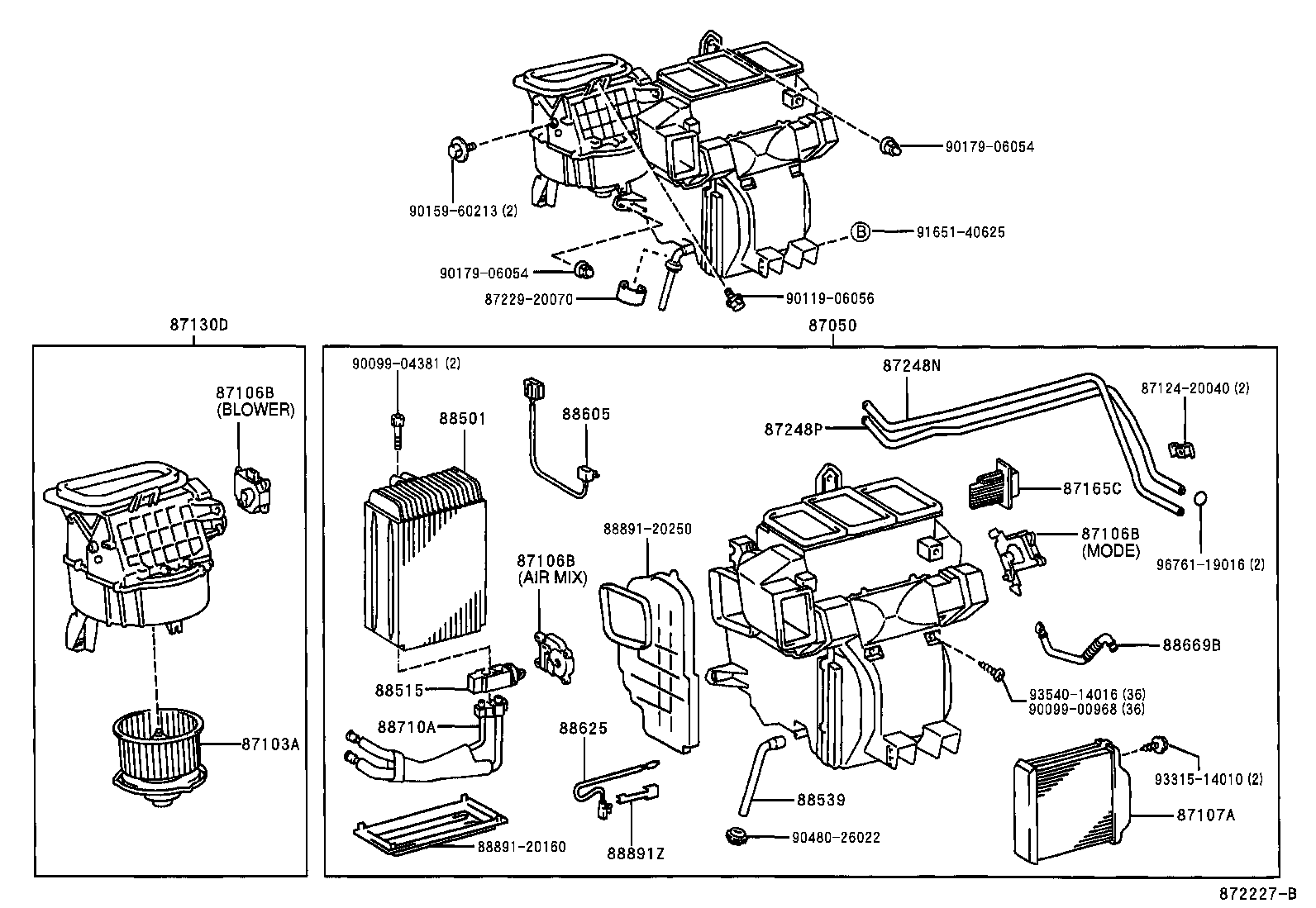

ILLUST NO. 1 OF 2(9601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-20070 |
AT210,ST210 |
1 | ||
| 87050-20180 |
AT210,ST210..ATM |
1 | ||
| 87050-20180 |
AT210,ST210 |
1 | ||
| 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN | ||||
| 87103-22100 |
AT210,ST210 |
1 | ||
| 87103-22120 |
AT210,ST210 |
1 | ||
| 87103-20110 |
AT210,ST210..ATM |
1 | ||
| 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) | ||||
| 87106-20350 |
AT210,ST210 AIR MIX |
1 | ||
| 87106-20400 |
AT210,ST210 |
1 | ||
| 87106-20350 |
AT210,ST210..ATM AIR MIX |
1 | ||
| 87106-20360 |
AT210,ST210 BLOWER |
1 | ||
| 87106-20220 |
AT210,ST210 MODE |
1 | ||
| 87106-20360 |
AT210,ST210..ATM BLOWER |
1 | ||
| 87106-20400 |
AT210,ST210..ATM |
1 | ||
| 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) | ||||
| 87106-20350 |
AT210,ST210 AIR MIX |
1 | ||
| 87106-20400 |
AT210,ST210 |
1 | ||
| 87106-20350 |
AT210,ST210..ATM AIR MIX |
1 | ||
| 87106-20360 |
AT210,ST210 BLOWER |
1 | ||
| 87106-20220 |
AT210,ST210 MODE |
1 | ||
| 87106-20360 |
AT210,ST210..ATM BLOWER |
1 | ||
| 87106-20400 |
AT210,ST210..ATM |
1 | ||
| 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) | ||||
| 87106-20350 |
AT210,ST210 AIR MIX |
1 | ||
| 87106-20400 |
AT210,ST210 |
1 | ||
| 87106-20350 |
AT210,ST210..ATM AIR MIX |
1 | ||
| 87106-20360 |
AT210,ST210 BLOWER |
1 | ||
| 87106-20220 |
AT210,ST210 MODE |
1 | ||
| 87106-20360 |
AT210,ST210..ATM BLOWER |
1 | ||
| 87106-20400 |
AT210,ST210..ATM |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-20600 |
AT210,ST210..ATM |
1 | ||
| 87107-20600 |
AT210,ST210 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-20530 |
AT210,ST210 |
1 | ||
| 87130-20640 |
AT210,ST210..ATM |
1 | ||
| 87130-20530 |
AT210,ST210..ATM |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-20010 |
AT210,ST210 |
1 | ||
| 87165-20010 |
AT210,ST210..ATM |
1 | ||
| 87248N - PIPE, HEATER WATER INLET | ||||
| 87248-20360 |
AT210,ST210 |
1 | ||
| 87248-20360 |
AT210,ST210..ATM |
1 | ||
| 87248P - PIPE, HEATER WATER OUTLET | ||||
| 87248-20370 |
AT210,ST210..ATM |
1 | ||
| 87248-20370 |
AT210,ST210 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-20291 |
AT210,ST210 |
1 | ||
| 88501-20291 |
AT210,ST210..ATM |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20100 |
AT210,ST210..ATM |
1 | ||
| 88515-20100 |
AT210,ST210 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-20270 |
AT210,ST210..ATM |
1 | ||
| 88539-20270 |
AT210,ST210 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-2D470 |
AT210,ST210 |
1 | ||
| 88605-2D470 |
AT210,ST210..ATM |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-3A090 |
AT210,ST210..ATM |
1 | ||
| 88625-3A090 |
AT210,ST210 |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 88669-20150 |
AT210,ST210 |
1 | ||
| 88669-20150 |
AT210,ST210..ATM |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-20600 |
AT210,ST210..ATM |
1 | ||
| 88710-20600 |
AT210,ST210 |
1 | ||
| 88891Z - BRACKET, COOLER THERMISTOR | ||||
| 88891-20240 |
AT210,ST210 |
1 | ||
| 88891-20240 |
AT210,ST210..ATM |
1 | ||
| Common parts | ||||
| 87124-20040 | ||||
| 87229-20070 | ||||
| 88891-20160 | ||||
| 88891-20250 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90119-06056 | ||||
| 90159-60213 | ||||
| 90179-06054 | ||||
| 90480-26022 | ||||
| 91651-40625 | ||||
| 93315-14010 | ||||
| 93540-14016 | ||||
| 96761-19016 | ||||
