ST210R-AEPNK (1996)
Toyota Corona
Production
Jan 1996
-
Dec 2001
Engine
3SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

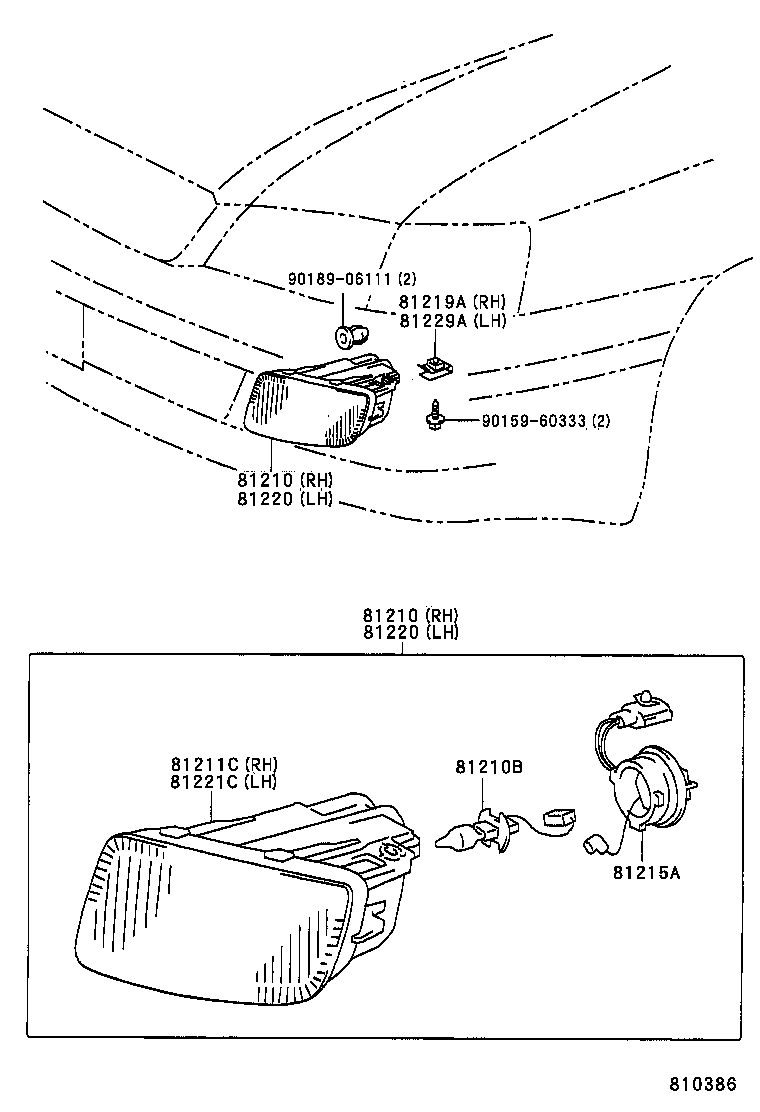

(9601-9712)ST210
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210 - LAMP ASSY, FOG | ||||
| 81210-20410 |
ST210 |
1 | ||
| 81210-20390 |
ST210 |
1 | ||
| 81210 - LAMP ASSY, FOG | ||||
| 81210-20410 |
ST210 |
1 | ||
| 81210-20390 |
ST210 |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13071 |
ST210 12V 55W,HALOGEN |
2 | ||
| 81211C - LAMP UNIT, FOG LAMP, RH | ||||
| 81211-20410 |
ST210 |
1 | ||
| 81211-20390 |
ST210 |
1 | ||
| 81215A - SOCKET & WIRE, FOG LAMP | ||||
| 81215-20390 |
ST210 |
2 | ||
| 81219A - BRACKET, FOG LAMP, RH | ||||
| 52125-20100 |
ST210 |
1 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-20400 |
ST210 |
1 | ||
| 81220-20380 |
ST210 |
1 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-20400 |
ST210 |
1 | ||
| 81220-20380 |
ST210 |
1 | ||
| 81221C - LAMP UNIT, FOG LAMP, LH | ||||
| 81221-20400 |
ST210 |
1 | ||
| 81221-20380 |
ST210 |
1 | ||
| 81229A - BRACKET, FOG LAMP, LH | ||||
| 52125-20100 |
ST210 |
1 | ||
| Common parts | ||||
| 90159-60333 | ||||
| 90189-06111 | ||||

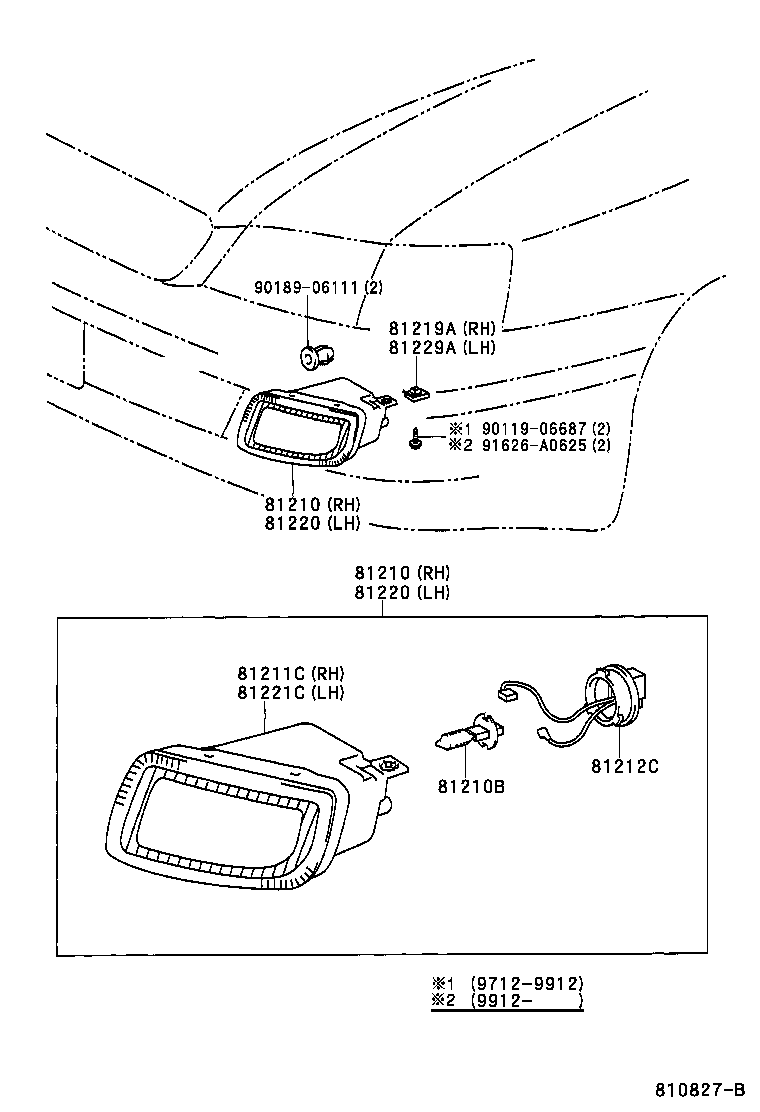

(9712- )ST210
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210 - LAMP ASSY, FOG | ||||
| 81210-20410 |
ST210 |
1 | ||
| 81210-20390 |
ST210 |
1 | ||
| 81210 - LAMP ASSY, FOG | ||||
| 81210-20410 |
ST210 |
1 | ||
| 81210-20390 |
ST210 |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13071 |
ST210 12V 55W,HALOGEN |
2 | ||
| 81211C - LAMP UNIT, FOG LAMP, RH | ||||
| 81211-20410 |
ST210 |
1 | ||
| 81211-20390 |
ST210 |
1 | ||
| 81212C - COVER, FOG LAMP | ||||
| 90075-66001 |
ST210 |
2 | ||
| 81219A - BRACKET, FOG LAMP, RH | ||||
| 52125-20100 |
ST210 |
1 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-20400 |
ST210 |
1 | ||
| 81220-20380 |
ST210 |
1 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81220-20400 |
ST210 |
1 | ||
| 81220-20380 |
ST210 |
1 | ||
| 81221C - LAMP UNIT, FOG LAMP, LH | ||||
| 81221-20400 |
ST210 |
1 | ||
| 81221-20380 |
ST210 |
1 | ||
| 81229A - BRACKET, FOG LAMP, LH | ||||
| 52125-20100 |
ST210 |
1 | ||
| Common parts | ||||
| 90119-06687 | ||||
| 90189-06111 | ||||
| 91626-A0625 | ||||
