ST210R-AEPNK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001
Engine 3SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

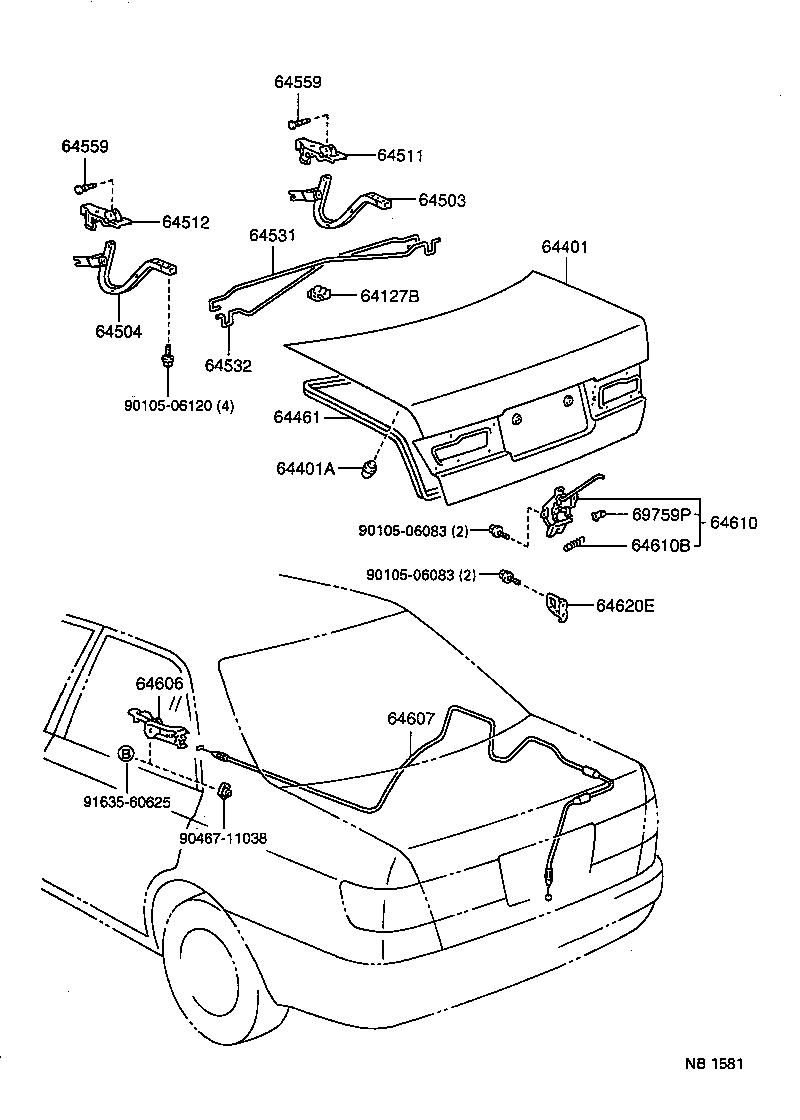

Click highlighted areas on diagram

diagram 64127B 64401 64401A 64461 64503 64504 64511 64512 64531 64532 64559 64559 64606 64607 64610 64610B 64620E 69759P 9010506083 9010506083 9010506120 9046711038 9163560625
Part # Description Qty Price
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-20120

AT210,ST210

 1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-2B580

AT210,ST210

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-09088

AT210,ST210

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-20390

AT210,ST210

 1
64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64503-20100

AT210,ST210

 1
64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64503-20100

AT210,ST210

 1
64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64511-20230

AT210,ST210

 1
64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64511-20230

AT210,ST210

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-20570

AT210,ST210

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-20570

AT210,ST210

 1
64559 - PIN, LUGGAGE DOOR HINGE
64559-32020

AT210,ST210

 2
64559 - PIN, LUGGAGE DOOR HINGE
64559-32020

AT210,ST210

 2
64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606-20180

AT210,ST210

 1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-2B040

AT210,ST210

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-20290

AT210,ST210

 1
64610B - SPRING, TENSION(FOR LOCK)
90506-05001

AT210,ST210

 1
64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64621-12070

AT210,ST210

 1
69759P - SNAP, DOOR LOCK CONTROL LINK
69759-24050

AT210,ST210

 1
Common parts
90105-06083
90105-06120
90467-11038
91635-60625
