ST210R-AEPNK (1996)
Toyota Corona

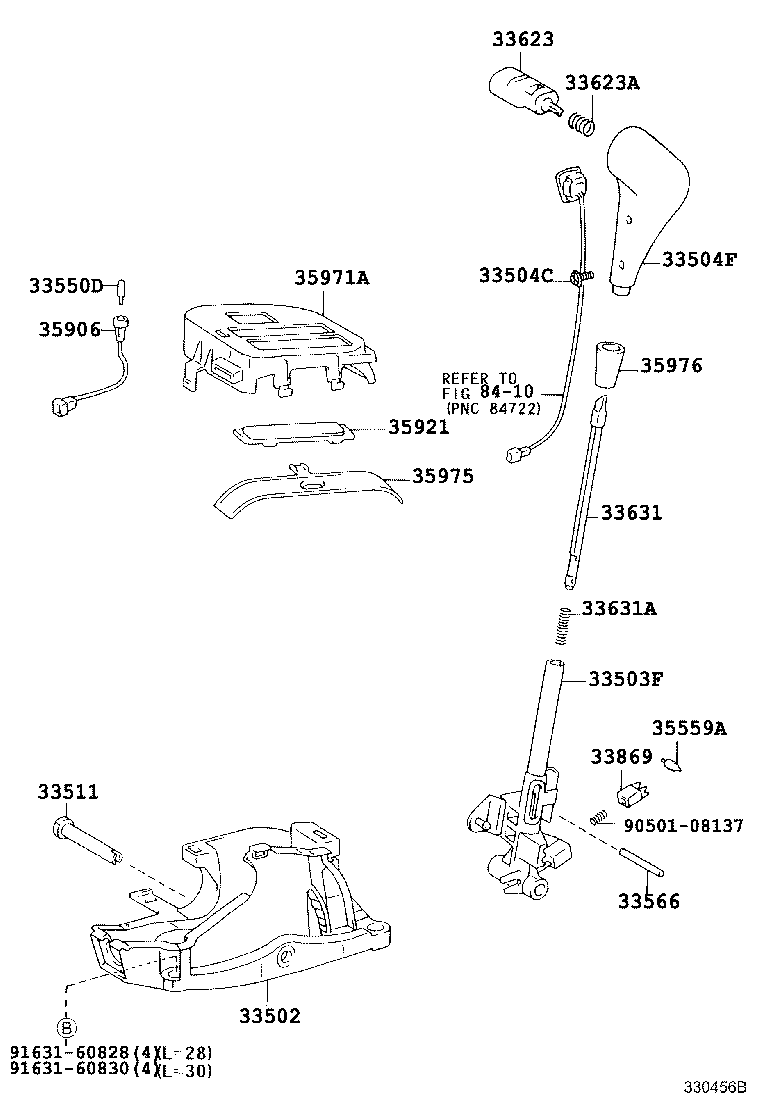

ILLUST NO. 1 OF 2(9601- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33521-20280 |
AT210,ST210..ATM |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-20180 |
AT210,ST210..ATM |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 93339-54008 |
AT210,ST210..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-20180C0 |
AT210,ST210..ATM BLACK,TRIM1#,4# |
1 | ||
| 33542-20180C0 |
AT210,ST210..ATM BLACK,TRIM11,17 |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-16070 |
AT210,ST210..ATM |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11014 |
AT210,ST210..ATM 14V 1.4W |
1 | ||
| 33566 - PIN, SHIFT LEVER STOP | ||||
| 33566-20020 |
AT210,ST210..ATM |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-20080C0 |
AT210,ST210..ATM BLACK,TRIM11,17 |
1 | ||
| 33623-20080C0 |
AT210,ST210..ATM BLACK,TRIM1#,4# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-06088 |
AT210,ST210..ATM |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-20170 |
AT210,ST210..ATM |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-08111 |
AT210,ST210..ATM |
1 | ||
| 33869 - HOLDER, SHIFT LEVER DETENT ROLLER | ||||
| 33869-20020 |
AT210,ST210..ATM |
1 | ||
| 35559A - PIN (FOR MANUAL DETENT SPRING) | ||||
| 90903-61002 |
AT210,ST210..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-20090 |
AT210,ST210..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-20360 |
AT210,ST210..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-20300 |
AT210,ST210..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-20160 |
AT210,ST210..ATM |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-20090C0 |
AT210,ST210..ATM BLACK,TRIM1#,4# |
1 | ||
| 35976-20090C0 |
AT210,ST210..ATM BLACK,TRIM11,17 |
1 | ||
| Common parts | ||||
| 90501-08137 | ||||
| 91631-60828 | ||||
| 91631-60830 | ||||
| Linked diagrams | ||||
| 8410 | ||||

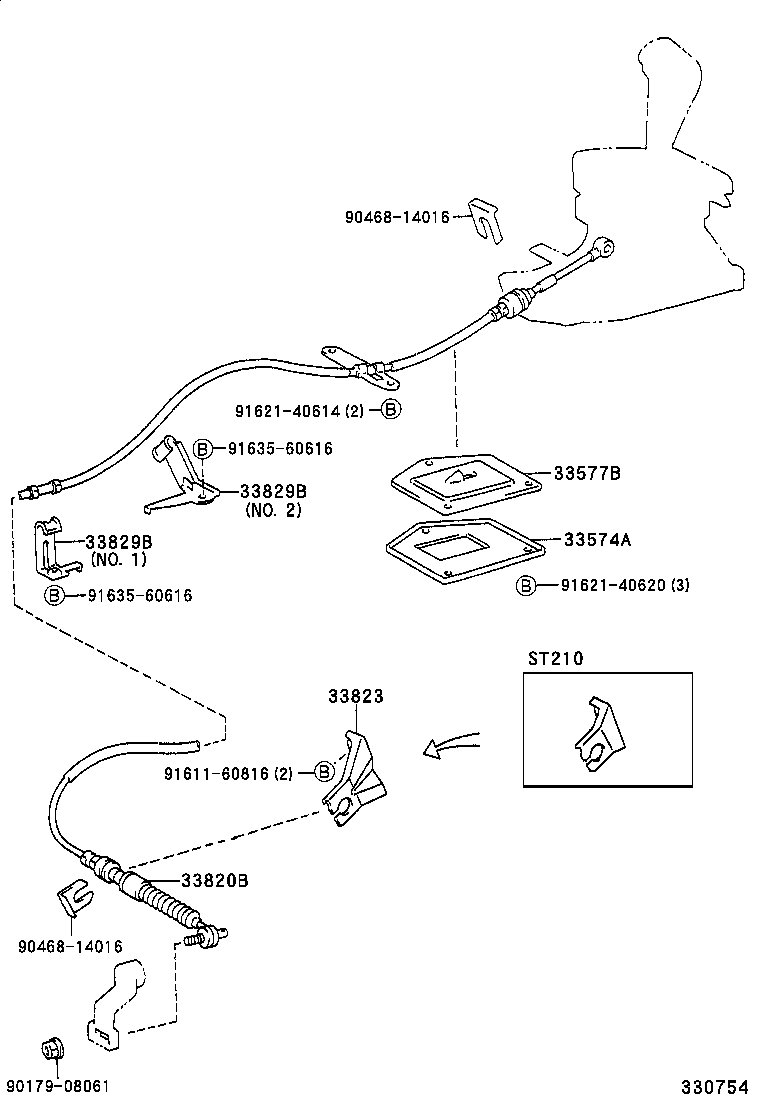

ILLUST NO. 2 OF 2(9601- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-20380 |
AT210,ST210 |
1 | ||
| 33577B - COVER, CONTROL SHAFT HOLE | ||||
| 33577-20020 |
AT210,ST210..ATM |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-2B420 |
AT210,ST210..ATM |
1 | ||
| 33820-2B440 |
ST210 |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-20220 |
ST210 |
1 | ||
| 33823-20200 |
ST210 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-20020 |
AT210,ST210..ATM NO.2 |
1 | ||
| 33829-21090 |
AT210,ST210 NO.1 |
1 | ||
| 33829-20010 |
AT210,ST210..ATM NO.1 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-20020 |
AT210,ST210..ATM NO.2 |
1 | ||
| 33829-21090 |
AT210,ST210 NO.1 |
1 | ||
| 33829-20010 |
AT210,ST210..ATM NO.1 |
1 | ||
| Common parts | ||||
| 90179-08061 | ||||
| 90468-14016 | ||||
| 91611-60816 | ||||
| 91621-40614 | ||||
| 91621-40620 | ||||
| 91635-60616 | ||||
