Toyota Corona ST210 VACUUM PIPING

ST210R-AEPNK (1996)

Toyota Corona

Production Jan 1996 - Dec 2001

Engine 3SFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

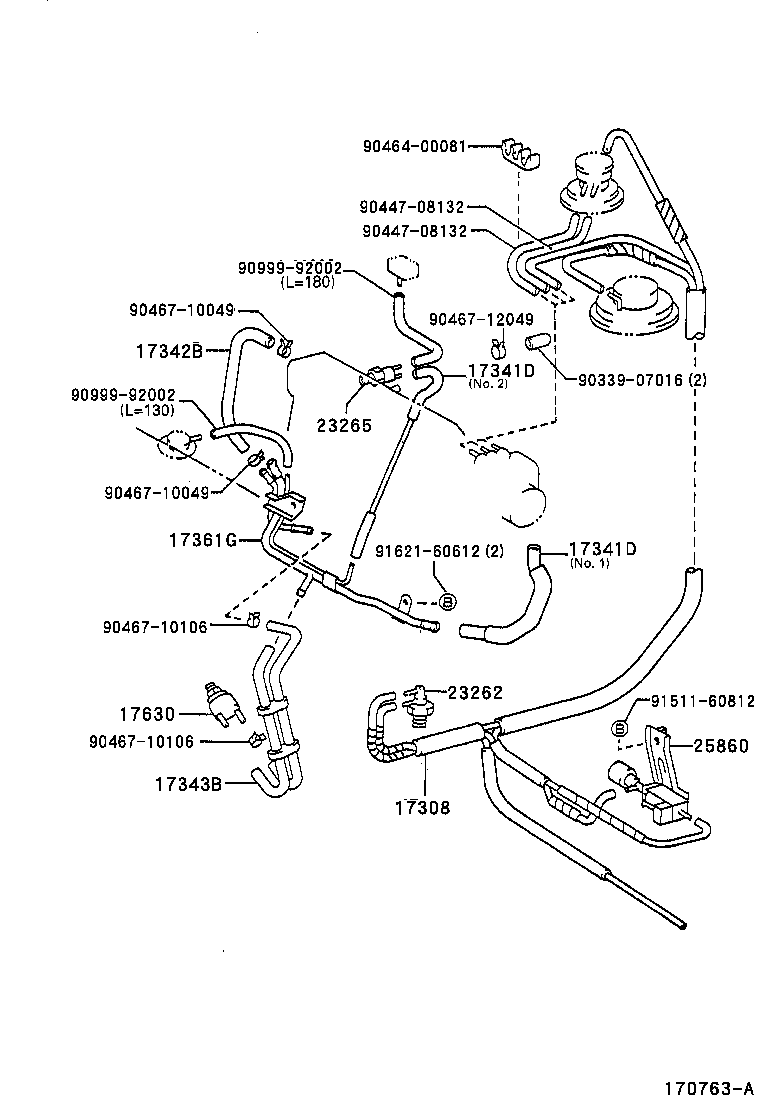

(9601-9712)3SFE

Click highlighted areas on diagram

W(EGR)

Part #	Description	Period	Qty
17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308-74580	3SFE..ST210	12/1997 - 02/1998	1
17308-74481	3SFE..ST210 W(EGR)	01/1996 - 12/1997	1
17308-74620	3SFE..ST210	02/1998 - 12/2999	1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74430	3SFE..ST210 W(EGR),NO.2	01/1996 - 12/1997	1
17341-74340	3SFE..ST210	01/1996 - 07/1996	1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74430	3SFE..ST210 W(EGR),NO.2	01/1996 - 12/1997	1
17341-74340	3SFE..ST210	01/1996 - 07/1996	1
17342B - HOSE, NO.2(FOR IDLE-UP)
17343-74160	3SFE..ST210	01/1996 - 07/1996	1
17343-74130	3SFE..ST210 W(EGR)	01/1996 - 12/1997	1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-74100	3SFE..ST210 W(EGR)	07/1996 - 12/1997	1
17343-74100	3SFE..ST210	01/1996 - 07/1996	1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74180	3SFE..ST210	01/1996 - 07/1996	1
17361-74150	3SFE..ST210 W(EGR)	01/1996 - 12/1997	1
17630 - VALVE ASSY, AIR CONTROL
17630-70020	3SFE..ST210	01/1996 - 07/1996	1
17630-70020	3SFE..ST210 W(EGR)	07/1996 - 12/1997	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05068	3SFE..ST210 W(EGR)	01/1996 - 12/2999	1
23265 - FILTER, GAS, NO.1
90917-11022	3SFE..ST210	01/1996 - 03/1997	1
90917-11023	3SFE..ST210 W(EGR)	01/1996 - 04/1997	1
90917-11042	3SFE..ST210 W(EGR)	04/1997 - 05/1997	1
90917-11039	3SFE..ST210 W(EGR)	05/1997 - 12/1997	1
90917-11037	3SFE..ST210	04/1997 - 12/2999	1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-16200	3SFE..ST210	01/1996 - 12/1997	1
25860-74050	3SFE..ST210 W(EGR)	01/1996 - 12/2999	1
Common parts
90339-07016
90447-08132
90464-00081
90467-10049
90467-10106
90467-12049
90999-92002
91511-60812
91621-60612

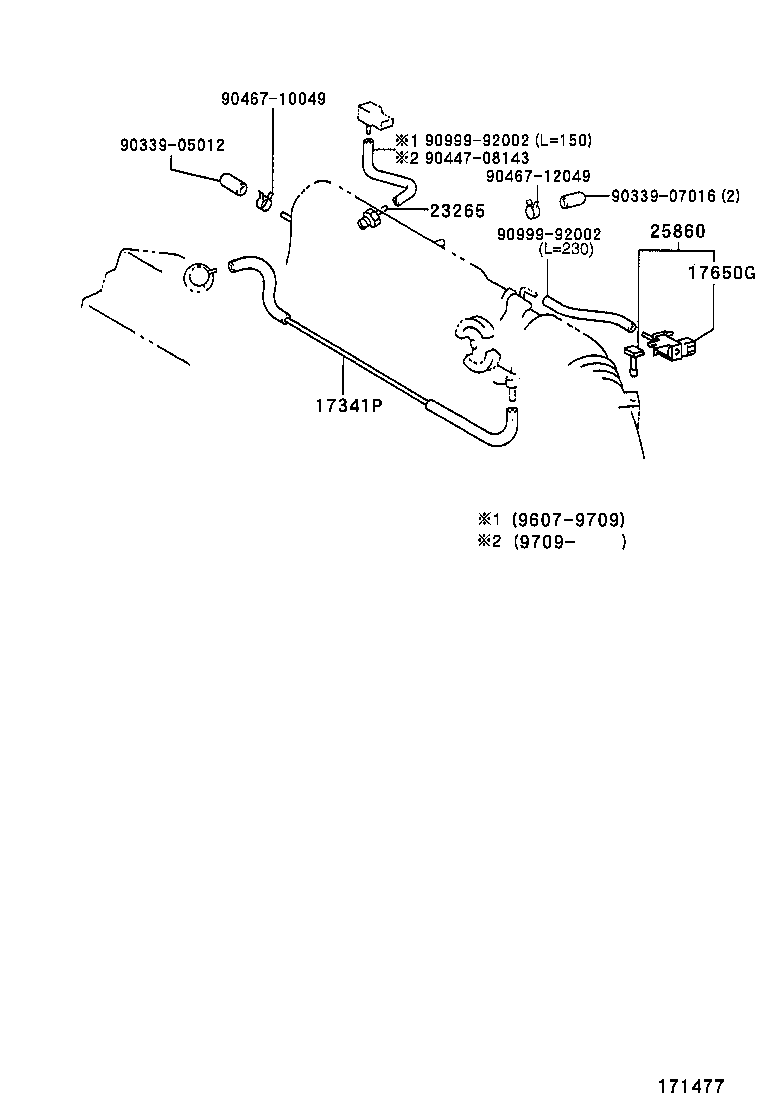

(9607-9712)3SFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
17341P - HOSE, AIR
17341-74730	3SFE..ST210	07/1996 - 12/1997	1
17341-74841	3SFE..ST210	12/1997 - 12/2999	1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12170	3SFE..ST210	01/1996 - 12/1997	1
23265 - FILTER, GAS, NO.1
90917-11022	3SFE..ST210	01/1996 - 03/1997	1
90917-11023	3SFE..ST210 W(EGR)	01/1996 - 04/1997	1
90917-11042	3SFE..ST210 W(EGR)	04/1997 - 05/1997	1
90917-11039	3SFE..ST210 W(EGR)	05/1997 - 12/1997	1
90917-11037	3SFE..ST210	04/1997 - 12/2999	1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-16200	3SFE..ST210	01/1996 - 12/1997	1
25860-74050	3SFE..ST210 W(EGR)	01/1996 - 12/2999	1
Common parts
90339-05012
90339-07016
90447-08143
90467-10049
90467-12049
90999-92002

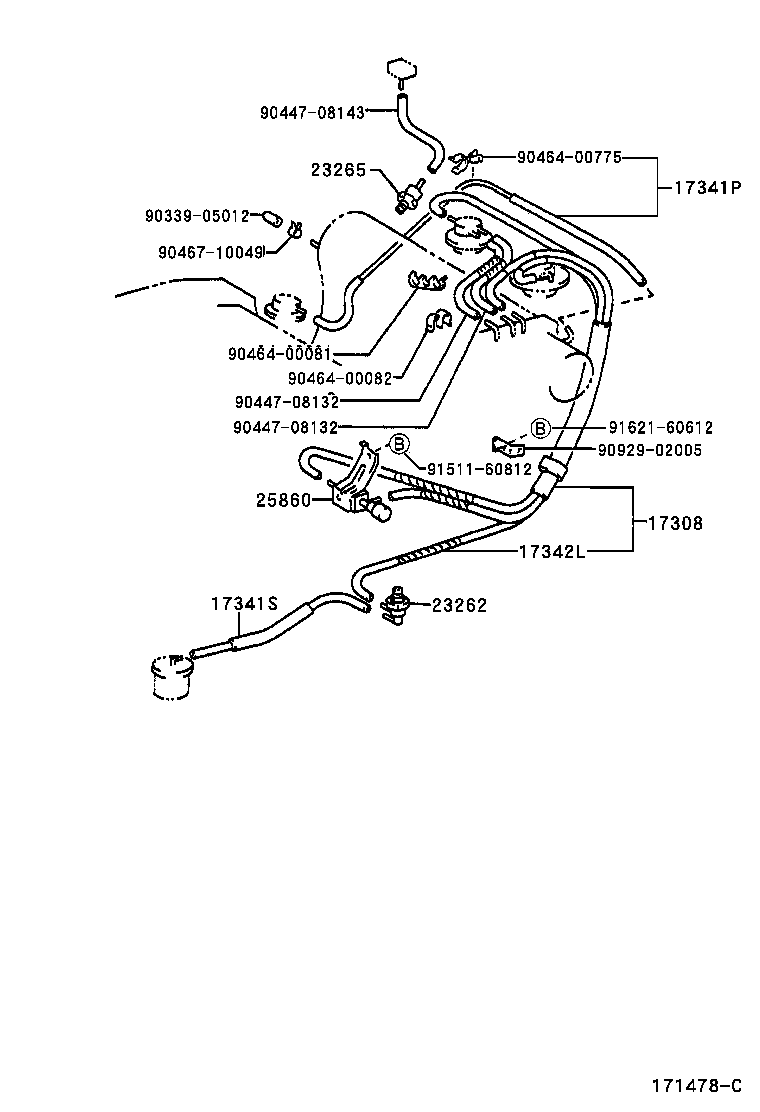

(9712- )3SFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308-74580	3SFE..ST210	12/1997 - 02/1998	1
17308-74481	3SFE..ST210 W(EGR)	01/1996 - 12/1997	1
17308-74620	3SFE..ST210	02/1998 - 12/2999	1
17341P - HOSE, AIR
17341-74730	3SFE..ST210	07/1996 - 12/1997	1
17341-74841	3SFE..ST210	12/1997 - 12/2999	1
17341S - HOSE, AIR
17341-74820	3SFE..ST210	12/1997 - 12/2999	1
17342L - HOSE, AIR, NO.2
17342-74290	3SFE..ST210	12/1997 - 12/2999	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05068	3SFE..ST210 W(EGR)	01/1996 - 12/2999	1
23265 - FILTER, GAS, NO.1
90917-11022	3SFE..ST210	01/1996 - 03/1997	1
90917-11023	3SFE..ST210 W(EGR)	01/1996 - 04/1997	1
90917-11042	3SFE..ST210 W(EGR)	04/1997 - 05/1997	1
90917-11039	3SFE..ST210 W(EGR)	05/1997 - 12/1997	1
90917-11037	3SFE..ST210	04/1997 - 12/2999	1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-16200	3SFE..ST210	01/1996 - 12/1997	1
25860-74050	3SFE..ST210 W(EGR)	01/1996 - 12/2999	1
Common parts
90339-05012
90447-08132
90447-08143
90464-00081
90464-00082
90464-00775
90467-10049
90929-02005
91511-60812
91621-60612

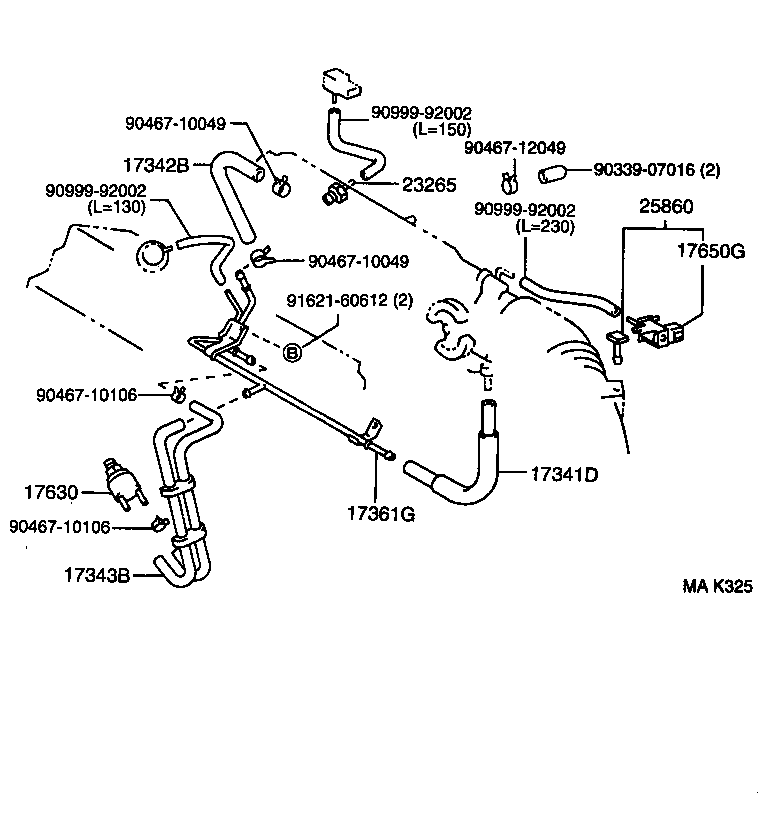

(9601-9607)3SFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74430	3SFE..ST210 W(EGR),NO.2	01/1996 - 12/1997	1
17341-74340	3SFE..ST210	01/1996 - 07/1996	1
17342B - HOSE, NO.2(FOR IDLE-UP)
17343-74160	3SFE..ST210	01/1996 - 07/1996	1
17343-74130	3SFE..ST210 W(EGR)	01/1996 - 12/1997	1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-74100	3SFE..ST210 W(EGR)	07/1996 - 12/1997	1
17343-74100	3SFE..ST210	01/1996 - 07/1996	1
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74180	3SFE..ST210	01/1996 - 07/1996	1
17361-74150	3SFE..ST210 W(EGR)	01/1996 - 12/1997	1
17630 - VALVE ASSY, AIR CONTROL
17630-70020	3SFE..ST210	01/1996 - 07/1996	1
17630-70020	3SFE..ST210 W(EGR)	07/1996 - 12/1997	1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12170	3SFE..ST210	01/1996 - 12/1997	1
23265 - FILTER, GAS, NO.1
90917-11022	3SFE..ST210	01/1996 - 03/1997	1
90917-11023	3SFE..ST210 W(EGR)	01/1996 - 04/1997	1
90917-11042	3SFE..ST210 W(EGR)	04/1997 - 05/1997	1
90917-11039	3SFE..ST210 W(EGR)	05/1997 - 12/1997	1
90917-11037	3SFE..ST210	04/1997 - 12/2999	1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-16200	3SFE..ST210	01/1996 - 12/1997	1
25860-74050	3SFE..ST210 W(EGR)	01/1996 - 12/2999	1
Common parts
90339-07016
90467-10049
90467-10106
90467-12049
90999-92002
91621-60612
