RT132R-TLKDS (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 18R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

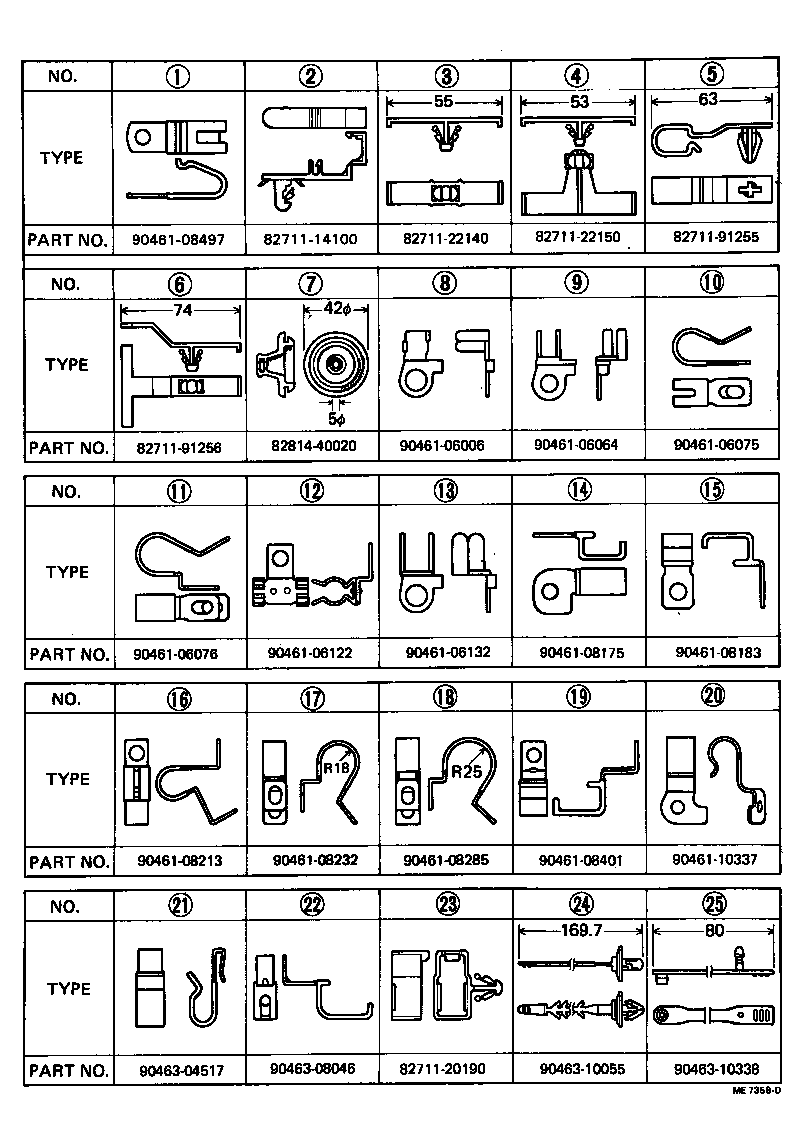

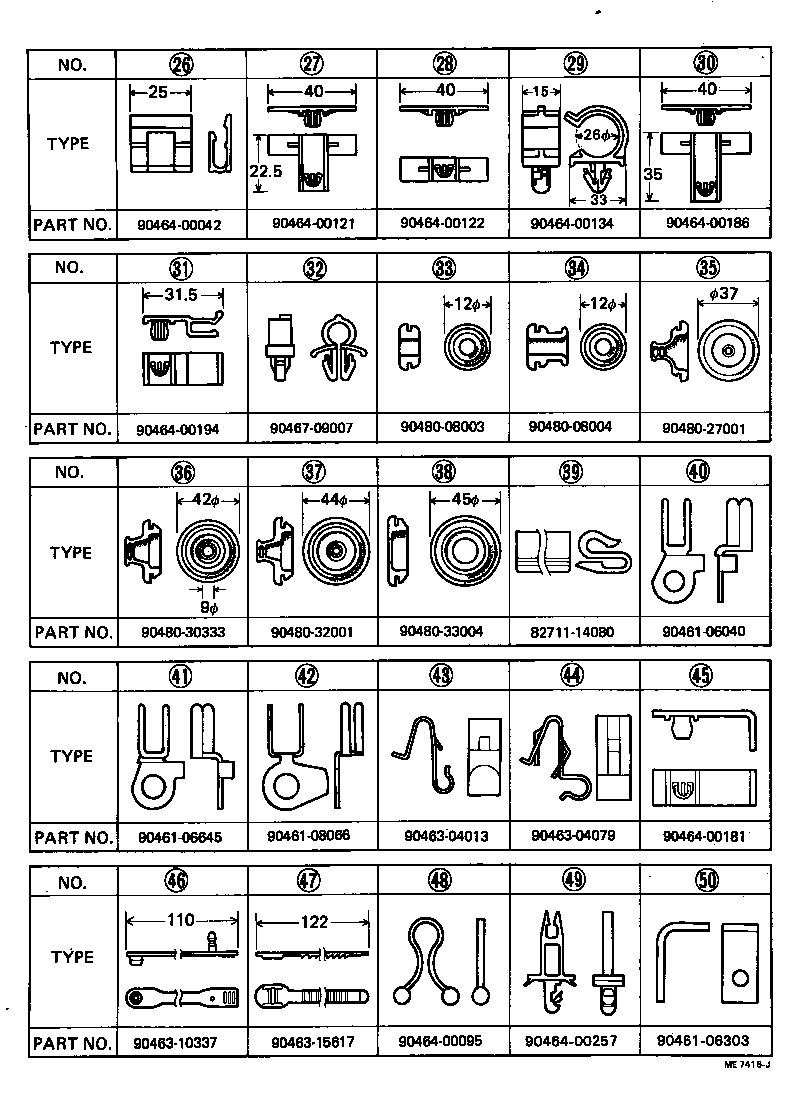

Click highlighted areas on diagram

diagram 8271114100 8271120190 8271122140 8271122150 8271191255 8271191256 8281440020 9046106006 9046106064 9046106075 9046106076 9046106122 9046106132 9046108175 9046108183 9046108213 9046108232 9046108285 9046108401 9046108497 9046110337 9046304517 9046308046 9046310055 9046310338
Part # Description Qty Price
Common parts
82711-14100
82711-20190
82711-22140
82711-22150
82711-91255
82711-91256
82814-40020
90461-06006
90461-06064
90461-06075
90461-06076
90461-06122
90461-06132
90461-08175
90461-08183
90461-08213
90461-08232
90461-08285
90461-08401
90461-08497
90461-10337
90463-04517
90463-08046
90463-10055
90463-10338

(7809-8112)LB

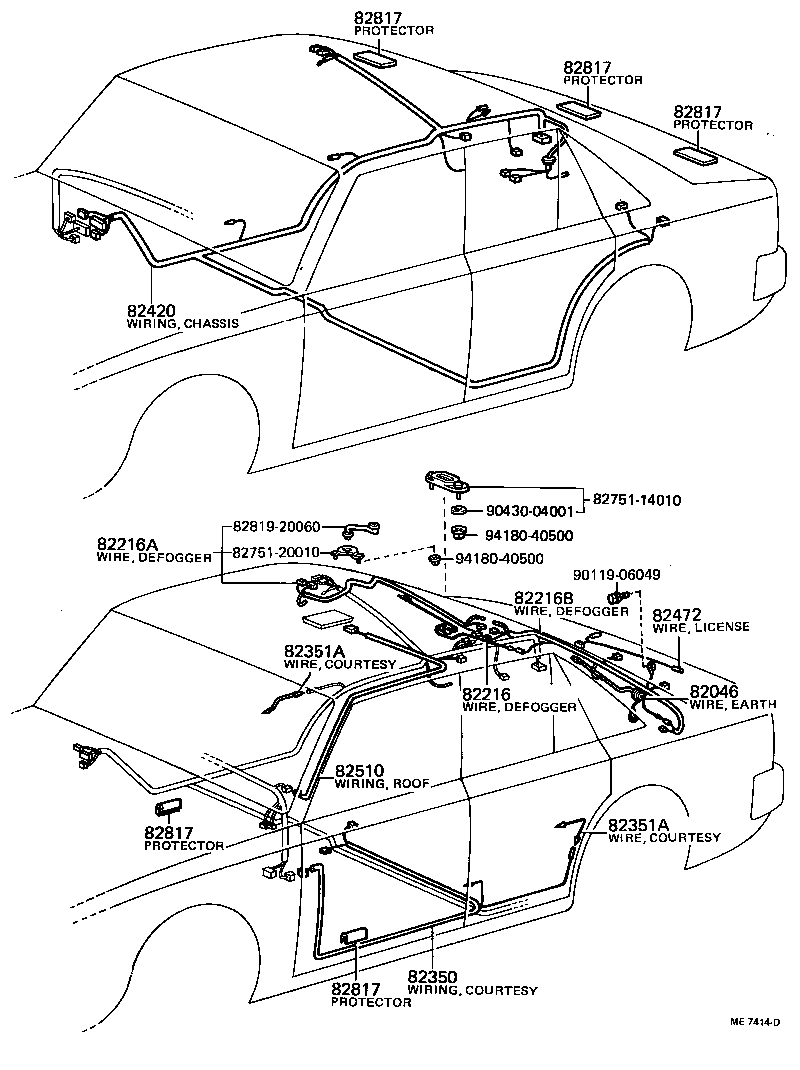

Click highlighted areas on diagram

diagram 82046 82216 82216A 82216B 82350 82351A 82351A 82420 82472 82510 8275114010 8275120010 82817 82817 82817 82817 82817 8281920060 9011906049 9043004001 9418040500 9418040500
Part # Description Qty Price
82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH
82216-20080

RT132,133,TT132..LB

 1
82216 - WIRE, REAR WINDOW DEFOGGER
82216-20080

RT132,133,TT132..LB

 1
82216A - WIRE, REAR WINDOW DEFOGGER
82049-20030

RT132,TT132..LB

 1
82049-20010

RT132,TT132..LB

W/RR WIPER

 1
82049-20011

RT132,TT132..LB

W/RR WIPER

 1
82216B - WIRE SUB-ASSY, REAR WINDOW DEFOGGER
82049-20040

RT132,TT132..LB

 1
82049-20021

RT132,TT132..LB

W/RR WIPER

 1
82049-20020

RT132,TT132..LB

W/RR WIPER

 1
82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR)
82350-20181

RT13#,TT132..LB,SED

 1
82350-20180

RT13#,TT132..LB,SED

 1
82351A - WIRE, COURTESY LAMP SWITCH (FOR FRONT OR REAR DOOR)
82350-20170

RT13#,TT132..LB,SED

 2
82351A - WIRE, COURTESY LAMP SWITCH (FOR FRONT OR REAR DOOR)
82350-20170

RT13#,TT132..LB,SED

 2
82420 - WIRING ASSY, CHASSIS
82420-20311

RT132,TT132..LB

 1
82420-20320

RT132,TT132..LB

W/RR WIPER

 1
82420-20310

RT132,TT132..LB

 1
82420-20321

RT132,TT132..LB

W/RR WIPER

 1
82472 - WIRE, LICENSE LAMP
82214-20012

RT13#,TT132..LB,SED

 1
82214-20011

RT13#,TT132..LB,SED

 1
82510 - WIRING ASSY, ROOF
82510-20190

RT13#,TT13#,XT130..(LB,SED)..RHD

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-21030

RT13#,TT132..LB,SED,WG

L=100

 2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-21030

RT13#,TT132..LB,SED,WG

L=100

 2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-21030

RT13#,TT132..LB,SED,WG

L=100

 2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-21030

RT13#,TT132..LB,SED,WG

L=100

 2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-21030

RT13#,TT132..LB,SED,WG

L=100

 2
Common parts
82751-14010
82751-20010
82819-20060
90119-06049
90430-04001
94180-40500

(7809- )

Click highlighted areas on diagram

diagram 8271114080 9046106040 9046106303 9046106645 9046108066 9046304013 9046304079 9046310337 9046315617 9046400042 9046400095 9046400121 9046400122 9046400134 9046400181 9046400186 9046400194 9046400257 9046709007 9048008003 9048008004 9048027001 9048030333 9048032001 9048033004
Part # Description Qty Price
Common parts
82711-14080
90461-06040
90461-06303
90461-06645
90461-08066
90463-04013
90463-04079
90463-10337
90463-15617
90464-00042
90464-00095
90464-00121
90464-00122
90464-00134
90464-00181
90464-00186
90464-00194
90464-00257
90467-09007
90480-08003
90480-08004
90480-27001
90480-30333
90480-32001
90480-33004

(7809- )RT13#

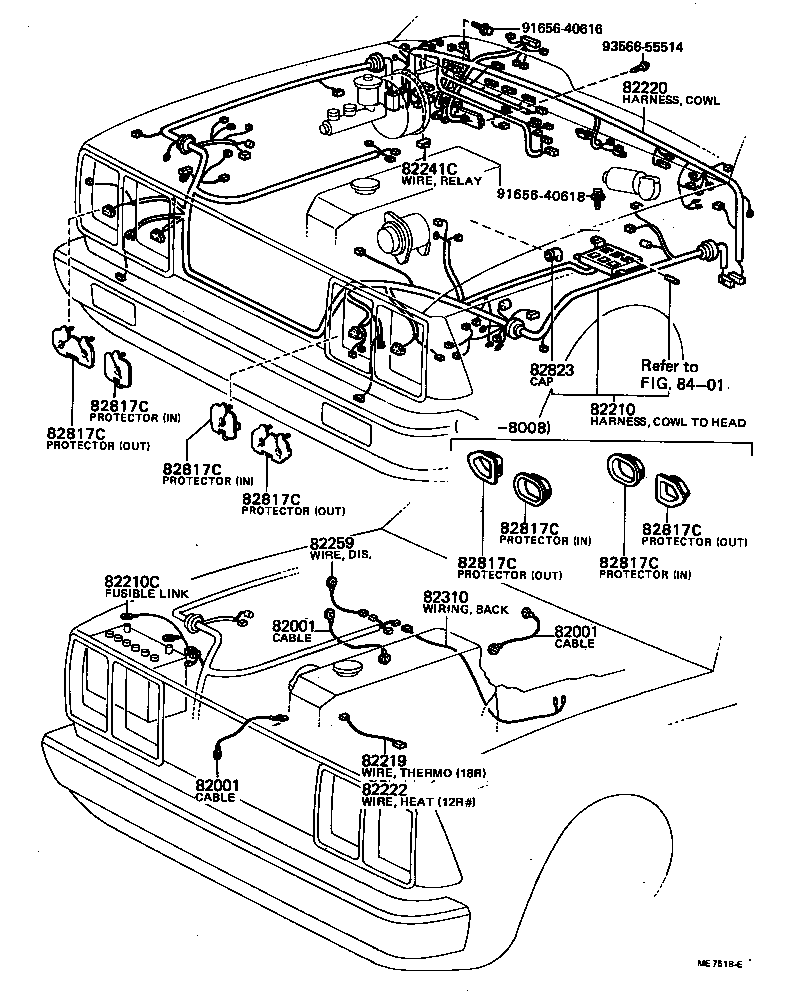

Click highlighted areas on diagram

diagram 82001 82001 82001 82210 82210C 82219 82220 82222 82241C 82259 82310 82817C 82817C 82817C 82817C 82817C 82817C 82817C 82817C 82823 8401 9165640616 9165640618 9356655514
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07031

RT132

L=210

 1
90980-07149

RT13#,TT13#,XT130

L=380

 1
90980-07148

RT133..GL;RT132,TT13#

L=260,MISSION

 1
82001 - CABLE, BOND, NO.1
90980-07031

RT132

L=210

 1
90980-07149

RT13#,TT13#,XT130

L=380

 1
90980-07148

RT133..GL;RT132,TT13#

L=260,MISSION

 1
82001 - CABLE, BOND, NO.1
90980-07031

RT132

L=210

 1
90980-07149

RT13#,TT13#,XT130

L=380

 1
90980-07148

RT133..GL;RT132,TT13#

L=260,MISSION

 1
82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1
82210-2B132

RT132..RHD..GEN

 1
82210-2B131

RT132..RHD

 1
82210C - FUSIBLE LINK
90982-08080

RT13#,TT13#,XT130

 1
82219 - WIRE, THERMO SENSOR
82219-22020

RT132

 1
82220 - HARNESS ASSY, WIRING COWL
82220-21031

RT13#,TT132..RHD..(DLX,STD)

 1
82220-20541

RT132,TT133..RHD..GEN

 1
82241C - WIRE, RELAY
82241-22060

RT13#,TT13#..ARL,GEN,PHL

W/O INTERMITTENT WIPER

 1
82310 - WIRING ASSY, TO BACK UP LAMP SWITCH
82310-14170

TT132..3FC..LEF;RT132,TT132..MTM

 1
82310-14171

RT132,TT13#..MTM

 1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-20130

RT13#,XT130

RH & LH:IN

 2
82817-20140

RT13#,XT130

RH & LH:OUT

 2
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-20130

RT13#,XT130

RH & LH:IN

 2
82817-20140

RT13#,XT130

RH & LH:OUT

 2
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-20130

RT13#,XT130

RH & LH:IN

 2
82817-20140

RT13#,XT130

RH & LH:OUT

 2
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-20130

RT13#,XT130

RH & LH:IN

 2
82817-20140

RT13#,XT130

RH & LH:OUT

 2
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-20130

RT13#,XT130

RH & LH:IN

 2
82817-20140

RT13#,XT130

RH & LH:OUT

 2
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-20130

RT13#,XT130

RH & LH:IN

 2
82817-20140

RT13#,XT130

RH & LH:OUT

 2
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-20130

RT13#,XT130

RH & LH:IN

 2
82817-20140

RT13#,XT130

RH & LH:OUT

 2
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-20130

RT13#,XT130

RH & LH:IN

 2
82817-20140

RT13#,XT130

RH & LH:OUT

 2
82823 - CAP, TERMINAL, NO.1
82823-22020

RT13#,TT13#

ALTERNATOR

 1
Common parts
91656-40616
91656-40618
93566-55514
Linked diagrams
8401
