RT132R-TLKDS (1978)
Toyota Corona

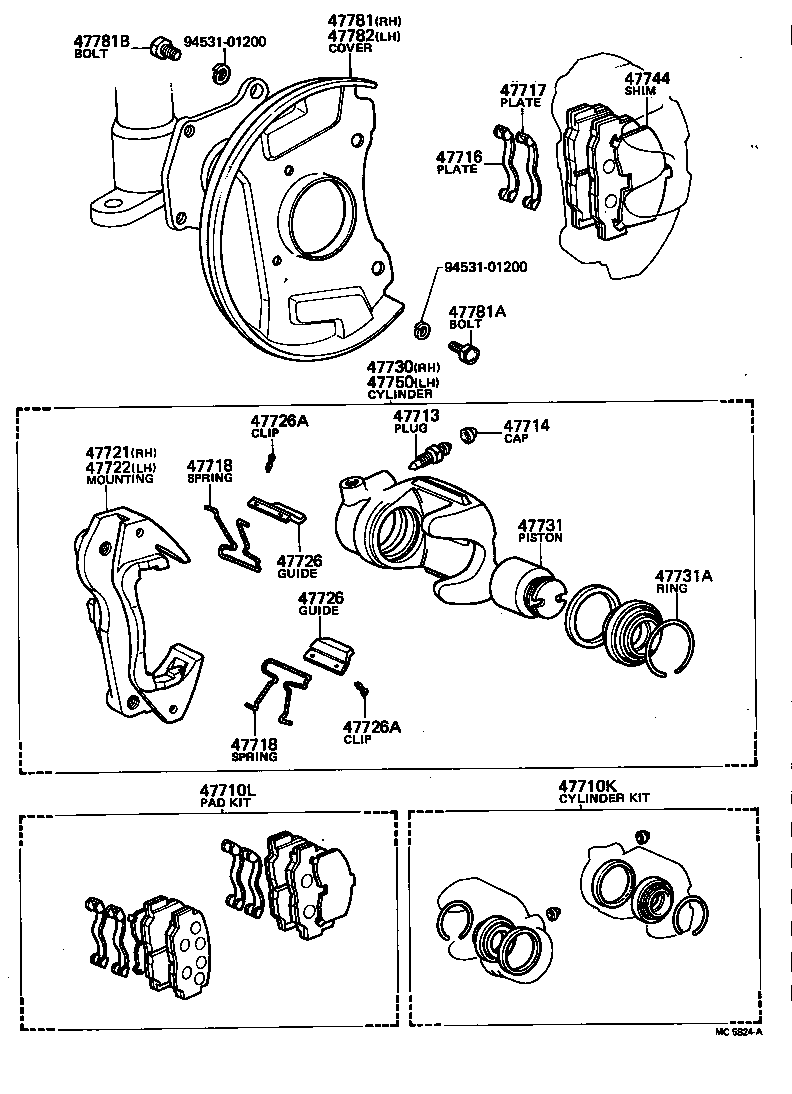

ILLUST NO. 1 OF 2(7809-7909)RT132..LNK ; (7809-8112)RT130,TT13#..GEN,PHL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47710K - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-14010 |
RT13#..GEN;RT130..WG..PHL;RT130..LNK..PHL |
1 | ||
| 04479-14010 |
RT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL |
1 | ||
| 04479-14010 |
RT130..WG;RT13#..(3FC,4F)..LNK |
1 | ||
| 47710L - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-20051 |
RT132..LNK..GEN |
1 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12020 |
RT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL |
1 | ||
| 47547-12020 |
RT13#..GEN;RT130..WG..PHL;RT130..LNK..PHL |
1 | ||
| 47547-12020 |
RT130..WG;RT13#..(3FC,4F)..LNK |
1 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
RT13#,TT13# |
2 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-14010 |
RT13#..GEN;RT130..WG..PHL;RT130..LNK..PHL |
1 | ||
| 47716-14010 |
RT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL |
1 | ||
| 47716-14010 |
RT130..WG;RT13#..(3FC,4F)..LNK |
1 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47716-14010 |
RT13#..GEN;RT130..WG..PHL;RT130..LNK..PHL |
1 | ||
| 47716-14010 |
RT130..WG;RT13#..(3FC,4F)..LNK |
1 | ||
| 47716-14010 |
RT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL |
1 | ||
| 47718 - SPRING, FRONT DISC BRAKE CYLINDER SUPPORT | ||||
| 47718-14010 |
RT13#..GEN;RT130..WG..PHL;RT130..LNK..PHL |
4 | ||
| 47718-14010 |
RT130..WG;RT13#..(3FC,4F)..LNK |
4 | ||
| 47718-14010 |
RT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL |
4 | ||
| 47718 - SPRING, FRONT DISC BRAKE CYLINDER SUPPORT | ||||
| 47718-14010 |
RT13#..GEN;RT130..WG..PHL;RT130..LNK..PHL |
4 | ||
| 47718-14010 |
RT130..WG;RT13#..(3FC,4F)..LNK |
4 | ||
| 47718-14010 |
RT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-20050 |
RT130..WG;RT13#..(3FC,4F)..LNK |
1 | ||
| 47721-20050 |
RT13#..GEN;RT130..WG..PHL;RT130..LNK..PHL |
1 | ||
| 47721-20050 |
RT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-20050 |
RT13#..GEN;RT130..WG..PHL;RT130..LNK..PHL |
1 | ||
| 47722-20050 |
RT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL |
1 | ||
| 47722-20050 |
RT130..WG;RT13#..(3FC,4F)..LNK |
1 | ||
| 47726 - GUIDE, FRONT DISC BRAKE CYLINDER | ||||
| 47726-14010 |
RT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL |
4 | ||
| 47726-14010 |
RT130..WG;RT13#..(3FC,4F)..LNK |
4 | ||
| 47726-14010 |
RT13#..GEN;RT130..WG..PHL;RT130..LNK..PHL |
4 | ||
| 47726 - GUIDE, FRONT DISC BRAKE CYLINDER | ||||
| 47726-14010 |
RT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL |
4 | ||
| 47726-14010 |
RT130..WG;RT13#..(3FC,4F)..LNK |
4 | ||
| 47726-14010 |
RT13#..GEN;RT130..WG..PHL;RT130..LNK..PHL |
4 | ||
| 47726A - CLIP(FOR FRONT DISC BRAKE CYLINDER) | ||||
| 90468-12134 |
RT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL |
8 | ||
| 90468-12134 |
RT13#..GEN;RT130..WG..PHL;RT130..LNK..PHL |
8 | ||
| 90468-12134 |
RT130..WG;RT13#..(3FC,4F)..LNK |
8 | ||
| 47726A - CLIP(FOR FRONT DISC BRAKE CYLINDER) | ||||
| 90468-12134 |
RT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL |
8 | ||
| 90468-12134 |
RT13#..GEN;RT130..WG..PHL;RT130..LNK..PHL |
8 | ||
| 90468-12134 |
RT130..WG;RT13#..(3FC,4F)..LNK |
8 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-20100 |
RT130..WG;RT13#..(3FC,4F)..LNK |
1 | ||
| 47730-20100 |
RT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL |
1 | ||
| 47730-20100 |
RT13#..GEN;RT130..WG..PHL;RT130..LNK..PHL |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-20030 |
RT13#..GEN;RT130..WG..PHL;RT130..LNK..PHL |
2 | ||
| 47731-20030 |
RT130..WG;RT13#..(3FC,4F)..LNK |
2 | ||
| 47731-20030 |
RT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-54038 |
RT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL |
2 | ||
| 90522-54038 |
RT130..WG;RT13#..(3FC,4F)..LNK |
2 | ||
| 90522-54038 |
RT13#..GEN;RT130..WG..PHL;RT130..LNK..PHL |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-14011 |
RT13#..GEN;RT130..WG..PHL;RT130..LNK..PHL |
2 | ||
| 47744-14011 |
RT130..WG;RT13#..(3FC,4F)..LNK |
2 | ||
| 47744-14011 |
RT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-20090 |
RT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL |
1 | ||
| 47750-20090 |
RT130..WG;RT13#..(3FC,4F)..LNK |
1 | ||
| 47750-20090 |
RT13#..GEN;RT130..WG..PHL;RT130..LNK..PHL |
1 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-20070 |
RT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL |
1 | ||
| 47781-20070 |
RT130..WG;RT13#..(3FC,4F)..LNK |
1 | ||
| 47781-20070 |
RT13#..GEN;RT130..WG..PHL;RT130..LNK..PHL |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90101-08341 |
RT133..GL;RT130,132,TT13# |
4 | ||
| 47781B - BOLT(FOR DUST COVER SETTING) | ||||
| 90101-12018 |
RT13#..GEN;RT130..WG..PHL;RT130..LNK..PHL |
4 | ||
| 90101-12018 |
RT130..WG;RT13#..(3FC,4F)..LNK |
4 | ||
| 90101-12018 |
RT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL |
4 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-20070 |
RT130..WG;RT13#..(3FC,4F)..LNK |
1 | ||
| 47782-20070 |
RT13#..GEN;RT130..WG..PHL;RT130..LNK..PHL |
1 | ||
| 47782-20070 |
RT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL |
1 | ||
| Common parts | ||||
| 94531-01200 | ||||
ILLUST NO. 2 OF 2(7809- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-14240 |
RT132..LNK..GEN |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-14100 |
RT132..LNK..GEN |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-14040 |
RT132..LNK..GEN |
1 | ||
