RT132R-TLKDS (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 18R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8112)

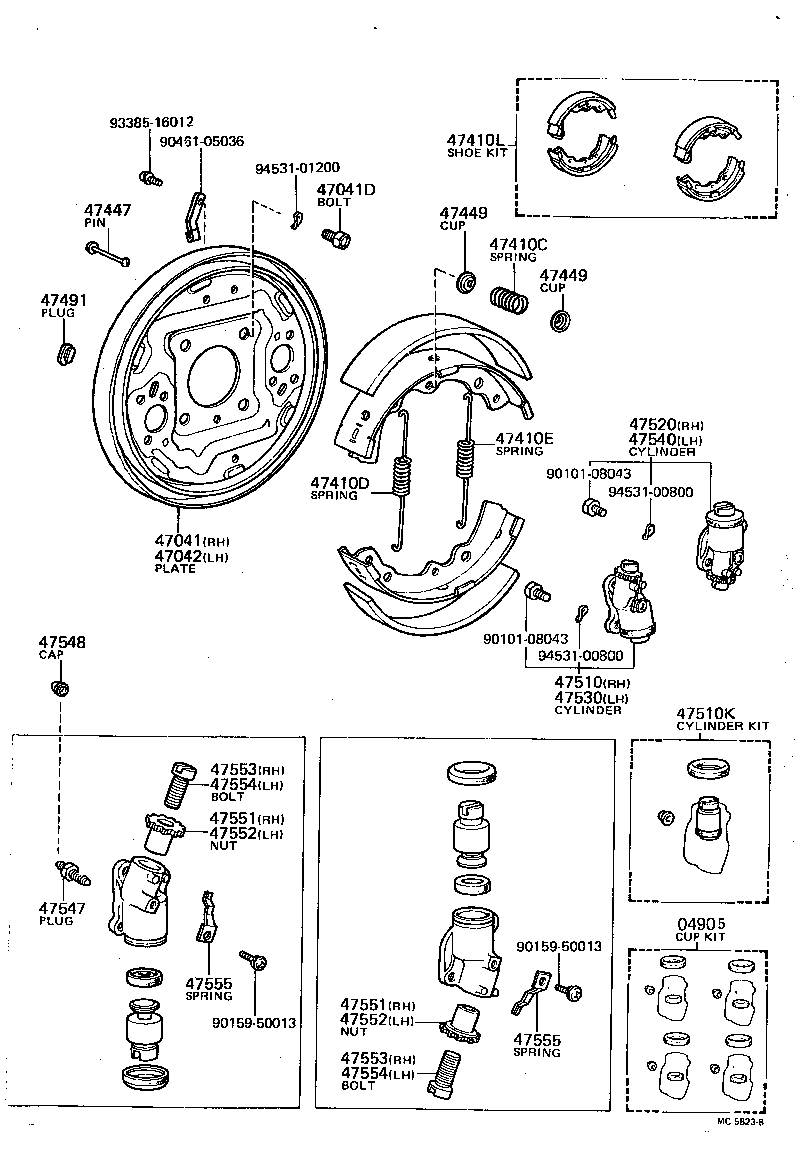

Click highlighted areas on diagram

diagram 04905 47041 47041D 47042 47410C 47410D 47410E 47410L 47447 47449 47449 47491 47510 47510K 47520 47530 47540 47547 47548 47551 47551 47552 47552 47553 47553 47554 47554 47555 47555 9010108043 9010108043 9015950013 9015950013 9046105036 9338516012 9453100800 9453100800 9453101200
Part # Description Qty Price
04905 - CUP KIT, FRONT WHEEL CYLINDER
04905-20050

RT13#

 1
Common parts
90101-08043
90159-50013
90461-05036
93385-16012
94531-00800
94531-01200
