RT132R-TLHNSQ (1980)

Toyota Corona

Production Mar 1980 - Aug 1981
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8008)LB

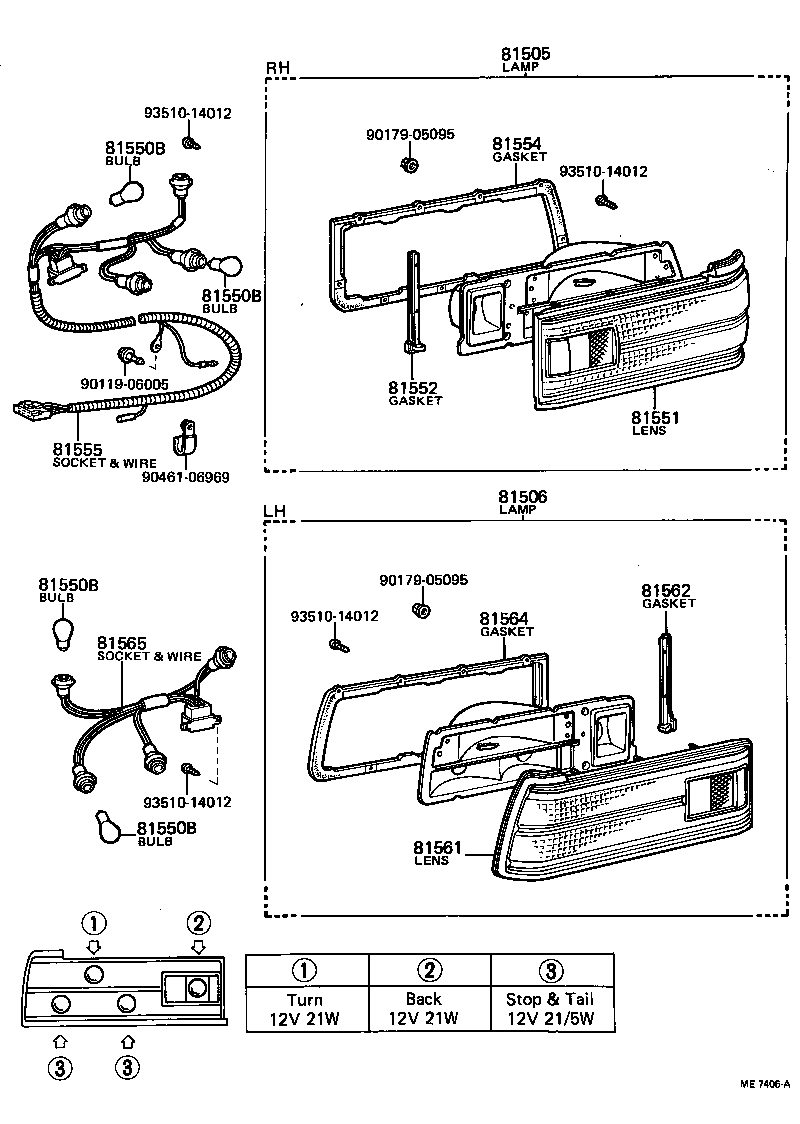

Click highlighted areas on diagram

diagram 81505 81506 81550B 81550B 81550B 81550B 81551 81552 81554 81555 81561 81562 81564 81565 9011906005 9017905095 9017905095 9046106969 9351014012 9351014012 9351014012 9351014012
Part # Description Qty Price
81505 - LAMP SUB-ASSY, REAR COMBINATION, RH
81505-29185

RT132,TT132..LB

 1
81506 - LAMP SUB-ASSY, REAR COMBINATION, LH
81506-29105

RT132,TT132..LB

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

RT13#,TT13#,XT130..LB,SED

12V 21W,12V 21W

 4
99132-21210

RT13#,TT132;TT133,XT130..SED

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

RT13#,TT13#,XT130..LB,SED

12V 21W,12V 21W

 4
99132-21210

RT13#,TT132;TT133,XT130..SED

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

RT13#,TT13#,XT130..LB,SED

12V 21W,12V 21W

 4
99132-21210

RT13#,TT132;TT133,XT130..SED

12V 21/5W,12V 21/5W

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

RT13#,TT13#,XT130..LB,SED

12V 21W,12V 21W

 4
99132-21210

RT13#,TT132;TT133,XT130..SED

12V 21/5W,12V 21/5W

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-20540

RT132,TT132..LB

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81554-20540

RT132,TT132..LB

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-20540

RT132,TT132..LB

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-20550

RT132,TT132..LB

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-20480

RT132,TT132..LB

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81564-20480

RT132,TT132..LB

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81552-20540

RT132,TT132..LB

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-20490

RT132,TT132..LB

 1
Common parts
90119-06005
90179-05095
90461-06969
93510-14012
