RT132R-TLHNSQ (1980)
Toyota Corona
Production
Mar 1980
-
Aug 1981
Engine
18RC
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7809-8008) ; (8008-8111)XT130

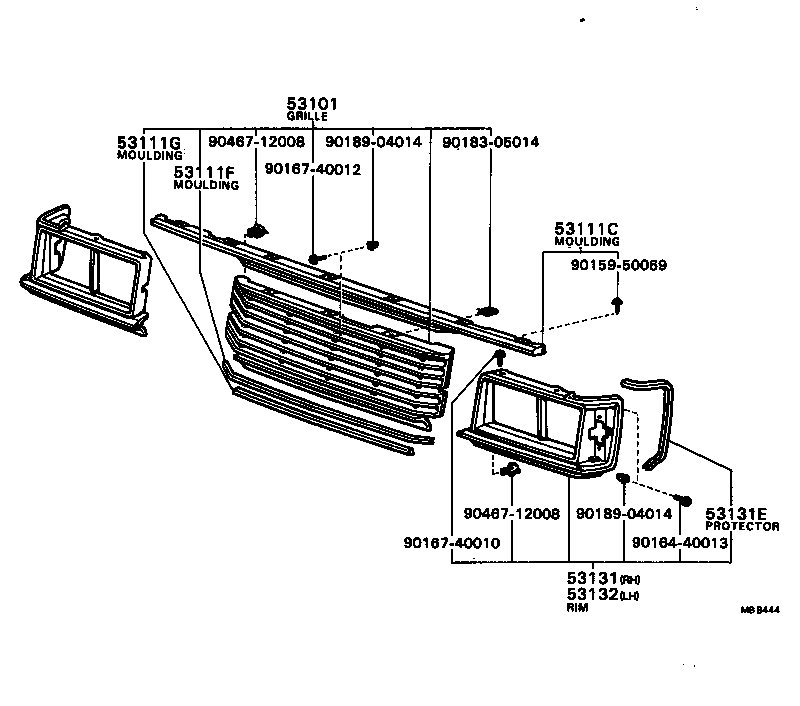

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53101-29075 |
XT130;RT13#,TT13#..DLX,GL |
1 | ||
| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53101-29075 |
XT130;RT13#,TT13#..DLX,GL |
1 | ||
| 53111C - MOULDING, RADIATOR GRILLE, UPPER | ||||
| 53121-20070 |
XT130;RT13#,TT13#..DLX,GL |
1 | ||
| 53111G - MOULDING, RADIATOR GRILLE, LOWER | ||||
| 53122-20050 |
XT130;RT13#,TT13#..DLX,GL |
1 | ||
| 53131 - RIM, HEADLAMP, RH | ||||
| 53131-29125 |
RT13#,TT13#,XT130..LB,SED,WG RECTANGULAR TYPE |
1 | ||
| 53131 - RIM, HEADLAMP, RH | ||||
| 53131-29125 |
RT13#,TT13#,XT130..LB,SED,WG RECTANGULAR TYPE |
1 | ||
| 53131E - PROTECTOR, HEADLAMP DOOR | ||||
| 53139-20010 |
RT13#,TT13#,XT130 |
2 | ||
| 53131E - PROTECTOR, HEADLAMP DOOR | ||||
| 53139-20010 |
RT13#,TT13#,XT130 |
2 | ||
| 53132 - RIM, HEADLAMP, LH | ||||
| 53132-29105 |
RT13#,TT13#,XT130..LB,SED,WG RECTANGULAR TYPE |
1 | ||
| 53132 - RIM, HEADLAMP, LH | ||||
| 53132-29105 |
RT13#,TT13#,XT130..LB,SED,WG RECTANGULAR TYPE |
1 | ||
| Common parts | ||||
| 90164-40024 | ||||
| 90167-40010 | ||||
| 90167-40012 | ||||
| 90189-04014 | ||||
| 90209-03001 | ||||
| 90467-12008 | ||||
(8008- )RT13#,TT13# ; (8111- )XT130
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53101-29075 |
XT130;RT13#,TT13#..DLX,GL |
1 | ||
| 53111C - MOULDING, RADIATOR GRILLE, UPPER | ||||
| 53121-20070 |
XT130;RT13#,TT13#..DLX,GL |
1 | ||
| 53111G - MOULDING, RADIATOR GRILLE, LOWER | ||||
| 53122-20050 |
XT130;RT13#,TT13#..DLX,GL |
1 | ||
| 53131 - RIM, HEADLAMP, RH | ||||
| 53131-29125 |
RT13#,TT13#,XT130..LB,SED,WG RECTANGULAR TYPE |
1 | ||
| 53131E - PROTECTOR, HEADLAMP DOOR | ||||
| 53139-20010 |
RT13#,TT13#,XT130 |
2 | ||
| 53132 - RIM, HEADLAMP, LH | ||||
| 53132-29105 |
RT13#,TT13#,XT130..LB,SED,WG RECTANGULAR TYPE |
1 | ||
| Common parts | ||||
| 90159-50069 | ||||
| 90164-40013 | ||||
| 90167-40010 | ||||
| 90167-40012 | ||||
| 90183-05014 | ||||
| 90189-04014 | ||||
| 90467-12008 | ||||
