RT132R-TLHNSQ (1980)

Toyota Corona

Production Mar 1980 - Aug 1981
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )18RC

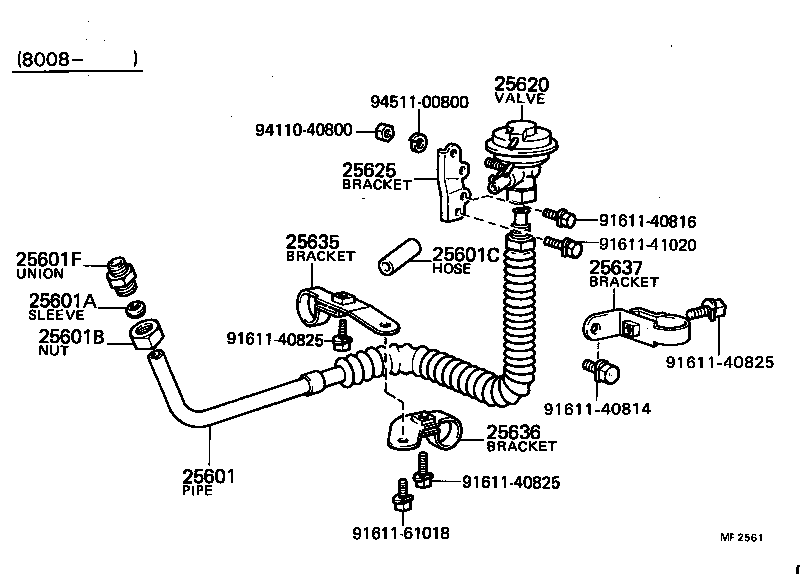

Click highlighted areas on diagram

diagram 25601 25601A 25601B 25601C 25601F 25620 25625 25635 25636 25637 9161140814 9161140816 9161140825 9161140825 9161140825 9161141020 9161161018 9411040800 9451100800
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-34021

18RC..RT132

 1
25601-34020

18RC..RT132

 1
25620 - VALVE ASSY, EGR
25620-34150

18RC..RT132..3FC

 1
25635 - BRACKET, EGR PIPE, NO.1
25635-34010

18RC..RT132

 1
25636 - BRACKET, EGR PIPE, NO.2
25636-34010

18RC..RT132

 1
25637 - BRACKET, EGR PIPE, NO.3
25637-34010

18RC..RT132

 1
Common parts
91611-40814
91611-40816
91611-40825
91611-41020
91611-61018
94110-40800
94511-00800
