RT132R-TEKDS (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
18R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809-8205)18R#

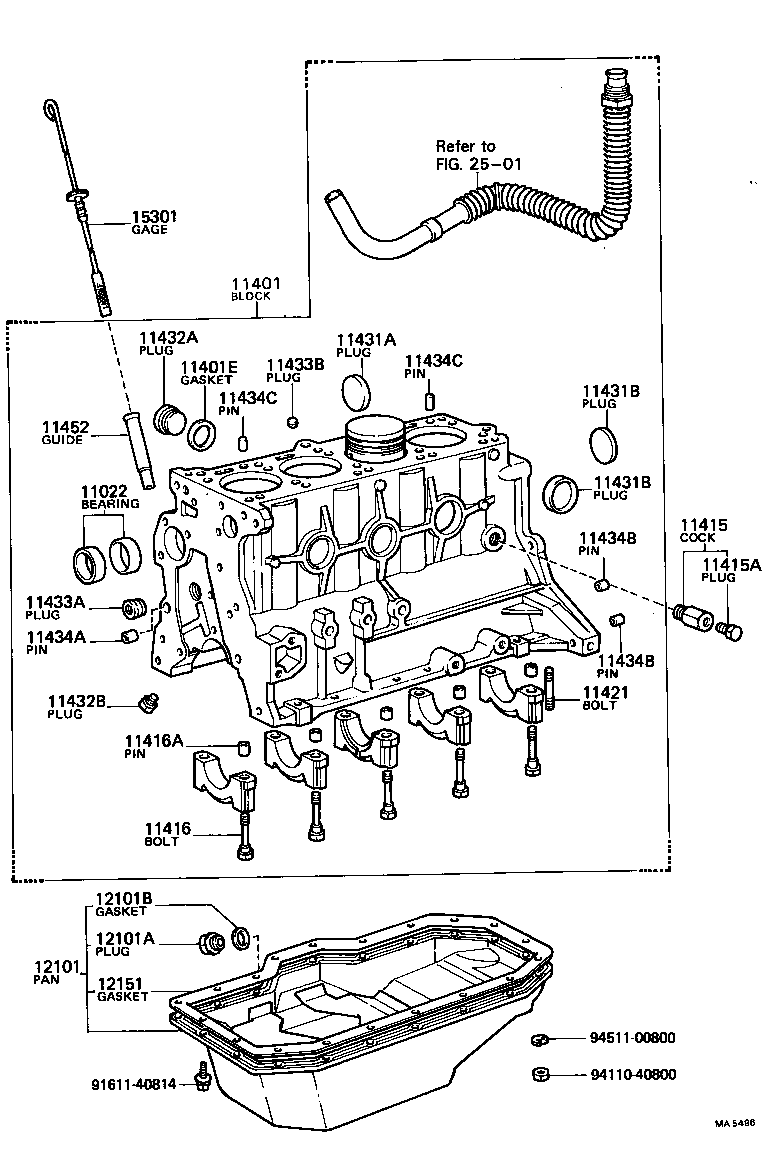

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11022 - BEARING SET, PUMP DRIVE SHAFT | ||||
| 11022-33010 |
18R#..RT132 |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-39285 |
18R#..RT132 |
1 | ||
| 11401E - GASKET(FOR CYLINDER BLOCK PLUG) | ||||
| 90430-32052 |
18R#..RT132 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-03833 |
12R#,18R#..RT13# |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96431-23814 |
21RC,12R#,18R#..RT13# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02042 |
21RC,18R#..RT132,133 |
10 | ||
| 11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90253-16014 |
18R#..RT132 |
10 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 92122-40814 |
21RC,18R#..RT132,133 |
3 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-44500 |
18R#..RT132 |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
21RC,18R#..RT132,133 OD=40 |
6 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-44000 |
21RC,18R#..RT132,133 OD=40 |
6 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90341-32038 |
18R#..RT132 |
1 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90072-34107 |
18R#..RT132 |
1 | ||
| 11433A - PLUG, STRAIGHT, NO.1 | ||||
| 90344-53011 |
12R#,18R#..RT13# |
2 | ||
| 90344-53008 |
18R#..RT132 |
2 | ||
| 11433B - PLUG, STRAIGHT, NO.2 | ||||
| 90334-09015 |
18R#..RT132 L=4,OD=9 |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90253-11001 |
18R#..RT132 L=11,OD=11,L=11,OD=11 |
4 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90253-17012 |
18R#..RT132 L=16,OD=17 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90253-17012 |
18R#..RT132 L=16,OD=17 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 |
21RC,18R#..RT132,133 L=18,OD=8,L=18,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 |
21RC,18R#..RT132,133 L=18,OD=8,L=18,OD=8 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-40010 |
18R..RT132 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-39206 |
18R#..RT132 |
1 | ||
| 12101-39205 |
18R#..RT132 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
21RC,12R#,18R#..RT13# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18244 |
21RC,12R#,18R#..RT13# |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-33010 |
18R#..RT132 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-33013 |
18R#..RT132 |
1 | ||
| Common parts | ||||
| 91611-40814 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| Linked diagrams | ||||
| 2501 | ||||
