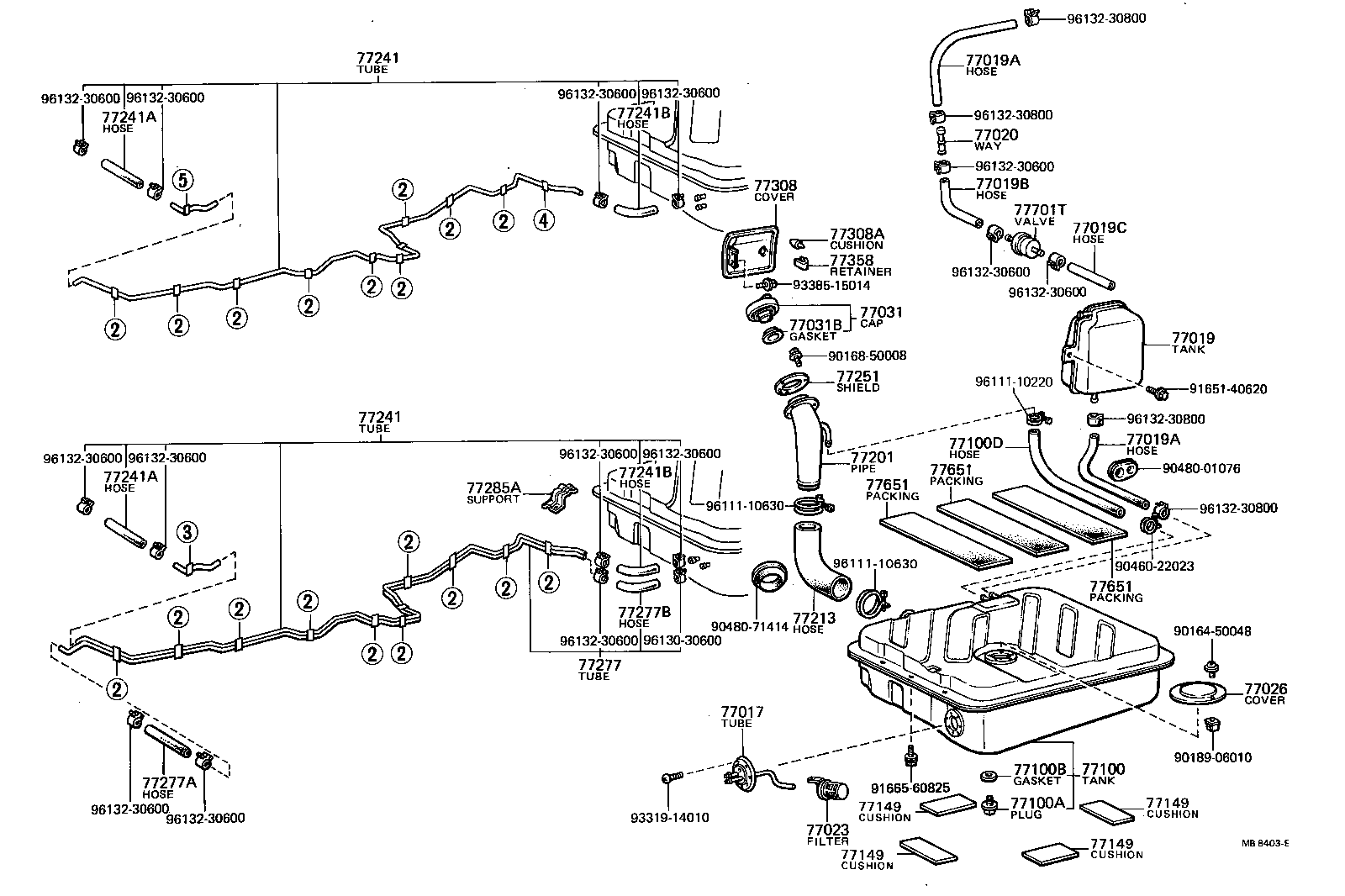

Toyota Corona RT132 FUEL TANK & TUBE

Part #	Description	Period	Qty
77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77017-91257	RT132,XT130..WG;TT132..3FC..LEF W/FUEL RETURN TUBE	09/1978 - 01/1980	1
77019 - TANK SUB-ASSY, FUEL EXPANSION
77191-21010	RT130,132,TT13#,XT130..WG	09/1978 - 01/1983	1
77019A - HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK)
95332-08046	RT13#,TT132..WG *H,L=460,ID=7.6	09/1978 - 06/1979	2
77019A - HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK)
95332-08046	RT13#,TT132..WG *H,L=460,ID=7.6	09/1978 - 06/1979	2
77019B - HOSE, FUEL, NO.2(FOR FUEL EXPANSION TANK)
95332-06026	RT13#,TT132..WG *H,L=260	09/1978 - 04/1979	1
95332-06030	RT130,132,TT13#..WG *H,L=260	04/1979 - 05/1982	1
77019C - HOSE, FUEL, NO.3(FOR FUEL EXPANSION TANK)
95332-06010	RT130,132,TT13#..WG *H,L=100	09/1978 - 05/1982	1
77020 - WAY, 2(FOR FUEL EXPANSION TANK)
90412-08001	RT130,132,TT13#,XT130..WG	09/1978 - 01/1983	1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-12050	RT13#,TT13#,XT130	09/1978 - 01/1983	1
77026 - COVER SUB-ASSY, FUEL SENDER GAGE
77029-91600	RT130,132,TT13#,XT130..WG	09/1978 - 01/1983	1
77031 - CAP ASSY, FUEL TANK
77310-12090	RT13#,TT13#,XT130	07/1979 - 08/1981	1
77310-14070	RT13#,TT132	09/1978 - 07/1979	1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12050	RT13#,TT13#,XT130	09/1978 - 01/1983	1
77100 - TANK ASSY, FUEL
77001-91259	RT13#,TT132..WG	09/1978 - 03/1979	1
77001-91261	RT13#,TT13#,XT130..WG	03/1979 - 11/1979	1
77001-91264	RT132,TT13#,XT130..WG	11/1979 - 01/1980	1
77100A - PLUG(FOR FUEL TANK)
90105-12018	RT130,132,TT13#,XT130..WG	09/1978 - 01/1983	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	RT130,132,TT13#,XT130..WG	09/1978 - 01/1983	1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
90445-22012	RT130,132,TT13#,XT130..WG L=490	09/1978 - 01/1983	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-91257	RT13#,TT132..WG	09/1978 - 08/1979	1
77213 - HOSE, FUEL TANK SUB INLET
77213-91256	RT13#,TT13#,XT130..WG	09/1978 - 11/1979	1
77241 - TUBE, FUEL MAIN, NO.1
77251-91261	RT130,132,TT13#,XT130..WG	09/1978 - 01/1983	1
77241 - TUBE, FUEL MAIN, NO.1
77251-91261	RT130,132,TT13#,XT130..WG	09/1978 - 01/1983	1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06015	RT13#,TT132 *H,L=150	09/1978 - 04/1979	1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06015	RT13#,TT132 *H,L=150	09/1978 - 04/1979	1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-06020	RT132..WG;TT132..3FC..LEF *H,L=200	09/1978 - 08/1980	1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-06020	RT132..WG;TT132..3FC..LEF *H,L=200	09/1978 - 08/1980	1
77251 - SHIELD, FUEL TANK, INLET, NO.1
77291-12010	RT130,132,TT13#,XT130..WG	09/1978 - 01/1983	1
77277 - TUBE, FUEL RETURN, NO.1
77255-91256	RT132,XT130..WG;TT132..3FC..LEF	09/1978 - 08/1980	1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-06024	RT132;TT132..3FC..GEN *H,L=240	01/1979 - 04/1979	1
95332-06030	RT132;TT132..3FC..GEN *H,L=240	04/1979 - 08/1980	1
95332-06028	RT132 *H,L=280	09/1978 - 01/1979	1
95332-06030	RT132..GEN *H,L=240	08/1980 - 05/1982	1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-06030	RT132,XT130..WG;TT132..3FC..LEF *H,L=220	04/1979 - 08/1980	1
95332-06022	RT132..WG;TT132..3FC..LEF *H,L=220	09/1978 - 04/1979	1
77285A - SUPPORT, FUEL RETURN AND MAIN TUBE
77285-91255	RT132,XT130..WG;TT132..3FC..LEF	09/1978 - 08/1980	1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77350-91255	RT130,132,TT13#,XT130..WG	09/1978 - 01/1983	1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-08003	RT130,132,TT13#,XT130..WG	09/1978 - 01/1983	2
77358 - RETAINER, FUEL INLET CUSHION
77358-20010	RT13#,TT13#,XT130	09/1978 - 01/1983	1
77651 - PACKING, FUEL TANK BRACKET
77651-91602	RT130,132,TT13#,XT130..WG 100X550	06/1981 - 09/1981	2
77651-21010	RT13#,TT13#,XT130..WG	09/1978 - 10/1979	3
77651-91255	RT13#,TT13#,XT130..WG	10/1979 - 06/1981	3
77651 - PACKING, FUEL TANK BRACKET
77651-91602	RT130,132,TT13#,XT130..WG 100X550	06/1981 - 09/1981	2
77651-21010	RT13#,TT13#,XT130..WG	09/1978 - 10/1979	3
77651-91255	RT13#,TT13#,XT130..WG	10/1979 - 06/1981	3
77651 - PACKING, FUEL TANK BRACKET
77651-91602	RT130,132,TT13#,XT130..WG 100X550	06/1981 - 09/1981	2
77651-21010	RT13#,TT13#,XT130..WG	09/1978 - 10/1979	3
77651-91255	RT13#,TT13#,XT130..WG	10/1979 - 06/1981	3
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10020	RT130,132,TT13#..EUR,GEN,PHL	09/1978 - 05/1982	1
Common parts
90164-50048
90168-50008
90189-06010
90460-22023
90480-01076
90480-71414
91651-40620
91665-60825
93319-14010
93385-15014
96111-10220
96111-10630
96130-30600
96132-30600
96132-30800

RT132LG-TWKRS (1978)

(7809-8205)RT130,132,TT13#..WG

(7809- )

Part Price Details

Part #	Description	Period	Qty	Price
Common parts
90461-07016
90461-07019
90461-08517
90461-10210
91651-40614
96221-10706
