RT130R-TEKRSY (1978)

Toyota Corona

Production Sep 1978 - Aug 1979
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

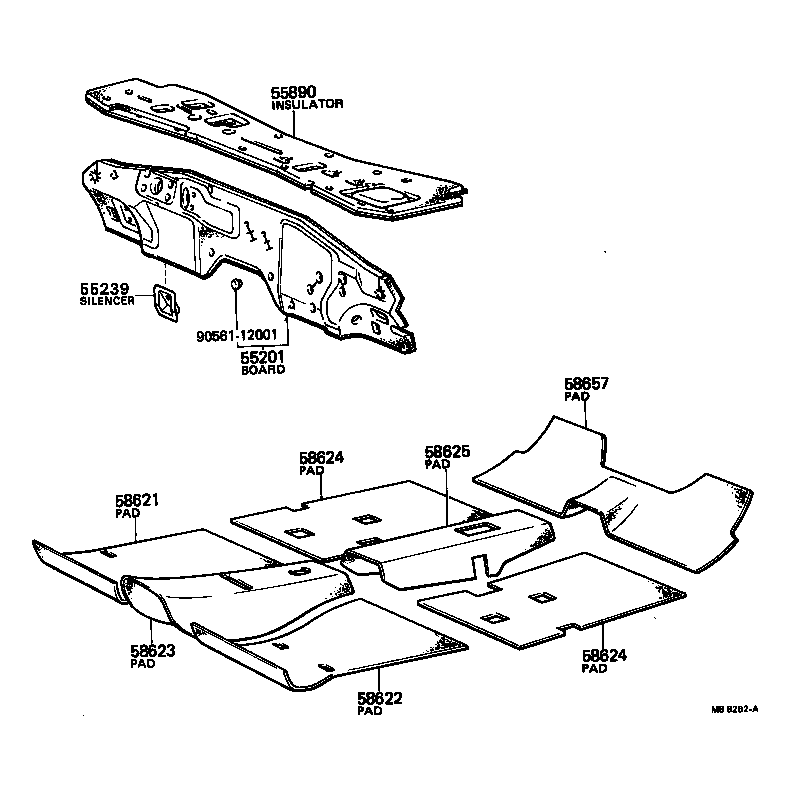

Click highlighted areas on diagram

diagram 55201 55239 55890 58621 58622 58623 58624 58624 58625 58657 9056112001
Part # Description Qty Price
55201 - BOARD SUB-ASSY, DASH PANEL SILENCER
55210-20010

RT133;RT130,132,TT13#..RHD

 1
55239 - SILENCER, STEERING COLUMN HOLE COVER
55257-20020

RT133;RT130,132,TT13#,XT130..RHD

 1
55890 - INSULATOR ASSY, COWL TOP
55780-20030

RT133;RT130,132,TT13#,XT130..RHD

 1
58621 - PAD, FLOOR SILENCER, FRONT RH
58621-20030

RT13#,TT13#..4F..STD..GEN

 1
58622 - PAD, FLOOR SILENCER, FRONT LH
58621-20030

RT13#,TT13#..4F..STD..GEN

 1
58623 - PAD, FLOOR SILENCER, FRONT CENTER
58623-20040

RT13#,TT13#..SED..MTM..GEN

 1
58624 - PAD, FLOOR SILENCER, REAR SIDE
58624-20030

RT13#,TT13#..4F..STD..GEN

 2
58624 - PAD, FLOOR SILENCER, REAR SIDE
58624-20030

RT13#,TT13#..4F..STD..GEN

 2
58625 - PAD, FLOOR SILENCER, REAR CENTER
58626-20030

RT13#,TT13#..4F..STD..GEN

 1
58657 - PAD, UNDER REAR SEAT SILENCER
58657-20050

RT13#,TT13#,XT130..HT,LB,SED

 1
Common parts
90561-12001
