RT130R-TEKRSY (1978)

Toyota Corona

Production Sep 1978 - Aug 1979
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )12R#

Click highlighted areas on diagram

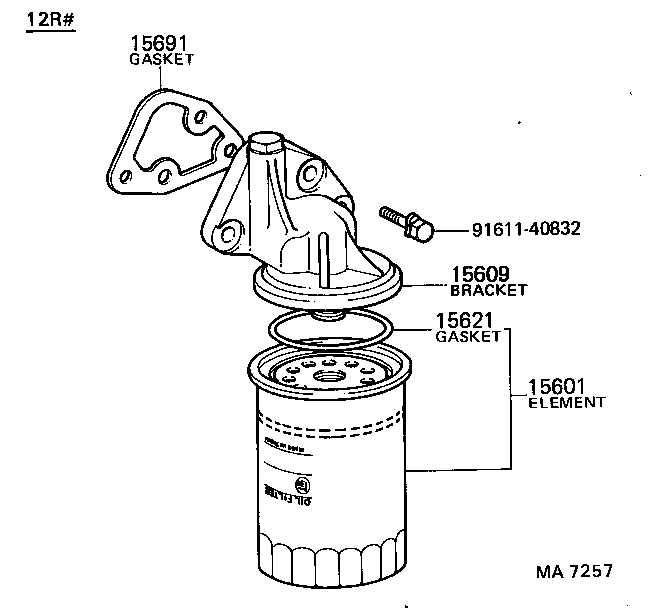

diagram 15601 15609 15621 15691 9161140832
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15601-33020

12R#..RT130

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-31030

12R#..RT130

 1
15621 - GASKET, OIL FILTER BODY
15621-22010

12R#,18R#..RT130,132

 1
15691 - GASKET, OIL FILTER
15691-31010

12R#..RT130

 1
Common parts
91611-40832
