RT130L-TEKRSY (1978)

Toyota Corona

Production Sep 1978 - Aug 1979
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8008)

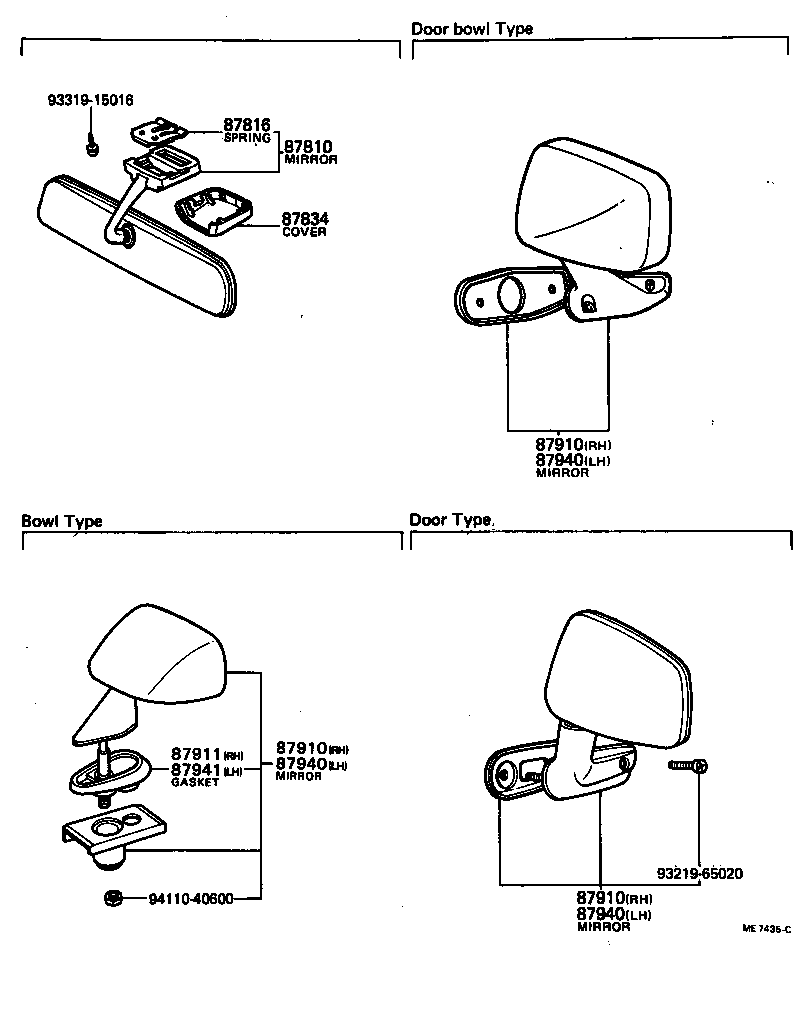

Click highlighted areas on diagram

diagram 87810 87816 87834 87910 87910 87910 87911 87940 87940 87940 87941 9321965020 9331915016 9411040600
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-2017003

RT13#,TT13#,XT130..STD

GRAY,MURAKAMI,GRAY,TRIM2#

 1
87810-2216103

TT133..SED..LHD;RT13#,TT132..LHD..GEN

NON GLARE TYPE,GRAY,IKI,GRAY,TRIM2#

 1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-30030

RT13#,TT13#,XT130

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2007108

RT13#,TT13#,XT130..ARL,GEN,PHL

IVORY,MURAKAMI,IVORY,TRIM2#,3#

 1
87834-2007115

RT13#,TT132..GEN,PHL

BEIGE,MURAKAMI,BEIGE,TRIM4#

 1
87834-2204105

TT133..SED..LHD;RT13#,TT132..LHD..GEN

BEIGE,IKI,BEIGE,TRIM4#

 1
87834-2204108

RT13#,TT132..LHD..GEN

IVORY,IKI,IVORY,TRIM2#,3#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-29295

RT13#,TT13#..GEN

FENDER BOWL TYPE,MURAKAMI

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-29295

RT13#,TT13#..GEN

FENDER BOWL TYPE,MURAKAMI

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-29295

RT13#,TT13#..GEN

FENDER BOWL TYPE,MURAKAMI

 1
87911 - GASKET, OUTER REAR VIEW MIRROR, RH
87911-20070

RT13#,TT13#..GEN

MURAKAMI

 1
87911-20050

RT13#,TT13#..GEN

IKI

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-20280

RT13#,TT13#..LHD..(EUR,GEN)

DOOR TYPE,IKI

 1
87940-29305

RT13#,TT13#..GEN

FENDER BOWL TYPE,MURAKAMI

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-20280

RT13#,TT13#..LHD..(EUR,GEN)

DOOR TYPE,IKI

 1
87940-29305

RT13#,TT13#..GEN

FENDER BOWL TYPE,MURAKAMI

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-20280

RT13#,TT13#..LHD..(EUR,GEN)

DOOR TYPE,IKI

 1
87940-29305

RT13#,TT13#..GEN

FENDER BOWL TYPE,MURAKAMI

 1
87941 - GASKET, OUTER REAR VIEW MIRROR, LH
87941-20050

RT13#,TT13#..GEN

IKI

 1
87941-20080

RT13#,TT13#..GEN

MURAKAMI

 1
Common parts
93219-65020
93319-15016
94110-40600
