RT130L-TEKRSY (1978)

Toyota Corona

Production Sep 1978 - Aug 1979
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8008)12R#,18R#,2T,3T..HT,LB,SED

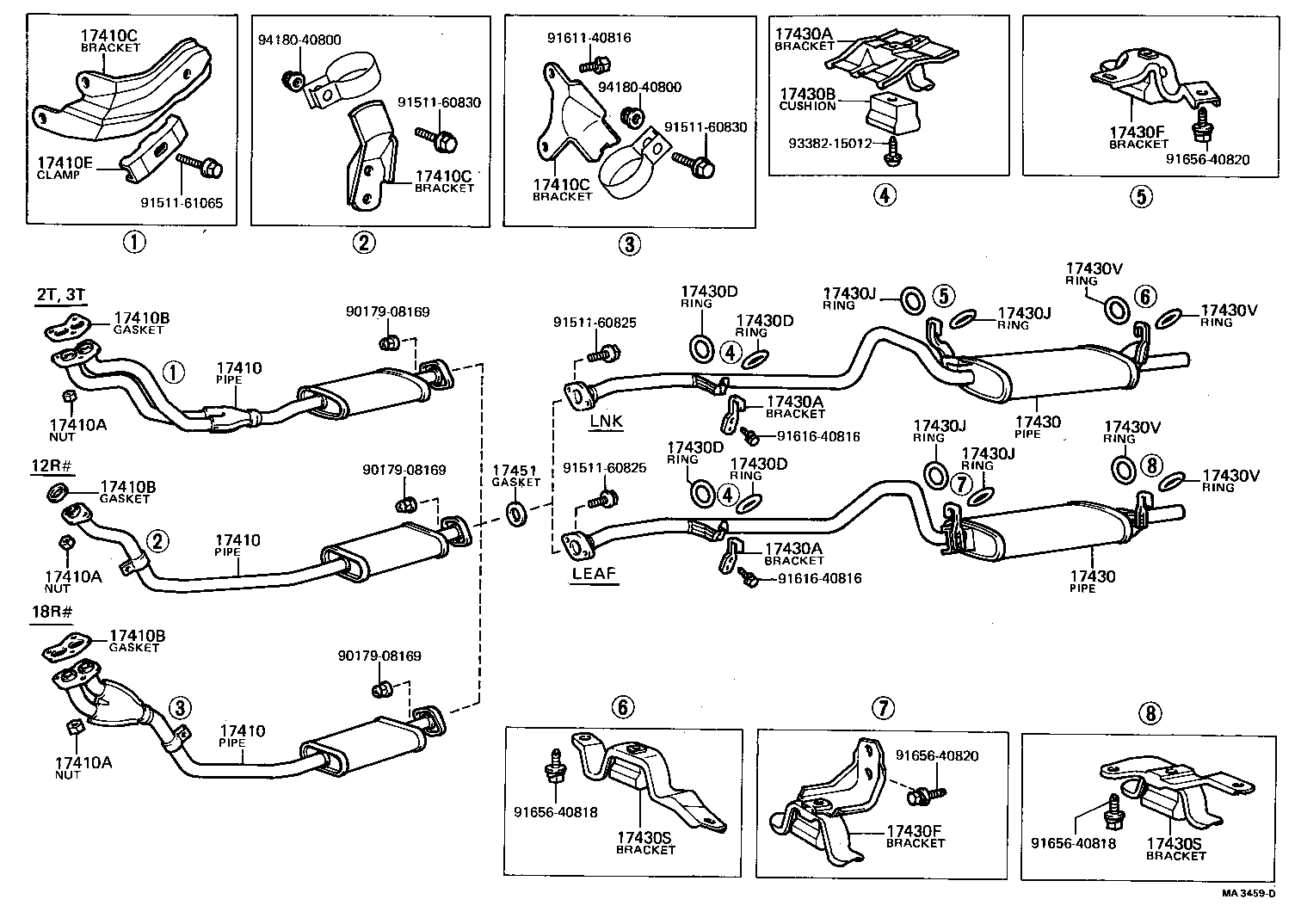

Click highlighted areas on diagram

diagram 17410 17410 17410 17410A 17410A 17410A 17410B 17410B 17410B 17410C 17410C 17410C 17410E 17430 17430 17430A 17430A 17430A 17430B 17430D 17430D 17430D 17430D 17430F 17430F 17430J 17430J 17430J 17430J 17430S 17430S 17430V 17430V 17430V 17430V 17451 9017908169 9017908169 9017908169 9151160825 9151160825 9151160830 9151160830 9151161065 9161140816 9161640816 9161640816 9165640818 9165640818 9165640820 9165640820 9338215012 9418040800 9418048800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31270

12R#..RT130

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31270

12R#..RT130

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31270

12R#..RT130

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

12R#..RT130

 2
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

12R#..RT130

 2
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

12R#..RT130

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

12R#..RT130

 1
17410B - GASKET, EXHAUST PIPE
90917-06004

12R#..RT130

 1
17410B - GASKET, EXHAUST PIPE
90917-06004

12R#..RT130

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-31080

12R#..RT130

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-31080

12R#..RT130

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-31080

12R#..RT130

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31190

12R#,18R,2T..RT13#,TT133..SED..LEF

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31190

12R#,18R,2T..RT13#,TT133..SED..LEF

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17561-26080

12R#,18R#,2T,3T..RT13#,TT13#

PIPE SIDE

 1
17506-26050

21RC,12R#,18R,3T..RT13#,TT132..HT,LB,SED

FLOOR PAN SIDE

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17561-26080

12R#,18R#,2T,3T..RT13#,TT13#

PIPE SIDE

 1
17506-26050

21RC,12R#,18R,3T..RT13#,TT132..HT,LB,SED

FLOOR PAN SIDE

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17561-26080

12R#,18R#,2T,3T..RT13#,TT13#

PIPE SIDE

 1
17506-26050

21RC,12R#,18R,3T..RT13#,TT132..HT,LB,SED

FLOOR PAN SIDE

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
17591-36010

21RC,12R#,18R#,2T,3T..RT13#,TT13#..HT,LB,SED

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

21RC,12R#,18R#,2T,3T..RT13#,TT13#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

21RC,12R#,18R#,2T,3T..RT13#,TT13#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

21RC,12R#,18R#,2T,3T..RT13#,TT13#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

21RC,12R#,18R#,2T,3T..RT13#,TT13#

 2
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17507-44010

12R#,18R,2T..RT130,132,TT133..SED..LEF

 1
17430F - BRACKET, EXHAUST TAIL PIPE(FOR CENTER)
17507-44010

12R#,18R,2T..RT130,132,TT133..SED..LEF

 1
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

21RC,12R#,18R#,2T,3T..RT13#,TT13#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

21RC,12R#,18R#,2T,3T..RT13#,TT13#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

21RC,12R#,18R#,2T,3T..RT13#,TT13#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
90301-34207

21RC,12R#,18R#,2T,3T..RT13#,TT13#

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17508-44010

12R#,18R,2T..RT130,132,TT133..SED..LEF

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17508-44010

12R#,18R,2T..RT130,132,TT133..SED..LEF

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

21RC,12R#,18R#,2T,3T..RT13#,TT13#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

21RC,12R#,18R#,2T,3T..RT13#,TT13#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

21RC,12R#,18R#,2T,3T..RT13#,TT13#

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

21RC,12R#,18R#,2T,3T..RT13#,TT13#

 2
17451 - GASKET, EXHAUST PIPE
90917-06004

21RC,12R#,18R#,2T,3T..RT13#,TT13#

 1
Common parts
90179-08169
91511-60825
91511-60830
91511-61065
91611-40816
91616-40816
91656-40818
91656-40820
93382-15012
94180-40800
94180-48800
