RT130L-TEKRSY (1978)

Toyota Corona

Production Sep 1978 - Aug 1979
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8112)12R#

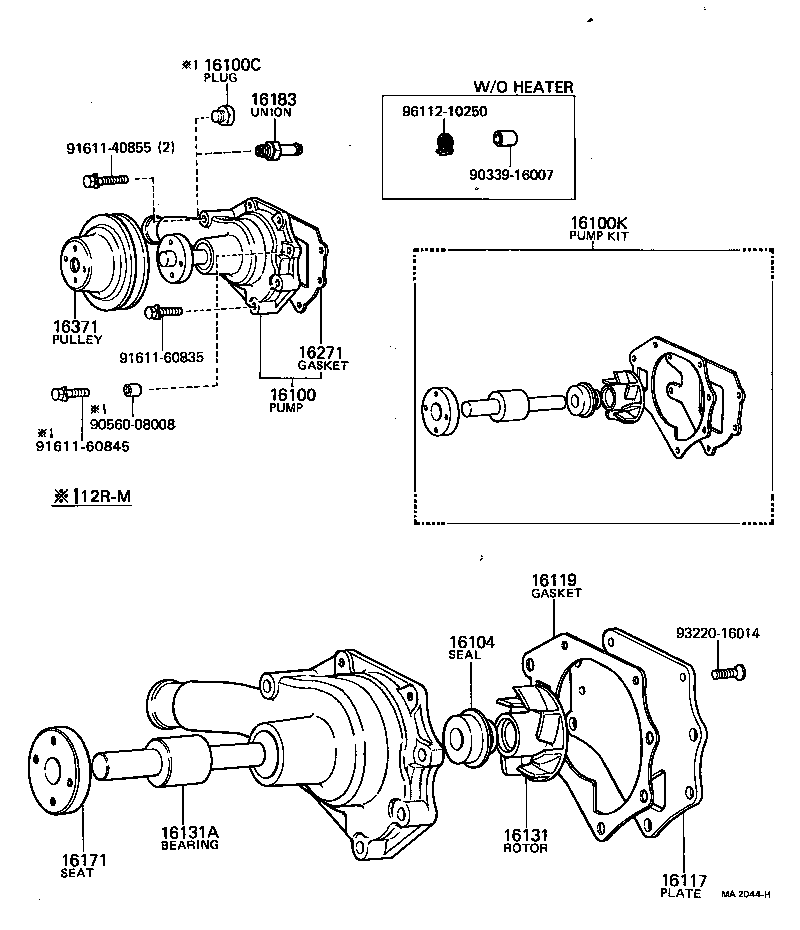

Click highlighted areas on diagram

diagram 16100 16100C 16100K 16104 16117 16119 16131 16131A 16171 16183 16271 16371 9033916007 9056008008 9161140855 9161160835 9161160845 9322016014 9611210250
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39116

12R#..RT130

 1
16100K - PUMP KIT, WATER
04161-31023

12R#..RT130

 1
16104 - SEAL SET, WATER PUMP
16104-41111

21RC,12R#..RT130,133

 1
16117 - PLATE, WATER PUMP
16117-31031

12R#..RT130

 1
16119 - GASKET, WATER PUMP BODY
16124-31031

12R#..RT130

 1
16131 - ROTOR, WATER PUMP
16131-31031

12R#..RT130

 1
16131A - BEARING, WATER PUMP
90369-30003

12R#..RT130

WPB,16124 BR-1-R

 1
16171 - SEAT, WATER PUMP PULLEY
16171-24031

12R#..RT130

 1
16183 - UNION, WATER PUMP
87251-30200

12R..RT130

 1
16271 - GASKET, WATER PUMP
16271-31010

12R#..RT130

 1
16371 - PULLEY, FAN
16371-31022

12R#..RT130

 1
Common parts
90339-16007
90560-08008
91611-40855
91611-60835
91611-60845
93220-16014
96112-10250
