RT130L-TEKRSMY (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
12RM
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809-7912)12R#

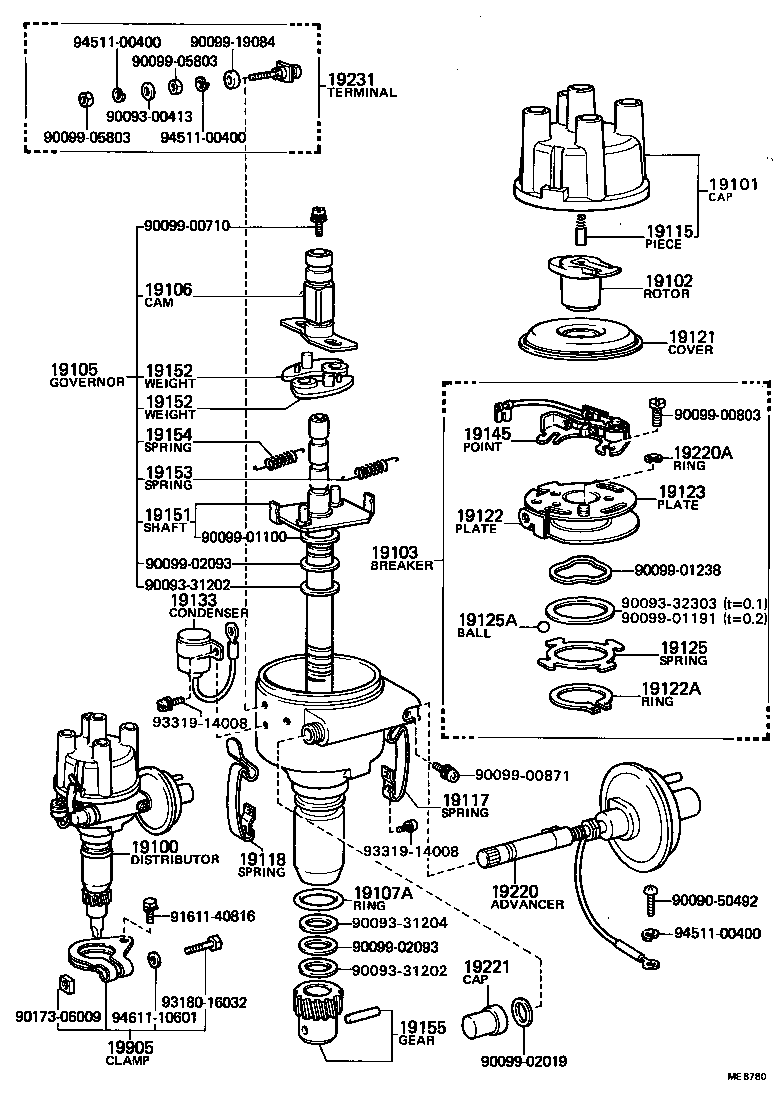

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-31021 |
12R#..RT130 |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-31013 |
12R#..RT130 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-22012 |
12RM..RT130 |
1 | ||
| 19102-22010 |
12R#..RT130 |
1 | ||
| 19103 - BREAKER SUB-ASSY, DISTRIBUTOR | ||||
| 19103-22011 |
12R#..RT130 |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-31021 |
12R#..RT130 |
1 | ||
| 19106 - CAM SUB-ASSY, DISTRIBUTOR | ||||
| 19106-31010 |
12R#..RT130 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
21RC,12R#,18R#..RT13# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
21RC,12R#,18R#..RT13# |
1 | ||
| 19117 - SPRING, DISTRIBUTOR CAP, A | ||||
| 19117-30030 |
12R#..RT130 |
1 | ||
| 19118 - SPRING, DISTRIBUTOR CAP, B | ||||
| 19118-30030 |
12R#..RT130 |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-10010 |
12R#..RT130 |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-29021 |
12R#..RT130 |
1 | ||
| 19122A - RING, SNAP(FOR DISTRIBUTOR STATIONARY PLATE) | ||||
| 90099-07081 |
12R#..RT130 |
1 | ||
| 19123 - PLATE, DISTRIBUTOR BREAKER | ||||
| 19123-41011 |
12R#..RT130 |
1 | ||
| 19125 - SPRING(FOR DISTRIBUTOR STATIONARY PLATE) | ||||
| 19125-30010 |
12R#..RT130 |
1 | ||
| 19125A - BALL, DISTRIBUTOR STATIONARY PLATE | ||||
| 90099-12003 |
12R#..RT130 |
4 | ||
| 19133 - CONDENSER, DISTRIBUTOR | ||||
| 90099-52060 |
12R#..RT130 |
1 | ||
| 19145 - POINT, DISTRIBUTOR | ||||
| 19145-26060 |
12R#,18R#..RT130,132 |
1 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-22031 |
12R#..RT130 |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-87104 |
12R#..RT130 |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-87104 |
12R#..RT130 |
2 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-31020 |
12R#..RT130 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-31020 |
12R#..RT130 |
1 | ||
| 19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER) | ||||
| 90099-07104 |
12R#..RT130 |
1 | ||
| 19221 - CAP, ADJUSTER, DISTRIBUTOR | ||||
| 19221-30030 |
12R#,18R..RT130,132 |
1 | ||
| 19231 - TERMINAL, DISTRIBUTOR | ||||
| 19231-22010 |
12R#..RT130 |
1 | ||
| 19905 - CLAMP SUB-ASSY, DISTRIBUTOR | ||||
| 19905-40010 |
12R#..RT130 |
1 | ||
| Common parts | ||||
| 90090-50492 | ||||
| 90093-00413 | ||||
| 90093-31202 | ||||
| 90093-31204 | ||||
| 90093-32303 | ||||
| 90099-00710 | ||||
| 90099-00803 | ||||
| 90099-00871 | ||||
| 90099-01100 | ||||
| 90099-01191 | ||||
| 90099-01238 | ||||
| 90099-02019 | ||||
| 90099-02093 | ||||
| 90099-05803 | ||||
| 90099-19084 | ||||
| 90173-06009 | ||||
| 91611-40816 | ||||
| 93180-16032 | ||||
| 93319-14008 | ||||
| 94511-00400 | ||||
| 94611-10601 | ||||
