RT130L-TEKRSM (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
12RM
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809-8112)12R#

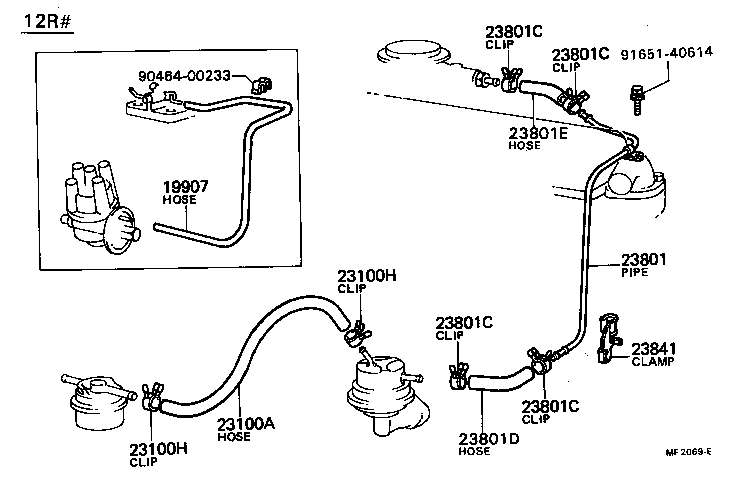

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19907 - HOSE, VACUUM, NO.1 | ||||
| 95411-10195 |
12R#..RT130 *H,L=750 |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 95332-06028 |
12R#..RT130 L=280 |
1 | ||
| 95332-06030 |
12R#..RT130 *H,L=280 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
12R#,18R#..RT13# |
2 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
12R#,18R#..RT13# |
2 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 23811-31061 |
12R#..RT130 |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 90467-12001 |
12R#..RT130 |
4 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 90467-12001 |
12R#..RT130 |
4 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 90467-12001 |
12R#..RT130 |
4 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 90467-12001 |
12R#..RT130 |
4 | ||
| 23801D - HOSE, FUEL PIPE, NO.1 | ||||
| 95332-06010 |
12R#..RT130 *H,L=100 |
1 | ||
| 23801E - HOSE, FUEL PIPE, NO.2 | ||||
| 95332-06010 |
12R#..RT130 L=100 |
1 | ||
| 23841 - CLAMP, FUEL PIPE(HOSE), NO.1 | ||||
| 23841-31020 |
12R#..RT130 |
1 | ||
| Common parts | ||||
| 90464-00233 | ||||
| 91651-40614 | ||||
