RT130L-TEKRSM (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 12RM
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8112)12R#

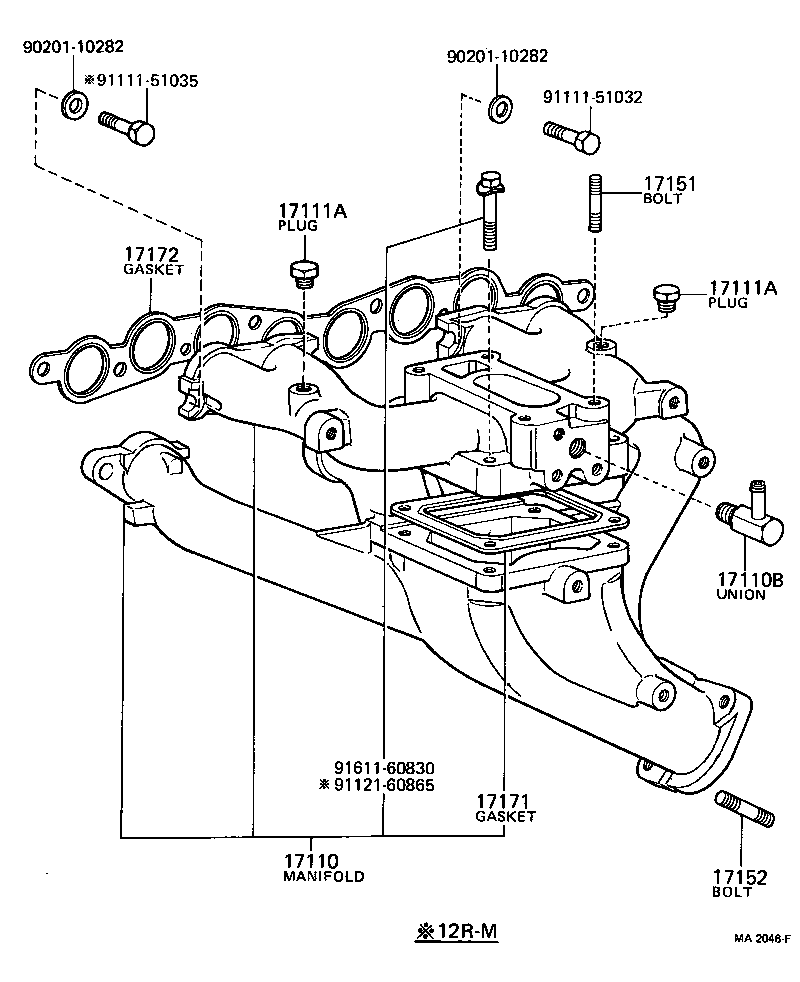

Click highlighted areas on diagram

diagram 17110 17110B 17111A 17111A 17151 17152 17171 17172 9020110282 9020110282 9111151032 9111151035 9112160865 9161160830
Part # Description Qty Price
17110 - MANIFOLD ASSY
17110-31090

12R..RT130

 1
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90407-09002

12R#..RT130

 1
17111A - PLUG, NO.1
90345-51025

21RC,12R#..RT130,133

 2
17111A - PLUG, NO.1
90345-51025

21RC,12R#..RT130,133

 2
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08320

12R#..RT130

L=43,S=15&15

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10042

12R#..RT130

 2
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-44010

12RM..RT130

 1
17171-31020

12R..RT130

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-31021

12R..RT130

 1
17172-31020

12RM..RT130

 1
Common parts
90201-10282
91111-51032
91111-51035
91121-60865
91611-60830
