RT130L-TEKRSM (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 12RM
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8112)12R#

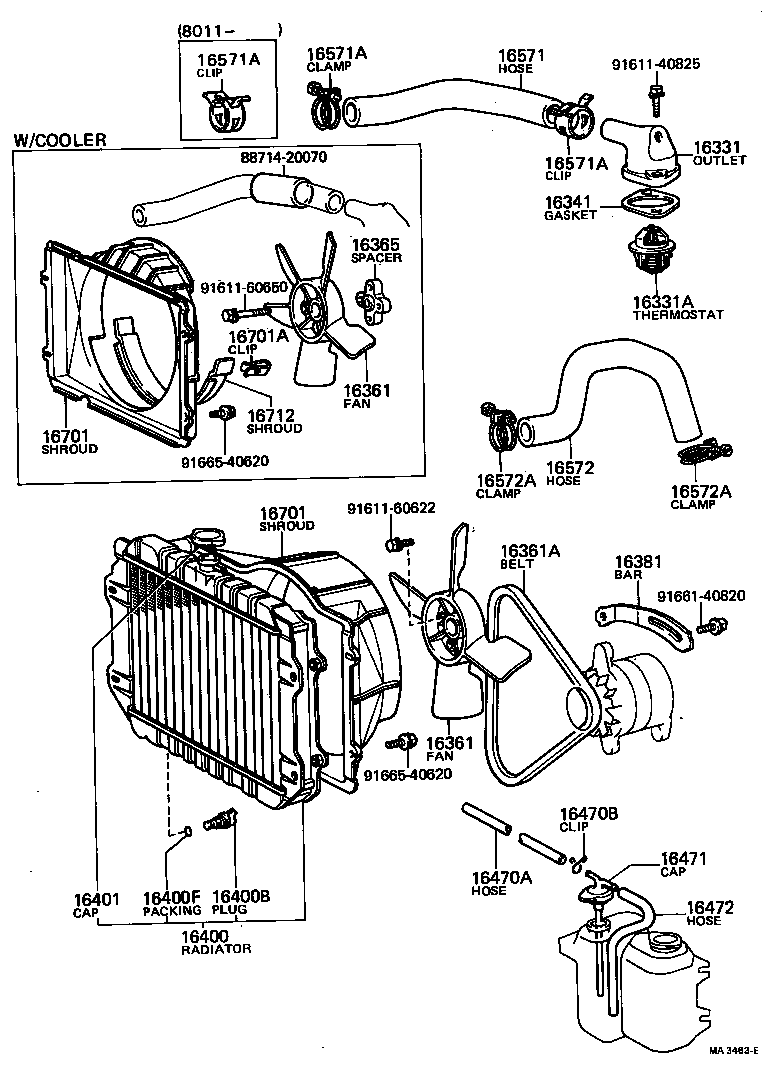

Click highlighted areas on diagram

diagram 16331 16331A 16341 16361 16361 16361A 16365 16381 16400 16400B 16400F 16401 16470A 16470B 16471 16472 16571 16571A 16571A 16571A 16572 16572A 16572A 16701 16701 16701A 16712 8871420070 9161140825 9161160622 9161160650 9166140820 9166540620 9166540620
Part # Description Qty Price
16331 - OUTLET, WATER
16331-31092

12R..RT130

 1
16331A - THERMOSTAT
90916-03037

12R..RT130

*WAX 82-95,KUZEH

 1
90916-03034

12R..RT130

*WAX 82-95,FUJI-THOMSON

 1
16341 - GASKET, WATER OUTLET
16341-38010

12R#,18R..RT13#

 1
16361 - FAN
16361-31021

12R#..RT130

 1
16361-31050

12R..RT130

W/COOLER

 1
16361 - FAN
16361-31021

12R#..RT130

 1
16361-31050

12R..RT130

W/COOLER

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99332-00900

12R#..RT130

L=900

 1
16365 - SPACER, FAN
16365-44030

12R..RT130

W/COOLER

 1
16381 - BAR, FAN BELT ADJUSTING
16381-30021

12R..RT130

 1
16381-30020

12RM..RT130

 1
16400 - RADIATOR ASSY
16400-31240

12R#..RT130

 1
16400B - PLUG, RADIATOR DRAIN COCK
90910-09054

21RC,12R#,18R#..RT13#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96710-01007

21RC,12R#,18R#..RT13#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-36010

12R#,18R..RT13#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12043

12R..RT130

*H,L=360

 1
90445-12015

12RM..RT130

L=1300

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

21RC,12R#,18R#..RT13#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
85037-20010

12R#,18R..RT13#

 1
16571 - HOSE, RADIATOR, INLET
16572-31090

12R#..RT130

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96111-10440

12R#..RT130

RADIATOR SIDE

 1
90467-37001

12R#,18R#..RT13#

WATER OUTLET SIDE

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96111-10440

12R#..RT130

RADIATOR SIDE

 1
90467-37001

12R#,18R#..RT13#

WATER OUTLET SIDE

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96111-10440

12R#..RT130

RADIATOR SIDE

 1
90467-37001

12R#,18R#..RT13#

WATER OUTLET SIDE

 1
16572 - HOSE, RADIATOR, OUTLET
16571-31090

12R#..RT130

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10460

12R#..RT130

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10460

12R#..RT130

 2
16701 - SHROUD SUB-ASSY, FAN
16711-31130

12R..RT130

W/COOLER

 1
16711-31160

12R#..RT130

 1
16701 - SHROUD SUB-ASSY, FAN
16711-31130

12R..RT130

W/COOLER

 1
16711-31160

12R#..RT130

 1
16701A - CLIP(FOR FAN SHROUD)
90468-06013

12R,18R#..RT13#

W/COOLER

 2
90468-06001

12R,18R..RT13#

W/COOLER

 2
16712 - SHROUD, FAN, NO.2
16712-31030

12R..RT130

W/COOLER

 1
Common parts
88714-20070
91611-40825
91611-60622
91611-60650
91661-40820
91665-40620
