RT130L-TEKDSY (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1979
Engine
12R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809- )

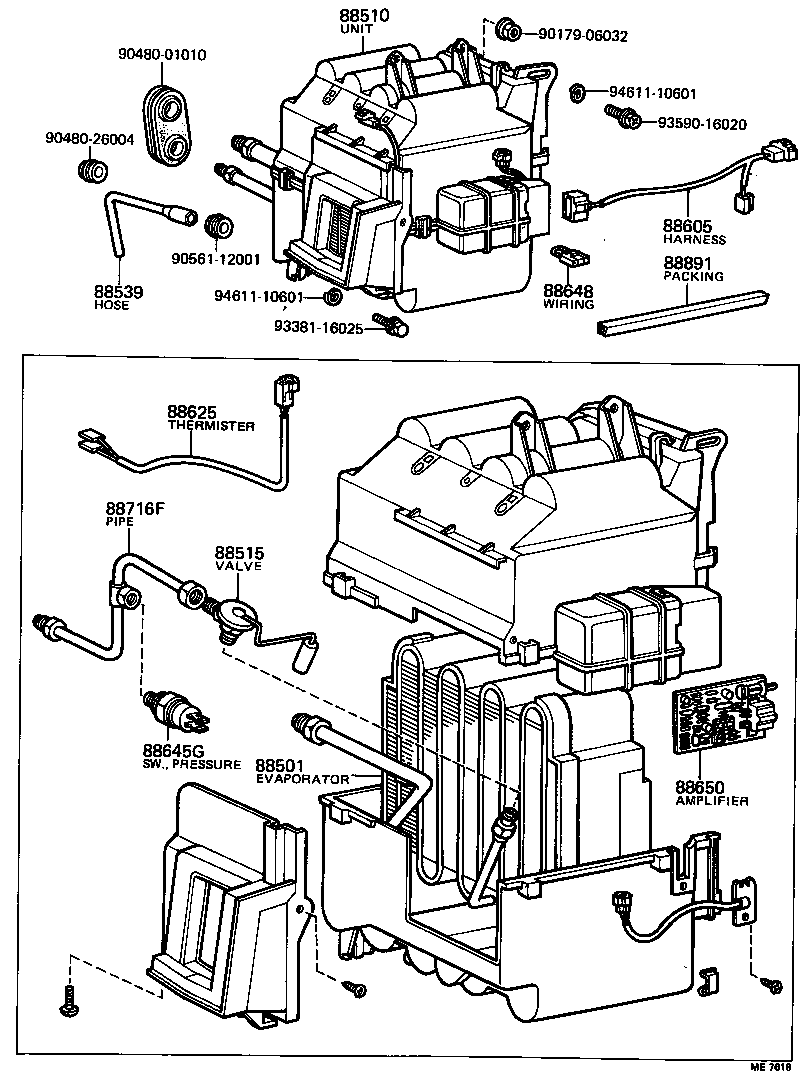

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-20060 |
RT13#,TT132..LHD..(EUR,GEN) |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-20150 |
RT13#,TT132..LHD..(EUR,GEN) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-14020 |
RT13#,TT132..LHD..(EUR,GEN) |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-20080 |
RT13#,TT13#..ARL,EUR,GEN |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-20160 |
RT13#,TT132..LHD..(EUR,GEN) |
1 | ||
| 88605-20180 |
RT13#,TT132..GEN W/BOOST VENTILATOR |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-20060 |
RT13#,TT13#..ARL,EUR,GEN |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-22010 |
RT13#,TT13#..ARL,EUR,GEN |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-20190 |
RT13#,TT132..GEN W/BOOST VENTILATOR |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20100 |
RT13#,TT13#..ARL,EUR,GEN |
1 | ||
| Common parts | ||||
| 90179-06032 | ||||
| 90480-01010 | ||||
| 90480-26004 | ||||
| 90561-12001 | ||||
| 93381-16025 | ||||
| 93590-16020 | ||||
| 94611-10601 | ||||
