Toyota Corona RT130 RADIO RECEIVER & AMPLIFIER & CONDENSER

Manufacturers Home
Toyota
GR
CORONA
RT130L-TEKDSY (1978)
8601 - RADIO RECEIVER & AMPLIFIER & CONDENSER

RT130L-TEKDSY (1978)

Toyota Corona

Production Sep 1978 - Aug 1979

Engine 12R

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(7809-8008)

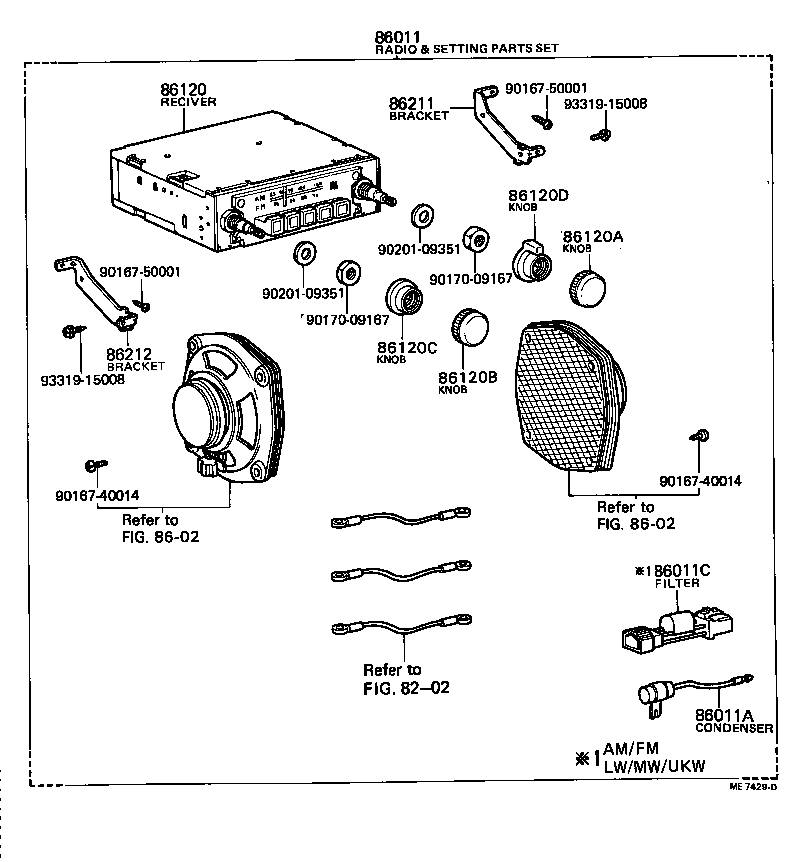

Click highlighted areas on diagram

Part #	Description	Period	Qty
86011 - RADIO & SETTING PARTS SET
86011-29125	RT13#,TT132..GEN AM/FM,5-BUTTON	09/1978 - 10/1979	1
86011-29095	RT13#,TT132..GEN,PHL AM,5-BUTTON	09/1978 - 08/1980	1
86011A - CONDENSER, RADIO SETTING
90980-04011	RT13#,TT13#,XT130 PLUG CONNECTOR	09/1978 - 08/1980	1
86011C - FILTER, NOISE
90980-05053	RT13#,TT132..GEN AM/FM	09/1978 - 08/1980	1
86120 - RECEIVER ASSY, RADIO
86120-20260	RT13#,TT13#,XT130..(DLX,STD)..(ARL,GEN) AM/FM,5-BUTTON	09/1978 - 10/1979	1
86120-20220	RT13#,TT13#..GEN SW/MW,5-BUTTON	09/1978 - 08/1980	1
86120-20230	RT13#,TT13#,XT130..(DLX,STD)..(ARL,GEN,PHL) AM,5-BUTTON	09/1978 - 08/1980	1
86120A - KNOB, RADIO RECEIVER SWITCH
86125-20060	RT13#,TT13#,XT130	09/1978 - 08/1980	1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86125-20060	XT130;RT13#,TT13#..EUR,GEN,PHL	09/1978 - 08/1980	1
86120C - KNOB, RADIO RECEIVER TUNING, NO.2
86124-20090	XT130;RT13#,TT13#..EUR,GEN,PHL LH	09/1978 - 08/1980	1
86120D - KNOB, RADIO RECEIVER TONE
86124-20060	RT13#,TT13#,XT130 RH	09/1978 - 08/1980	1
86211 - BRACKET, RADIO, NO.1
86212-20050	RT13#,TT13#,XT130 MATSUSHITA	09/1978 - 07/1980	1
86212 - BRACKET, RADIO, NO.2
86211-20060	RT13#,TT13#,XT130 MATSUSHITA	09/1978 - 07/1980	1
Common parts
90167-40014
90167-50001
90170-09167
90201-09351
93319-15008
Linked diagrams
8202
8602

(7809- )

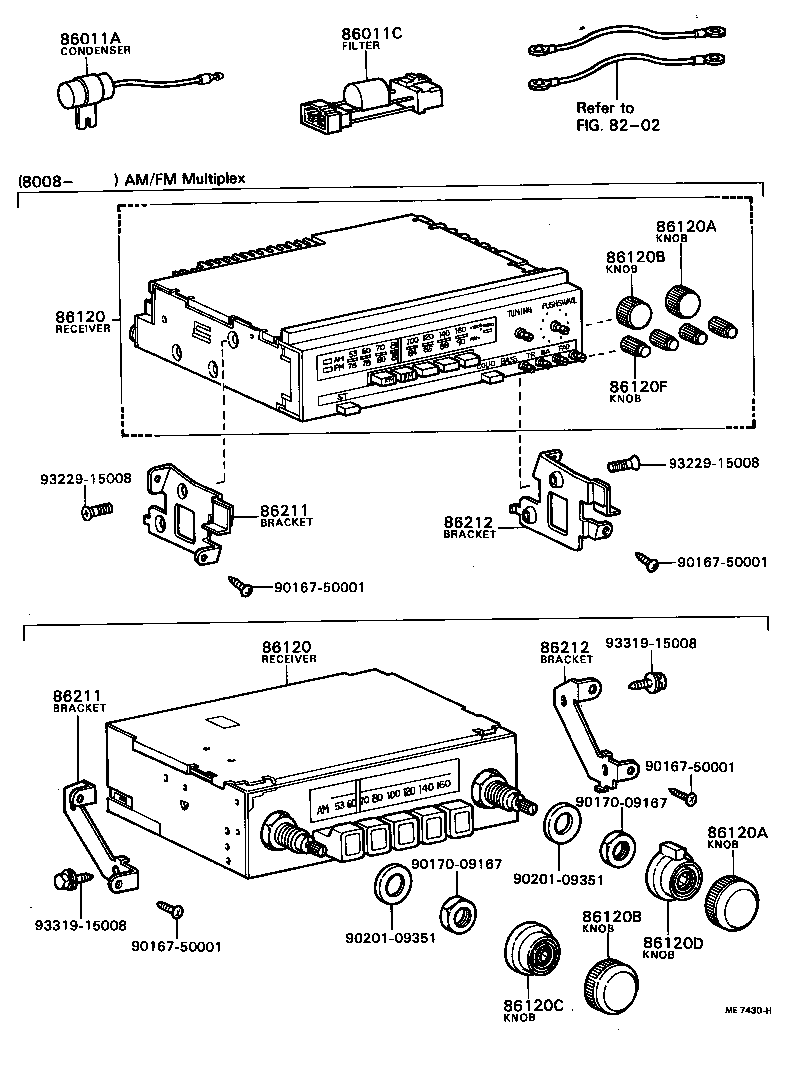

Click highlighted areas on diagram

Part #	Description	Period	Qty
86011A - CONDENSER, RADIO SETTING
90980-04011	RT13#,TT13#,XT130 PLUG CONNECTOR	09/1978 - 08/1980	1
86011C - FILTER, NOISE
90980-05053	RT13#,TT132..GEN AM/FM	09/1978 - 08/1980	1
86120 - RECEIVER ASSY, RADIO
86120-20260	RT13#,TT13#,XT130..(DLX,STD)..(ARL,GEN) AM/FM,5-BUTTON	09/1978 - 10/1979	1
86120-20220	RT13#,TT13#..GEN SW/MW,5-BUTTON	09/1978 - 08/1980	1
86120-20230	RT13#,TT13#,XT130..(DLX,STD)..(ARL,GEN,PHL) AM,5-BUTTON	09/1978 - 08/1980	1
86120 - RECEIVER ASSY, RADIO
86120-20260	RT13#,TT13#,XT130..(DLX,STD)..(ARL,GEN) AM/FM,5-BUTTON	09/1978 - 10/1979	1
86120-20220	RT13#,TT13#..GEN SW/MW,5-BUTTON	09/1978 - 08/1980	1
86120-20230	RT13#,TT13#,XT130..(DLX,STD)..(ARL,GEN,PHL) AM,5-BUTTON	09/1978 - 08/1980	1
86120A - KNOB, RADIO RECEIVER SWITCH
86125-20060	RT13#,TT13#,XT130	09/1978 - 08/1980	1
86120A - KNOB, RADIO RECEIVER SWITCH
86125-20060	RT13#,TT13#,XT130	09/1978 - 08/1980	1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86125-20060	XT130;RT13#,TT13#..EUR,GEN,PHL	09/1978 - 08/1980	1
86120B - KNOB, RADIO RECEIVER TUNING, NO.1
86125-20060	XT130;RT13#,TT13#..EUR,GEN,PHL	09/1978 - 08/1980	1
86120C - KNOB, RADIO RECEIVER TUNING, NO.2
86124-20090	XT130;RT13#,TT13#..EUR,GEN,PHL LH	09/1978 - 08/1980	1
86120D - KNOB, RADIO RECEIVER TONE
86124-20060	RT13#,TT13#,XT130 RH	09/1978 - 08/1980	1
86211 - BRACKET, RADIO, NO.1
86212-20050	RT13#,TT13#,XT130 MATSUSHITA	09/1978 - 07/1980	1
86211 - BRACKET, RADIO, NO.1
86212-20050	RT13#,TT13#,XT130 MATSUSHITA	09/1978 - 07/1980	1
86212 - BRACKET, RADIO, NO.2
86211-20060	RT13#,TT13#,XT130 MATSUSHITA	09/1978 - 07/1980	1
86212 - BRACKET, RADIO, NO.2
86211-20060	RT13#,TT13#,XT130 MATSUSHITA	09/1978 - 07/1980	1
Common parts
90167-50001
90170-09167
90201-09351
93229-15008
93319-15008
Linked diagrams
8202

(7809- )

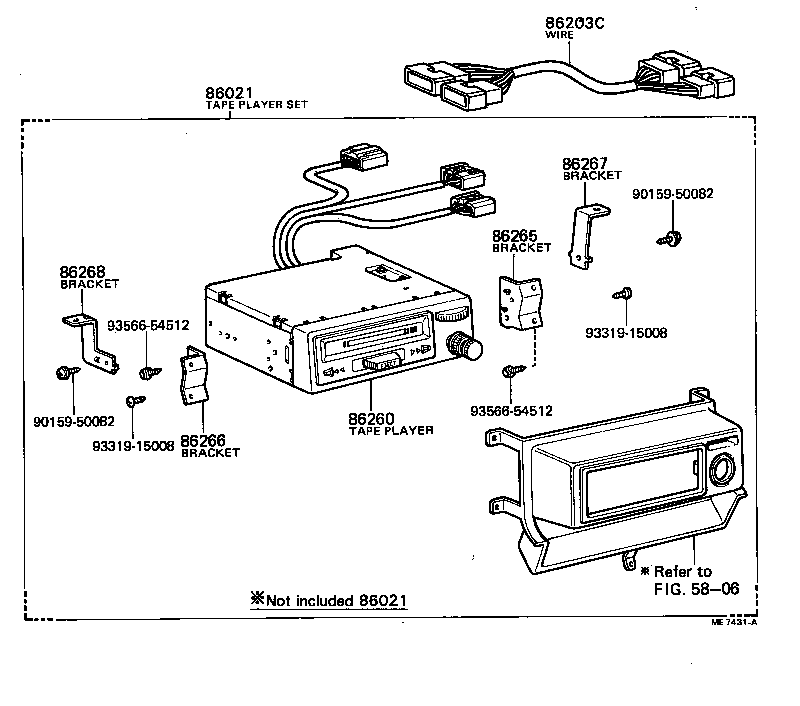

Click highlighted areas on diagram

Part #	Description	Period	Qty
86021 - TAPE PLAYER AND SETTING PARTS SET
86021-29075	RT13#,TT13#,XT130..(DLX,STD)..(ARL,GEN,PHL) AUTO-REVERSE TYPE	09/1978 - 08/1980	1
86021 - TAPE PLAYER AND SETTING PARTS SET
86021-29075	RT13#,TT13#,XT130..(DLX,STD)..(ARL,GEN,PHL) AUTO-REVERSE TYPE	09/1978 - 08/1980	1
86203C - WIRE, TAPE PLAYER
86203-20040	RT13#,TT13#..GEN,PHL NON-REVERSE TYPE	09/1978 - 08/1980	1
86203-20020	RT13#,TT13#,XT130..(DLX,STD)..(ARL,GEN,PHL) AUTO-REVERSE TYPE	09/1978 - 08/1980	1
86260 - TAPE PLAYER ASSY
86260-20080	RT13#,TT13#,XT130..(DLX,STD)..(ARL,GEN,PHL) AUTO-REVERSE TYPE	09/1978 - 08/1980	1
86260-22080	RT13#,TT13#..GEN,PHL NON-REVERSE TYPE	09/1978 - 04/1980	1
86265 - BRACKET, TAPE PLAYER, NO.1
86265-20010	RT13#,TT13#,XT130..ARL,GEN,PHL	09/1978 - 08/1980	1
86266 - BRACKET, TAPE PLAYER, NO.2
86265-20020	RT13#,TT13#,XT130..ARL,GEN,PHL	09/1978 - 08/1980	1
86267 - BRACKET, TAPE PLAYER, NO.3
86266-20020	RT13#,TT13#,XT130..ARL,GEN,PHL	09/1978 - 08/1980	1
86268 - BRACKET, TAPE PLAYER, NO.4
86266-20030	RT13#,TT13#,XT130..ARL,GEN,PHL	09/1978 - 08/1980	1
Common parts
90159-50082
93319-15008
93566-54512
Linked diagrams
5806

RT130L-TEKDSY (1978)

(7809-8008)

(7809- )

(7809- )
