RT130L-TEKDSY (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1979
Engine
12R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809- )

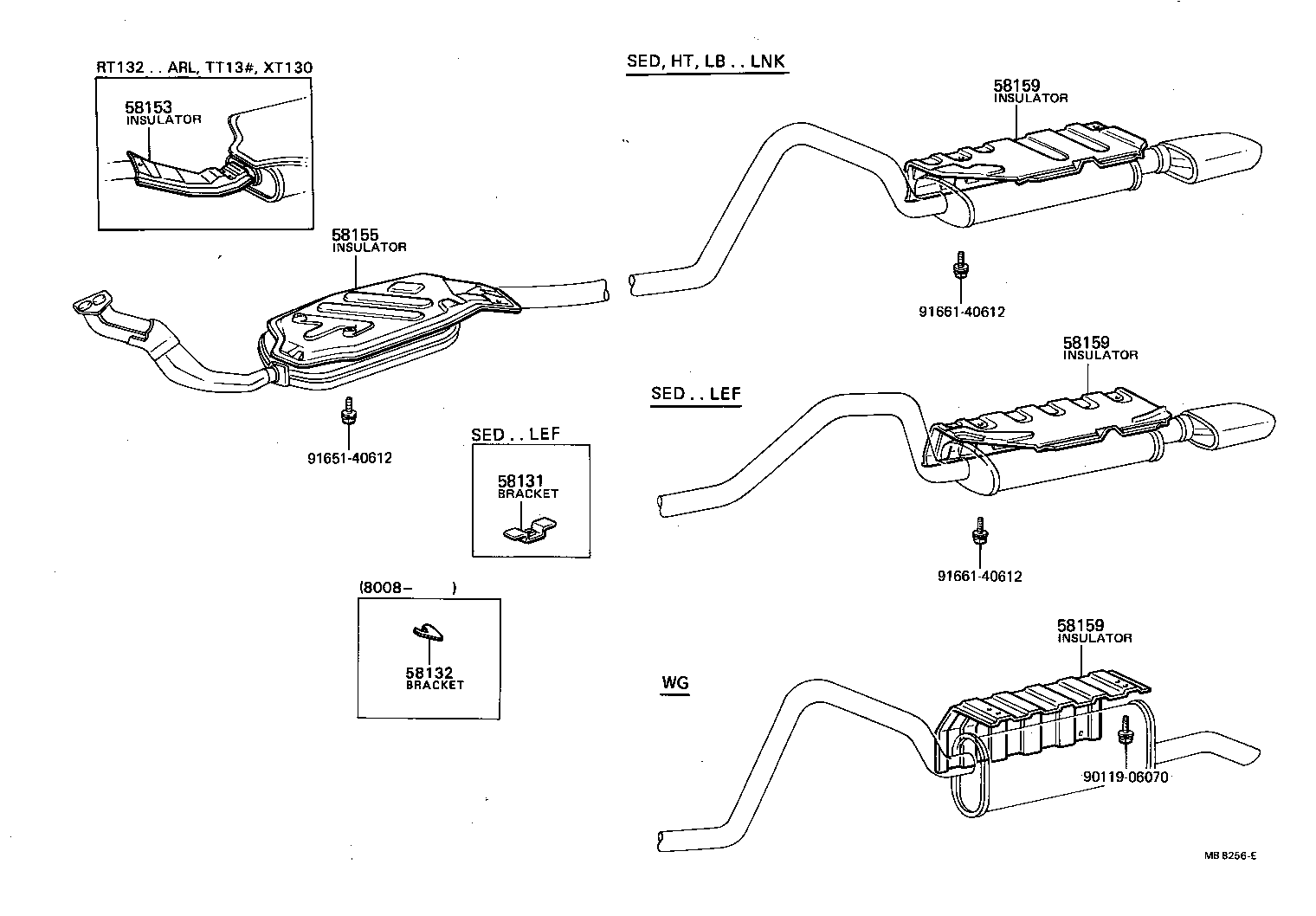

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-12020 |
RT13#,TT133..SED..LEF |
1 | ||
| 58155 - INSULATOR, FRONT FLOOR HEAT, NO.3 | ||||
| 58152-14080 |
RT13#,TT132 |
1 | ||
| 58159 - INSULATOR, MAIN MAFFLAR HEAT | ||||
| 58327-20020 |
RT130,132,TT133..SED..LEF |
1 | ||
| 58159 - INSULATOR, MAIN MAFFLAR HEAT | ||||
| 58327-20020 |
RT130,132,TT133..SED..LEF |
1 | ||
| 58159 - INSULATOR, MAIN MAFFLAR HEAT | ||||
| 58327-20020 |
RT130,132,TT133..SED..LEF |
1 | ||
| Common parts | ||||
| 90119-06070 | ||||
| 91651-40612 | ||||
| 91661-40612 | ||||
