RT130L-TEKDSY (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1979
Engine
12R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809-8008) ; (8008-8111)XT130

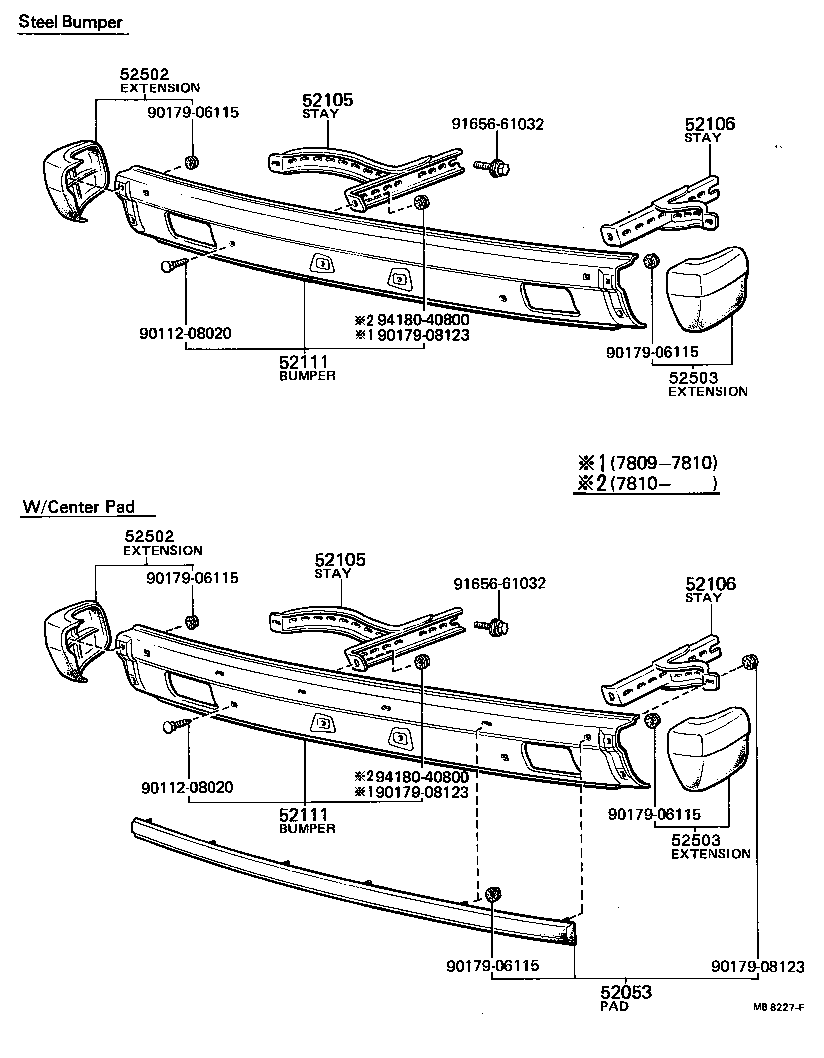

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52053 - PAD SUB-ASSY, FRONT BUMPER | ||||
| 52051-29045 |
RT13#,TT13#,XT130..ARL,EUR,GEN |
1 | ||
| 52105 - STAY SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-20060 |
RT13#,TT13#,XT130 |
1 | ||
| 52105 - STAY SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-20060 |
RT13#,TT13#,XT130 |
1 | ||
| 52106 - STAY SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-20040 |
RT13#,TT13#,XT130 |
1 | ||
| 52106 - STAY SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-20040 |
RT13#,TT13#,XT130 |
1 | ||
| 52111 - BUMPER ASSY, FRONT | ||||
| 52111-29365 |
RT13#,TT13#,XT130..ARL,EUR,GEN W/PAD |
1 | ||
| 52111-29355 |
RT13#,TT13#,XT130..DLX,STD |
1 | ||
| 52111 - BUMPER ASSY, FRONT | ||||
| 52111-29365 |
RT13#,TT13#,XT130..ARL,EUR,GEN W/PAD |
1 | ||
| 52111-29355 |
RT13#,TT13#,XT130..DLX,STD |
1 | ||
| 52502 - EXTENSION SUB-ASSY, FRONT BUMPER, RH | ||||
| 52102-29045 |
RT13#,TT13#,XT130 |
1 | ||
| 52502 - EXTENSION SUB-ASSY, FRONT BUMPER, RH | ||||
| 52102-29045 |
RT13#,TT13#,XT130 |
1 | ||
| 52503 - EXTENSION SUB-ASSY, FRONT BUMPER, LH | ||||
| 52103-29145 |
RT13#,TT13#,XT130 |
1 | ||
| 52503 - EXTENSION SUB-ASSY, FRONT BUMPER, LH | ||||
| 52103-29145 |
RT13#,TT13#,XT130 |
1 | ||
| Common parts | ||||
| 90112-08020 | ||||
| 90179-06115 | ||||
| 90179-08123 | ||||
| 91656-61032 | ||||
| 94180-40800 | ||||
