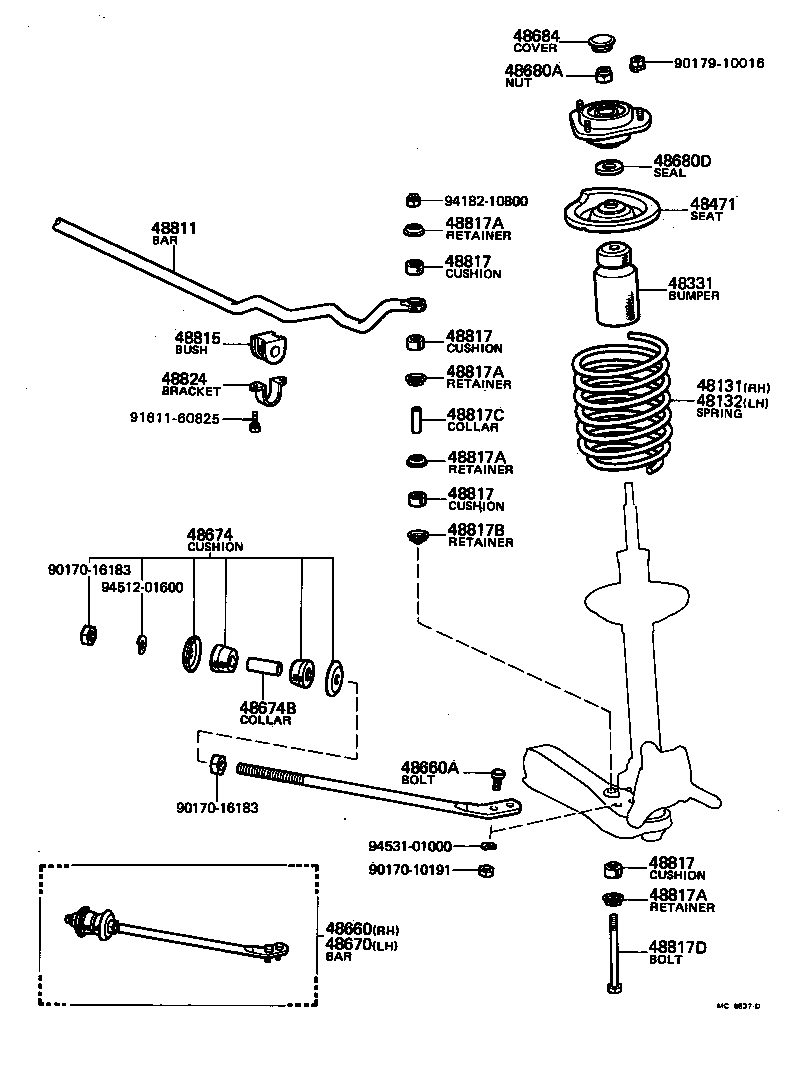

RT130L-TEKDSY (1978)
Toyota Corona
(7809- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-20410 |
RT130,TT133..SED..LHD..LEF TAXI SPEC |
1 | ||
| 48131-20390 |
RT130,TT133..LHD |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-20430 |
RT130,TT133..SED..LHD..LEF TAXI SPEC |
1 | ||
| 48131-20410 |
RT130,TT133..LHD |
1 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-22030 |
RT130,TT133..SED..LEF..GEN TAXI SPEC |
2 | ||
| 48331-14020 |
RT132..LNK;RT130..WG..PHL;RT130..LNK..PHL;RT130,TT132..EUR,GEN |
2 | ||
| 48471 - SEAT, FRONT SPRING, UPPER | ||||
| 48044-14020 |
RT132..LNK;RT130..WG..PHL;RT130..LNK..PHL;RT130,TT132..EUR,GEN |
2 | ||
| 48044-20010 |
RT130,TT133..SED..LEF..GEN TAXI SPEC |
2 | ||
| 48660 - BAR ASSY, STRUT, RH | ||||
| 48660-29045 |
RT13#,TT13#..ARL,GEN,PHL |
1 | ||
| 48660A - BOLT(FOR STRUT BAR SETTING) | ||||
| 90101-10148 |
RT13#,TT132 *10-1.25PX27-16 |
2 | ||
| 90114-10003 |
RT13#,TT132 *10-1.25PX26-15 |
2 | ||
| 48670 - BAR ASSY, STRUT, LH | ||||
| 48670-29045 |
RT13#,TT13#..ARL,GEN,PHL |
1 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-19058 |
RT13#,TT13#..ARL,GEN,PHL |
2 | ||
| 48674B - COLLAR(FOR STRUT BAR CUSHION) | ||||
| 90387-16108 |
RT133..GL;RT130,132,TT13# |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94182-11400 |
RT13#,TT13# |
2 | ||
| 48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90303-22049 |
RT13#,TT13# |
1 | ||
| 48684 - COVER, BEARING DUST | ||||
| 48684-10010 |
RT13#,TT13# |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-14110 |
RT13#,TT13#..(HT,LB,SED)..(ARL,GEN,PHL) |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-30040 |
RT13#,TT13#..(HT,LB,SED)..(ARL,GEN,PHL) |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-14010 |
RT13#,TT13#,XT130 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-14010 |
RT13#,TT13#,XT130 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-14010 |
RT13#,TT13#,XT130 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-14010 |
RT13#,TT13#,XT130 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02038 |
RT13#,TT13#,XT130 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02038 |
RT13#,TT13#,XT130 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02038 |
RT13#,TT13#,XT130 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02038 |
RT13#,TT13#,XT130 |
8 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02037 |
RT13#,TT13#,XT130 |
2 | ||
| 48817C - COLLAR(FOR STABILIZER BAR) | ||||
| 90387-09112 |
RT13#,TT13#,XT130 |
2 | ||
| 48817D - BOLT(FOR FRONT STABILIZER) | ||||
| 90101-08040 |
RT130..SED..LEF..GEN TAXI SPEC |
2 | ||
| 90101-08274 |
RT132..LNK;RT130..WG..PHL;RT130..LNK..PHL;RT130,TT13#,XT130..ARL,EUR,GEN |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-14030 |
RT13#,TT13#,XT130 |
2 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 90170-16183 | ||||
| 90179-10016 | ||||
| 91611-60825 | ||||
| 94182-10800 | ||||
| 94512-01600 | ||||
| 94531-01000 | ||||

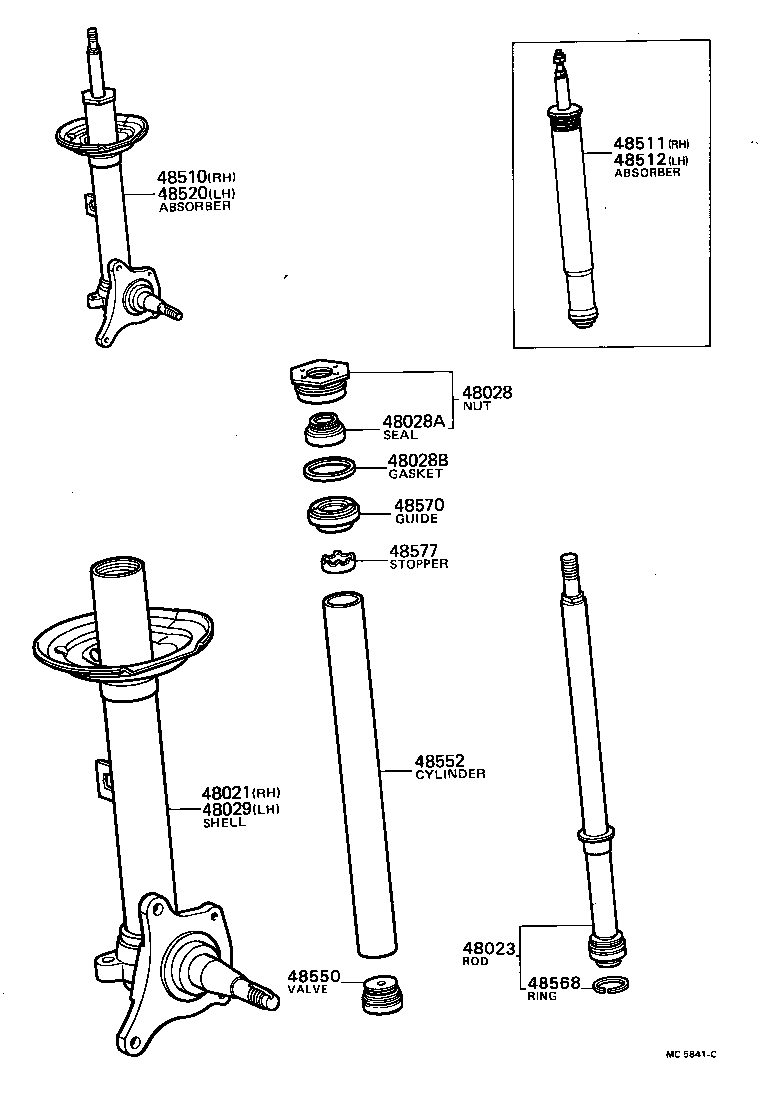

(7809- )RT13#,TT13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48021 - SHELL SUB-ASSY, W/STEERING KNUCKLE, RH | ||||
| 48021-20060 |
RT130,TT133..SED..LEF..GEN TAXI SPEC |
1 | ||
| 48021-20020 |
RT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL |
1 | ||
| 48023 - ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT) | ||||
| 48023-20010 |
RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL;RT132..(3FC,4F)..LNK |
2 | ||
| 48023-20030 |
RT130..SED..LEF..GEN TAXI SPEC |
2 | ||
| 48028 - NUT SUB-ASSY, SHOCK ABSORBER RING | ||||
| 48028-22020 |
RT130,TT133..SED..LEF..GEN TAXI SPEC |
2 | ||
| 48028-20020 |
RT132..LNK;RT130..WG..PHL;RT130..LNK..PHL;RT130,TT13#..EUR,GEN |
2 | ||
| 48028A - SEAL, OIL(FOR SHOCK ABSORBER RING NUT) | ||||
| 90316-25001 |
RT130,TT133..SED..LEF..GEN TAXI SPEC |
2 | ||
| 90316-22003 |
RT132..LNK;RT130..WG..PHL;RT130..LNK..PHL;RT130,TT13#..EUR,GEN |
2 | ||
| 48028B - GASKET(FOR SHOCK ABSORBER RING NUT) | ||||
| 90430-40001 |
RT132..LNK;RT130..WG..PHL;RT130..LNK..PHL;RT130,TT13#..EUR,GEN |
2 | ||
| 90430-44001 |
RT130,TT133..SED..LEF..GEN TAXI SPEC |
2 | ||
| 48029 - SHELL SUB-ASSY, W/STEERING KNUCKLE, LH | ||||
| 48029-20020 |
RT132..LNK;RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL |
1 | ||
| 48029-20060 |
RT130,TT133..SED..LEF..GEN TAXI SPEC |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-20020 |
RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL;RT132..(3FC,4F)..LNK |
1 | ||
| 48510-20060 |
RT130..SED..LEF..GEN TAXI SPEC |
1 | ||
| 48511 - ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE) | ||||
| 48511-20040 |
RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL;RT132..(3FC,4F)..LNK |
1 | ||
| 48512 - ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE) | ||||
| 48511-20040 |
RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL;RT132..(3FC,4F)..LNK |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-20060 |
RT130..SED..LEF..GEN TAXI SPEC |
1 | ||
| 48520-20020 |
RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL;RT132..(3FC,4F)..LNK |
1 | ||
| 48550 - VALVE ASSY, SHOCK ABSORBER BASE | ||||
| 48550-20010 |
RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL;RT132..(3FC,4F)..LNK |
2 | ||
| 48550-20020 |
RT130,TT133..SED..LEF..GEN TAXI SPEC |
2 | ||
| 48552 - CYLINDER, SHOCK ABSORBER(FOR FRONT) | ||||
| 48552-20030 |
RT130..SED..LEF..GEN TAXI SPEC |
2 | ||
| 48552-20010 |
RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL;RT132..(3FC,4F)..LNK |
2 | ||
| 48568 - RING, SHOCK ABSORBER PISTON | ||||
| 48568-22010 |
RT130..GEN;RT130..WG..PHL;RT130..LNK..PHL;RT132..(3FC,4F)..LNK |
2 | ||
| 48568-20010 |
RT130,TT133..SED..LEF..GEN TAXI SPEC |
2 | ||
| 48570 - GUIDE ASSY, SHOCK ABSORBER ROD | ||||
| 48022-22010 |
RT132..LNK;RT130..WG..PHL;RT130..LNK..PHL;RT130,TT13#..EUR,GEN |
2 | ||
| 48022-22020 |
RT130..SED..LEF..GEN TAXI SPEC |
2 | ||
| 48577 - STOPPER, SHOCK ABSORBER REBOUND | ||||
| 48577-22010 |
RT130,TT133..SED..LEF..GEN TAXI SPEC |
2 | ||
| 48577-22021 |
RT132..LNK;RT130..WG..PHL;RT130..LNK..PHL;RT130,TT13#..EUR,GEN |
2 | ||

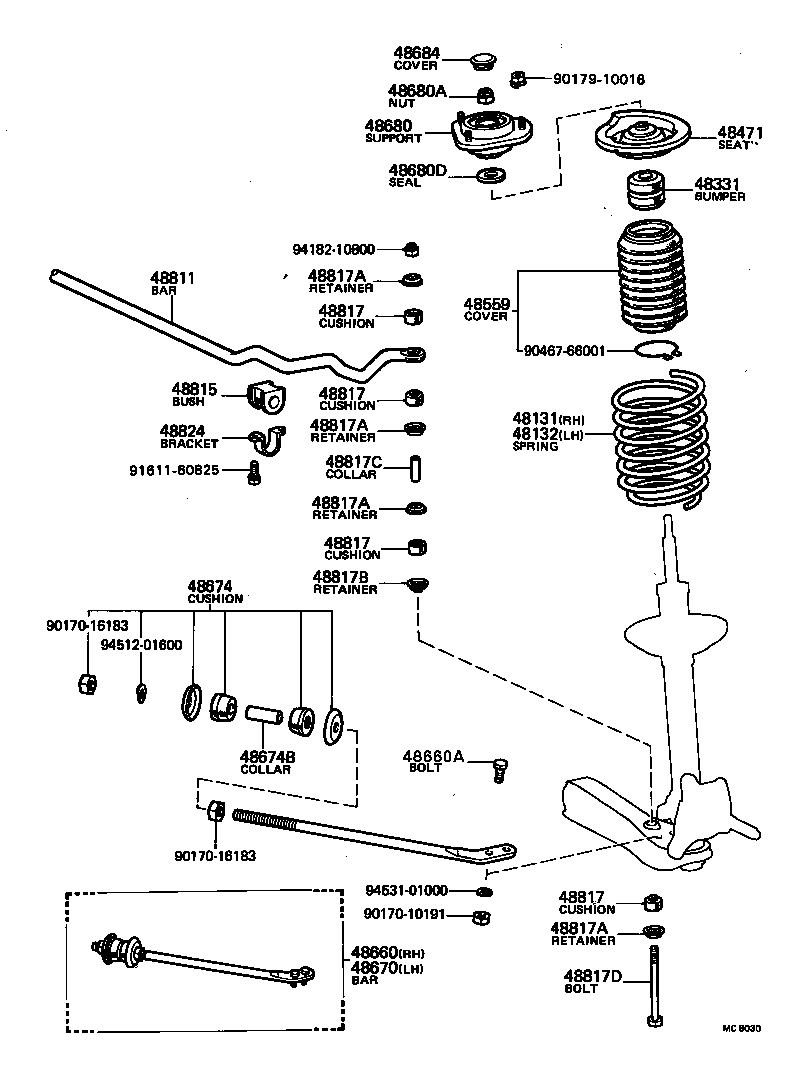

(7809-7909)RT132..LEF ; (7809-7909)RT130,TT133..SED..LEF ; (7909-8205)RT130,TT133..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-20410 |
RT130,TT133..SED..LHD..LEF TAXI SPEC |
1 | ||
| 48131-20390 |
RT130,TT133..LHD |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-20430 |
RT130,TT133..SED..LHD..LEF TAXI SPEC |
1 | ||
| 48131-20410 |
RT130,TT133..LHD |
1 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-22030 |
RT130,TT133..SED..LEF..GEN TAXI SPEC |
2 | ||
| 48331-14020 |
RT132..LNK;RT130..WG..PHL;RT130..LNK..PHL;RT130,TT132..EUR,GEN |
2 | ||
| 48471 - SEAT, FRONT SPRING, UPPER | ||||
| 48044-14020 |
RT132..LNK;RT130..WG..PHL;RT130..LNK..PHL;RT130,TT132..EUR,GEN |
2 | ||
| 48044-20010 |
RT130,TT133..SED..LEF..GEN TAXI SPEC |
2 | ||
| 48559 - COVER, SHOCK ABSORBER, DUST | ||||
| 48304-22020 |
RT130,TT133..SED..LEF..GEN TAXI SPEC |
2 | ||
| 48660 - BAR ASSY, STRUT, RH | ||||
| 48660-29045 |
RT13#,TT13#..ARL,GEN,PHL |
1 | ||
| 48660A - BOLT(FOR STRUT BAR SETTING) | ||||
| 90101-10148 |
RT13#,TT132 *10-1.25PX27-16 |
2 | ||
| 90114-10003 |
RT13#,TT132 *10-1.25PX26-15 |
2 | ||
| 48670 - BAR ASSY, STRUT, LH | ||||
| 48670-29045 |
RT13#,TT13#..ARL,GEN,PHL |
1 | ||
| 48674 - CUSHION, STRUT BAR | ||||
| 48674-19058 |
RT13#,TT13#..ARL,GEN,PHL |
2 | ||
| 48674B - COLLAR(FOR STRUT BAR CUSHION) | ||||
| 90387-16108 |
RT133..GL;RT130,132,TT13# |
2 | ||
| 48680 - SUPPORT ASSY, FRONT SUSPENSION | ||||
| 48609-20030 |
RT132..LNK;RT130..WG..PHL;RT130..LNK..PHL;RT130,TT132..EUR,GEN TOYO |
2 | ||
| 48609-20010 |
RT130,TT133..SED..LEF..GEN TAXI SPEC |
2 | ||
| 48609-14011 |
RT132..LNK;RT130..WG..PHL;RT130..LNK..PHL;RT130,TT132..EUR,GEN MARUYASU |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94182-11400 |
RT13#,TT13# |
2 | ||
| 48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90303-22049 |
RT13#,TT13# |
1 | ||
| 48684 - COVER, BEARING DUST | ||||
| 48684-10010 |
RT13#,TT13# |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-14110 |
RT13#,TT13#..(HT,LB,SED)..(ARL,GEN,PHL) |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-30040 |
RT13#,TT13#..(HT,LB,SED)..(ARL,GEN,PHL) |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-14010 |
RT13#,TT13#,XT130 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-14010 |
RT13#,TT13#,XT130 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-14010 |
RT13#,TT13#,XT130 |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-14010 |
RT13#,TT13#,XT130 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02038 |
RT13#,TT13#,XT130 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02038 |
RT13#,TT13#,XT130 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02038 |
RT13#,TT13#,XT130 |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02038 |
RT13#,TT13#,XT130 |
8 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02037 |
RT13#,TT13#,XT130 |
2 | ||
| 48817C - COLLAR(FOR STABILIZER BAR) | ||||
| 90387-09112 |
RT13#,TT13#,XT130 |
2 | ||
| 48817D - BOLT(FOR FRONT STABILIZER) | ||||
| 90101-08040 |
RT130..SED..LEF..GEN TAXI SPEC |
2 | ||
| 90101-08274 |
RT132..LNK;RT130..WG..PHL;RT130..LNK..PHL;RT130,TT13#,XT130..ARL,EUR,GEN |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-14030 |
RT13#,TT13#,XT130 |
2 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 90170-16183 | ||||
| 90179-10016 | ||||
| 90467-66001 | ||||
| 91611-60825 | ||||
| 94182-10800 | ||||
| 94512-01600 | ||||
| 94531-01000 | ||||
