RT130L-TEKDSY (1978)

Toyota Corona

Production Sep 1978 - Aug 1979
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8008)RT13#,TT132..MTM ; (8008-8108)RT13#,TT132..MTM..ARL,GEN,PHL ; (8108-8205

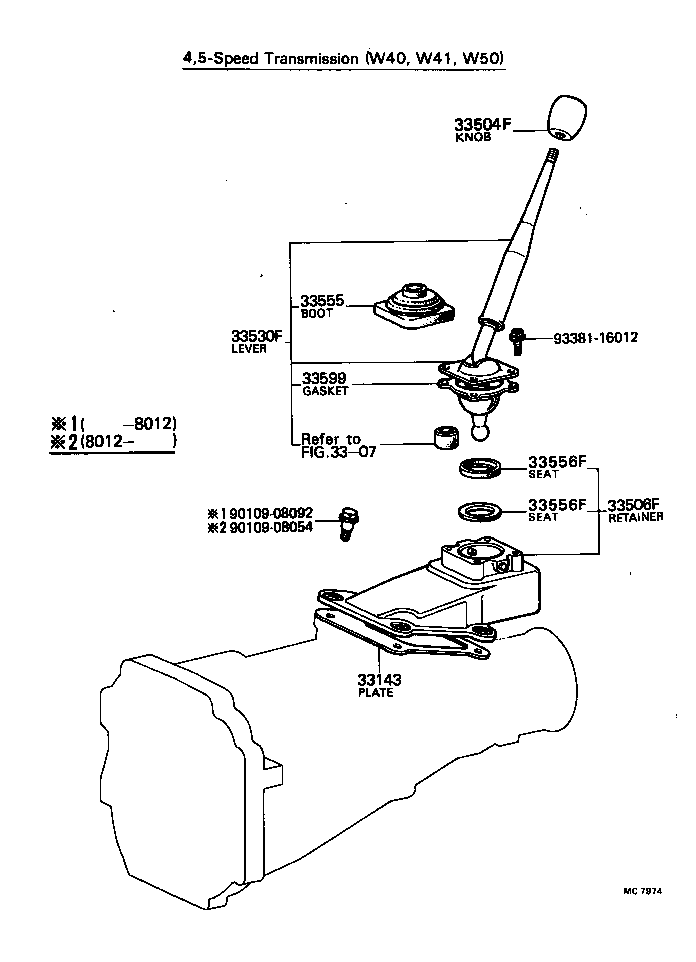

Click highlighted areas on diagram

diagram 3307 33143 33504F 33506F 33530F 33555 33556F 33556F 33599 9010908054 9010908092 9338116012
Part # Description Qty Price
33143 - PLATE, EXTENSION HOUSING OIL BAFFLE
33143-20030

RT13#,TT132..MTM

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-2210001

RT13#,TT13#..4F..(DLX,STD)

BLACK,BLACK,TRIM2#

 1
33504-2210005

RT13#,TT13#..4F..(DLX,STD)

BEIGE,BEIGE,TRIM4#

 1
33504-2210002

RT13#,TT13#..4F..(DLX,STD)

DARK WINE,RED/MAROON,TRIM3#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33570-21010

RT13#,TT132..MTM

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-20141

RT13#,TT132..LHD..4F

 1
33555 - BOOT, SHIFT LEVER
33555-31011

RT13#,TT132..MTM

 1
33556F - SEAT, TRANSMISSION SHIFT LEVER BALL
33556-20010

RT13#,TT132..MTM

T=3.0

 1
33556-22010

RT13#,TT132..MTM

T=6.5

 1
33556F - SEAT, TRANSMISSION SHIFT LEVER BALL
33556-20010

RT13#,TT132..MTM

T=3.0

 1
33556-22010

RT13#,TT132..MTM

T=6.5

 1
33599 - GASKET, CONTROL SHIFT LEVER RETAINER, NO.2
33584-31020

RT13#,TT132..MTM

 1
Common parts
90109-08054
90109-08092
93381-16012
Linked diagrams
3307
