RT130L-TEKDSY (1978)

Toyota Corona

Production Sep 1978 - Aug 1979
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8112)RT130

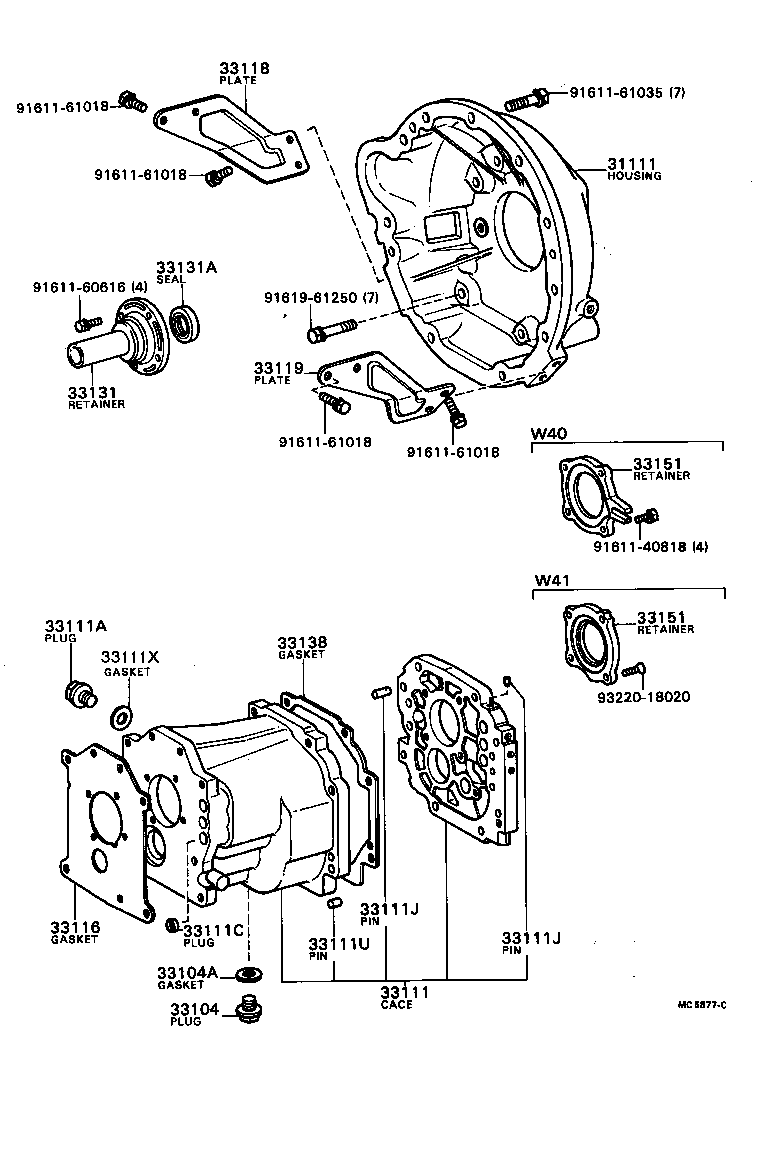

Click highlighted areas on diagram

diagram 31111 33104 33104A 33111 33111A 33111C 33111J 33111J 33111U 33111X 33116 33118 33119 33131 33131A 33138 33151 33151 9161140818 9161160616 9161161018 9161161018 9161161018 9161161018 9161161035 9161961250 9322018020
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-20070

RT130

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

RT13#,TT132..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
12157-10010

RT13#,TT13#..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33101-20011

RT13#,TT132..MTM

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18002

RT13#,TT13#..MTM

 1
33111C - PLUG(FOR TRANSMISSION CASE)
90331-20044

RT13#,TT132..MTM

 3
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12195

RT13#,TT132..MTM

OD=12,L=39

 2
90334-06017

RT13#,TT132..MTM

OD=6,L=11

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12195

RT13#,TT132..MTM

OD=12,L=39

 2
90334-06017

RT13#,TT132..MTM

OD=6,L=11

 1
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-13017

RT13#,TT132..MTM

L=12,OD=13

 2
33111X - GASKET, TRANSMISSION CASE PLUG
12157-10010

RT13#,TT13#..MTM

 1
33116 - GASKET, MANUAL TRANSMISSION CASE
33132-20040

RT13#,TT132..MTM

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-20030

RT130

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-20030

RT130

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-31010

RT13#,TT132..MTM

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30115

RT13#,TT132..MTM

 1
33138 - GASKET, INTERMEDIATE PLATE
33142-31010

RT13#,TT132..4F

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-31010

RT13#,TT132..4F

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-31010

RT13#,TT132..4F

 1
Common parts
91611-40818
91611-60616
91611-61018
91611-61035
91619-61250
93220-18020
