Toyota Corona RT118 BRAKE TUBE & CLAMP

Manufacturers Home
Toyota
GR
CORONA
RT118L-KRFW (1974)
4708 - BRAKE TUBE & CLAMP

RT118L-KRFW (1974)

Toyota Corona

Production Sep 1974 - Sep 1975

Engine 18R

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(7308-7605)RT10#,117,118 ; (7605-7905)RT102,104,118..ARL,EUR,SA

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-20260	RT100..LHD..GEN;RT100..STD..PHL;RT102,104,110,112,116,117,118..LHD TANDEM	08/1973 - 05/1976	1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10134	RT100..LHD..GEN;RT100..DLX..PHL;RT102,104,11#..LHD TANDEM	08/1973 - 05/1976	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02210	RT10#,11# L=355	08/1973 - 12/1973	2
90947-02209	RT102,104,117,118..LHD..(3FC,4F) FOR DRUM	08/1973 - 05/1976	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02210	RT10#,11# L=355	08/1973 - 12/1973	2
90947-02209	RT102,104,117,118..LHD..(3FC,4F) FOR DRUM	08/1973 - 05/1976	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-20080	RT104..3FC..EUR;RT100,102,110,112,116,117,118..LHD TANDEM	08/1973 - 09/1975	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-20170	RT100..LHD..GEN;RT100..STD..PHL;RT102,104,110,112,116,117,118..LHD TANDEM	08/1973 - 05/1976	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-21160	RT116,117,118..LHD	08/1973 - 09/1975	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96910-31383	RT116,117,118 L=390	08/1973 - 04/1974	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-23020	RT118..EUR	09/1974 - 09/1975	1
47318A - WAY(FOR REAR RH BRAKE TUBE)
90413-10120	RT116,117,118	08/1973 - 05/1979	1
47319 - TUBE, FRONT BRAKE, NO.9
47319-23020	RT118..EUR	09/1974 - 09/1975	1
47332 - TUBE, REAR BRAKE, NO.11
47332-20070	RT104..3FC;RT104..RHD..4F;RT102,114,117,118..ARL,EUR,SA	08/1973 - 09/1975	1
47334 - TUBE, REAR BRAKE, NO.13
47334-20070	RT104..3FC;RT104..RHD..4F;RT102,114,117,118..ARL,EUR,SA	08/1973 - 09/1975	1
47341 - COVER, TUBE
47341-20010	RT10#,11#	08/1973 - 11/1973	4
Common parts
90119-06128
90461-06957
90464-00018
90947-03001
91611-40614
91611-40635
91611-40840
91611-60825
91651-40610
96990-10060

(7308-7610)RHD ; (7610-7905)RT10#,114,116,118

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-20260	RT100..LHD..GEN;RT100..STD..PHL;RT102,104,110,112,116,117,118..LHD TANDEM	08/1973 - 05/1976	1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10134	RT100..LHD..GEN;RT100..DLX..PHL;RT102,104,11#..LHD TANDEM	08/1973 - 05/1976	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02210	RT10#,11# L=355	08/1973 - 12/1973	2
90947-02209	RT102,104,117,118..LHD..(3FC,4F) FOR DRUM	08/1973 - 05/1976	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02210	RT10#,11# L=355	08/1973 - 12/1973	2
90947-02209	RT102,104,117,118..LHD..(3FC,4F) FOR DRUM	08/1973 - 05/1976	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-20080	RT104..3FC..EUR;RT100,102,110,112,116,117,118..LHD TANDEM	08/1973 - 09/1975	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-20170	RT100..LHD..GEN;RT100..STD..PHL;RT102,104,110,112,116,117,118..LHD TANDEM	08/1973 - 05/1976	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-21160	RT116,117,118..LHD	08/1973 - 09/1975	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96910-31383	RT116,117,118 L=390	08/1973 - 04/1974	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-23020	RT118..EUR	09/1974 - 09/1975	1
47318A - WAY(FOR REAR RH BRAKE TUBE)
90413-10120	RT116,117,118	08/1973 - 05/1979	1
47319 - TUBE, FRONT BRAKE, NO.9
47319-23020	RT118..EUR	09/1974 - 09/1975	1
47332 - TUBE, REAR BRAKE, NO.11
47332-20070	RT104..3FC;RT104..RHD..4F;RT102,114,117,118..ARL,EUR,SA	08/1973 - 09/1975	1
47332A - WAY(FOR BRAKE WHEEL CYLINDER FRONT RH TUBE)
90412-10067	RT102,104,114,117,118..ARL,EUR,SA	08/1973 - 05/1979	1
47334 - TUBE, REAR BRAKE, NO.13
47334-20070	RT104..3FC;RT104..RHD..4F;RT102,114,117,118..ARL,EUR,SA	08/1973 - 09/1975	1
47334A - WAY(FOR BRAKE WHEEL CYLINDER FRONT LH TUBE)
90412-10068	RT102,104,114,117,118..ARL,EUR,SA	08/1973 - 05/1979	1
47341 - COVER, TUBE
47341-20010	RT10#,11#	08/1973 - 11/1973	4
47341 - COVER, TUBE
47341-20010	RT10#,11#	08/1973 - 11/1973	4
Common parts
90119-06128
90461-06957
90464-00018
90947-03001
91611-40614
91611-40635
91611-40840
91611-60825
91651-40610
96990-10060

(7308-7905)LHD ; (7308-7905)ARL,SA

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-20260	RT100..LHD..GEN;RT100..STD..PHL;RT102,104,110,112,116,117,118..LHD TANDEM	08/1973 - 05/1976	1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10134	RT100..LHD..GEN;RT100..DLX..PHL;RT102,104,11#..LHD TANDEM	08/1973 - 05/1976	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02210	RT10#,11# L=355	08/1973 - 12/1973	2
90947-02209	RT102,104,117,118..LHD..(3FC,4F) FOR DRUM	08/1973 - 05/1976	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02210	RT10#,11# L=355	08/1973 - 12/1973	2
90947-02209	RT102,104,117,118..LHD..(3FC,4F) FOR DRUM	08/1973 - 05/1976	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-20080	RT104..3FC..EUR;RT100,102,110,112,116,117,118..LHD TANDEM	08/1973 - 09/1975	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-20170	RT100..LHD..GEN;RT100..STD..PHL;RT102,104,110,112,116,117,118..LHD TANDEM	08/1973 - 05/1976	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-21160	RT116,117,118..LHD	08/1973 - 09/1975	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96910-31383	RT116,117,118 L=390	08/1973 - 04/1974	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-23020	RT118..EUR	09/1974 - 09/1975	1
47318A - WAY(FOR REAR RH BRAKE TUBE)
90413-10120	RT116,117,118	08/1973 - 05/1979	1
47319 - TUBE, FRONT BRAKE, NO.9
47319-23020	RT118..EUR	09/1974 - 09/1975	1
47332 - TUBE, REAR BRAKE, NO.11
47332-20070	RT104..3FC;RT104..RHD..4F;RT102,114,117,118..ARL,EUR,SA	08/1973 - 09/1975	1
47332A - WAY(FOR BRAKE WHEEL CYLINDER FRONT RH TUBE)
90412-10067	RT102,104,114,117,118..ARL,EUR,SA	08/1973 - 05/1979	1
47332A - WAY(FOR BRAKE WHEEL CYLINDER FRONT RH TUBE)
90412-10067	RT102,104,114,117,118..ARL,EUR,SA	08/1973 - 05/1979	1
47334 - TUBE, REAR BRAKE, NO.13
47334-20070	RT104..3FC;RT104..RHD..4F;RT102,114,117,118..ARL,EUR,SA	08/1973 - 09/1975	1
47341 - COVER, TUBE
47341-20010	RT10#,11#	08/1973 - 11/1973	4
Common parts
90461-06955
90464-00018
90468-08127
90947-03001
91111-70640
91611-40614
91611-40812
91611-40825
91651-40610
94531-00600

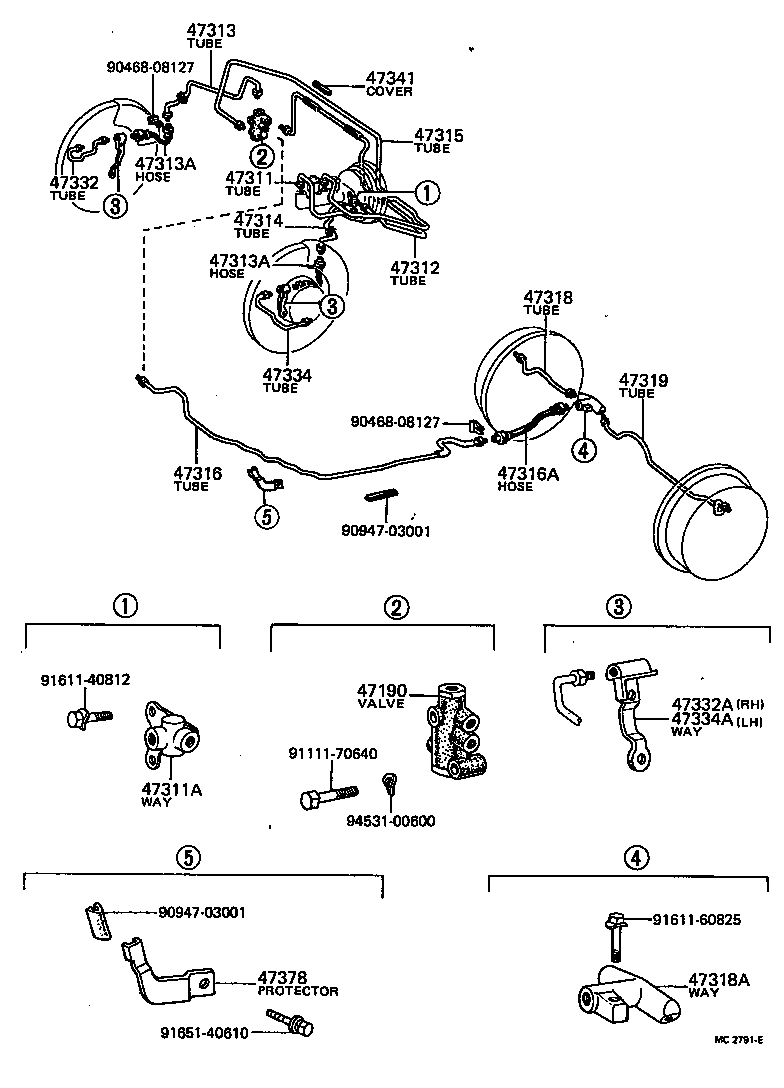

(7308-7808)LHD..EUR

Click highlighted areas on diagram

Part #	Description	Period	Qty
47311 - TUBE, FRONT BRAKE, NO.1
47311-20260	RT100..LHD..GEN;RT100..STD..PHL;RT102,104,110,112,116,117,118..LHD TANDEM	08/1973 - 05/1976	1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10134	RT100..LHD..GEN;RT100..DLX..PHL;RT102,104,11#..LHD TANDEM	08/1973 - 05/1976	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02210	RT10#,11# L=355	08/1973 - 12/1973	2
90947-02209	RT102,104,117,118..LHD..(3FC,4F) FOR DRUM	08/1973 - 05/1976	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02210	RT10#,11# L=355	08/1973 - 12/1973	2
90947-02209	RT102,104,117,118..LHD..(3FC,4F) FOR DRUM	08/1973 - 05/1976	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-20080	RT104..3FC..EUR;RT100,102,110,112,116,117,118..LHD TANDEM	08/1973 - 09/1975	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-20170	RT100..LHD..GEN;RT100..STD..PHL;RT102,104,110,112,116,117,118..LHD TANDEM	08/1973 - 05/1976	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-21160	RT116,117,118..LHD	08/1973 - 09/1975	1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96910-31383	RT116,117,118 L=390	08/1973 - 04/1974	1
47318 - TUBE, FRONT BRAKE, NO.8
47318-23020	RT118..EUR	09/1974 - 09/1975	1
47318A - WAY(FOR REAR RH BRAKE TUBE)
90413-10120	RT116,117,118	08/1973 - 05/1979	1
47319 - TUBE, FRONT BRAKE, NO.9
47319-23020	RT118..EUR	09/1974 - 09/1975	1
47332 - TUBE, REAR BRAKE, NO.11
47332-20070	RT104..3FC;RT104..RHD..4F;RT102,114,117,118..ARL,EUR,SA	08/1973 - 09/1975	1
47332A - WAY(FOR BRAKE WHEEL CYLINDER FRONT RH TUBE)
90412-10067	RT102,104,114,117,118..ARL,EUR,SA	08/1973 - 05/1979	1
47334 - TUBE, REAR BRAKE, NO.13
47334-20070	RT104..3FC;RT104..RHD..4F;RT102,114,117,118..ARL,EUR,SA	08/1973 - 09/1975	1
47334A - WAY(FOR BRAKE WHEEL CYLINDER FRONT LH TUBE)
90412-10068	RT102,104,114,117,118..ARL,EUR,SA	08/1973 - 05/1979	1
47341 - COVER, TUBE
47341-20010	RT10#,11#	08/1973 - 11/1973	4
Common parts
90468-08127
90947-03001
91111-70640
91611-40812
91611-60825
91651-40610
94531-00600

RT118L-KRFW (1974)

(7308-7605)RT10#,117,118 ; (7605-7905)RT102,104,118..ARL,EUR,SA

(7308-7610)RHD ; (7610-7905)RT10#,114,116,118

(7308-7905)LHD ; (7308-7905)ARL,SA

(7308-7808)LHD..EUR
