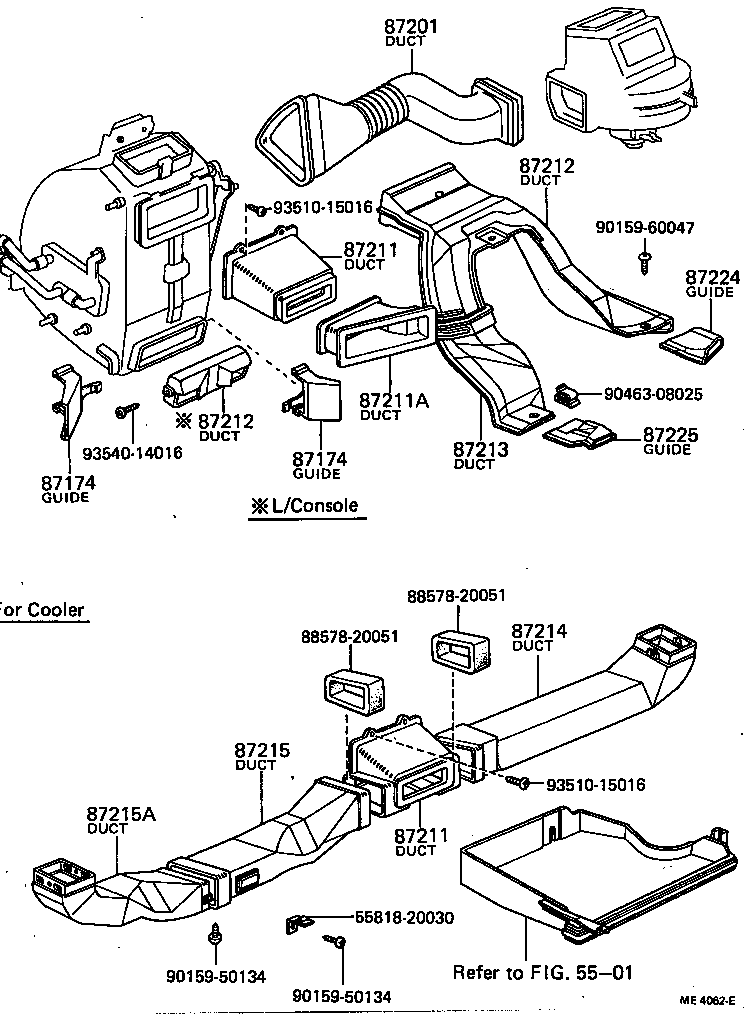

RT118L-KRFW (1975)
Toyota Corona
(7308-7701)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87211-20030 |
RT10#,110,112,116,117,118..LHD |
1 | ||
| 87211-20032 |
RT100,104,114,116,118..LHD |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 55809-20031 |
RT10#,112,114,116,117,118..LHD COOLER |
1 | ||
| 55809-20010 |
RT10#,11# HEATER OR BOOST VENTILATOR |
1 | ||
| 55809-20010 |
RT104,118..EUG;RT10#,114,116,118..ARL,GEN,PHL,SA HEATER OR BOOST VENTILATOR |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 55809-20031 |
RT10#,112,114,116,117,118..LHD COOLER |
1 | ||
| 55809-20010 |
RT10#,11# HEATER OR BOOST VENTILATOR |
1 | ||
| 55809-20010 |
RT104,118..EUG;RT10#,114,116,118..ARL,GEN,PHL,SA HEATER OR BOOST VENTILATOR |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 55844-20010 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-20020 |
RT104,118..LHD..STD..EUG L/CONSOLE |
1 | ||
| 87212-20051 |
RT118..LHD..EUR W/FULL CONSOLE |
1 | ||
| 87212-20040 |
RT102,104,112,114,117,118..LHD W/SEMI CONSOLE |
1 | ||
| 87212-20041 |
RT104,114,118..LHD W/SEMI CONSOLE |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-20020 |
RT104,118..LHD..STD..EUG L/CONSOLE |
1 | ||
| 87212-20051 |
RT118..LHD..EUR W/FULL CONSOLE |
1 | ||
| 87212-20040 |
RT102,104,112,114,117,118..LHD W/SEMI CONSOLE |
1 | ||
| 87212-20041 |
RT104,114,118..LHD W/SEMI CONSOLE |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55808-20040 |
RT10#,112,114,116,117,118..LHD COOLER |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55807-20040 |
RT10#,112,114,116,117,118..LHD COOLER |
1 | ||
| 87215A - DUCT, AIR, SIDE NO.2 LH | ||||
| 55802-20050 |
RT10#,112,114,116,117,118..LHD COOLER |
1 | ||
| Common parts | ||||
| 55818-20030 | ||||
| 88578-20051 | ||||
| 90159-50134 | ||||
| 90159-60047 | ||||
| 90463-08025 | ||||
| 93510-15016 | ||||
| 93540-14016 | ||||
| Linked diagrams | ||||
| 5501 | ||||

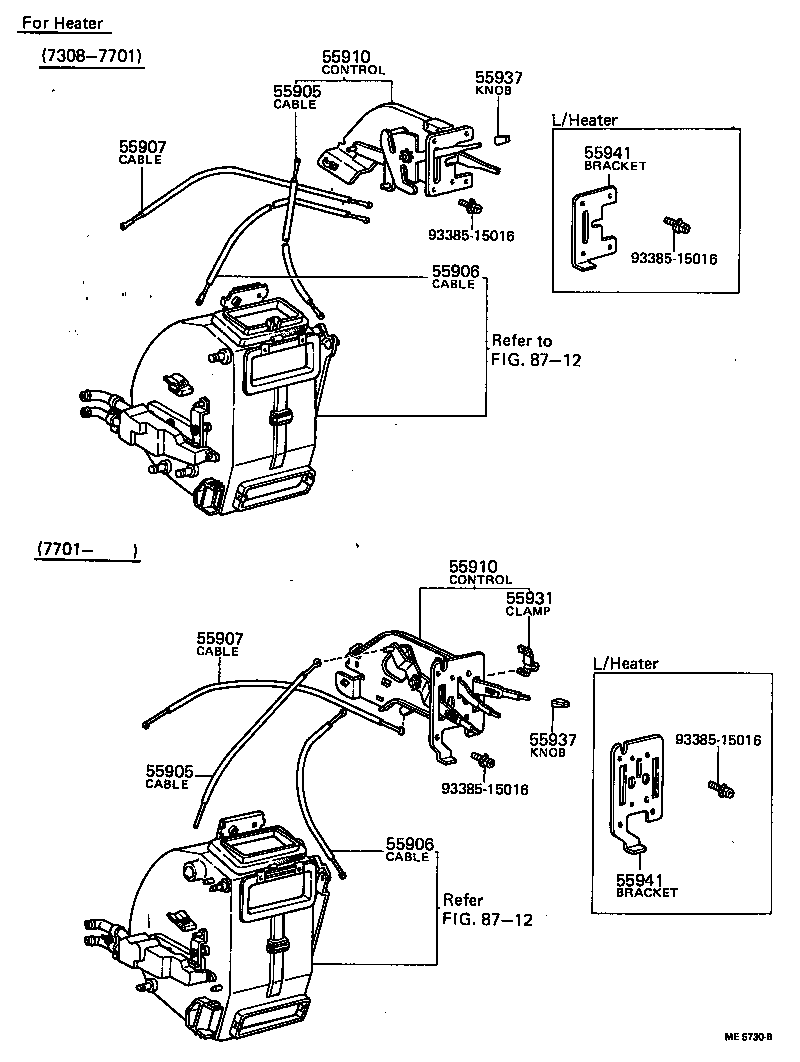

(7308-7905)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905 - CABLE SUB-ASSY, DEFROST CONTROL | ||||
| 55905-20110 |
RT10#,112,114,116,117,118..LHD BOOST VENTILATOR |
1 | ||
| 55906-20071 |
RT104,118..LHD..EUR HEATER |
1 | ||
| 55905-20091 |
RT100,104,114,116,118..LHD HEATER |
1 | ||
| 55905 - CABLE SUB-ASSY, DEFROST CONTROL | ||||
| 55905-20110 |
RT10#,112,114,116,117,118..LHD BOOST VENTILATOR |
1 | ||
| 55906-20071 |
RT104,118..LHD..EUR HEATER |
1 | ||
| 55905-20091 |
RT100,104,114,116,118..LHD HEATER |
1 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 87293-20290 |
RT10#,112,114,116,117,118..LHD HEATER |
1 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 87293-20290 |
RT10#,112,114,116,117,118..LHD HEATER |
1 | ||
| 55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY | ||||
| 55907-20070 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
1 | ||
| 55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY | ||||
| 55907-20070 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55887-20020 |
RT10#,112,114,116,117,118 |
2 | ||
| 55905-20120 |
RT10#,11#..ARL,EUR,GEN,SA |
3 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55887-20020 |
RT10#,112,114,116,117,118 |
2 | ||
| 55905-20120 |
RT10#,11#..ARL,EUR,GEN,SA |
3 | ||
| 55941 - BRACKET, HEATER CONTROL | ||||
| 55946-20020 |
RT100,104,116,118..STD L/HEATER & BOOST VENTILATOR |
1 | ||
| 55941 - BRACKET, HEATER CONTROL | ||||
| 55946-20020 |
RT100,104,116,118..STD L/HEATER & BOOST VENTILATOR |
1 | ||
| Common parts | ||||
| 93385-15016 | ||||
| Linked diagrams | ||||
| 8712 | ||||

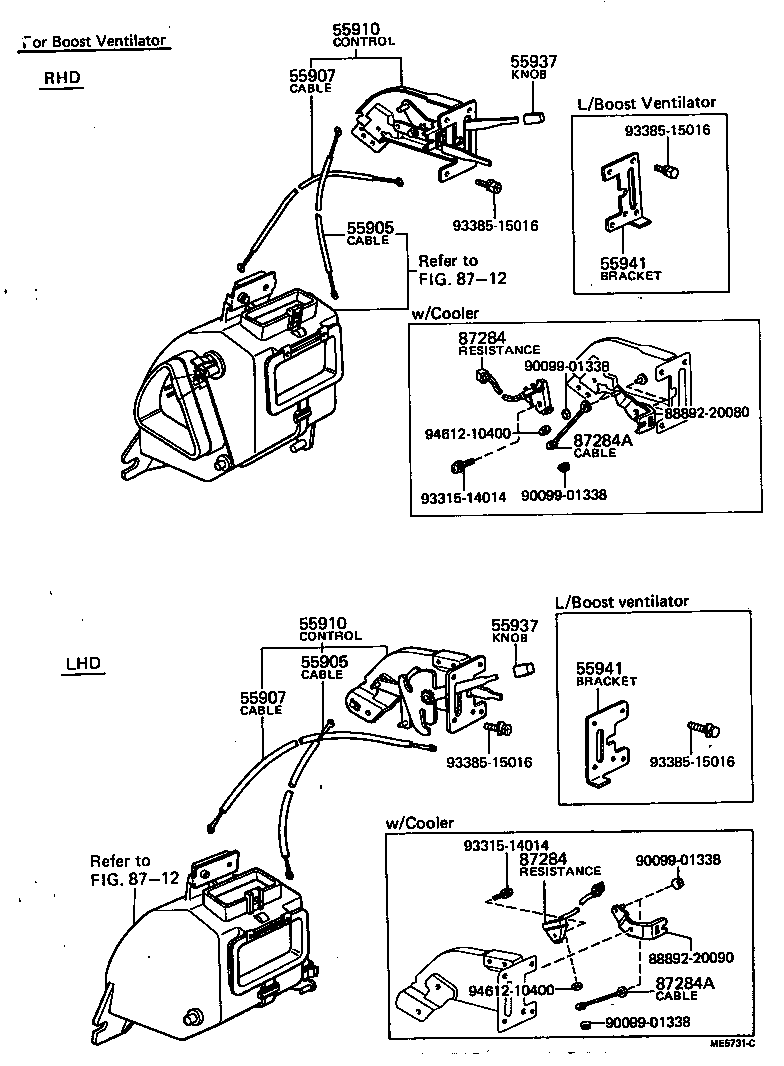

(7308-7701)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905 - CABLE SUB-ASSY, DEFROST CONTROL | ||||
| 55905-20110 |
RT10#,112,114,116,117,118..LHD BOOST VENTILATOR |
1 | ||
| 55906-20071 |
RT104,118..LHD..EUR HEATER |
1 | ||
| 55905-20091 |
RT100,104,114,116,118..LHD HEATER |
1 | ||
| 55905 - CABLE SUB-ASSY, DEFROST CONTROL | ||||
| 55905-20110 |
RT10#,112,114,116,117,118..LHD BOOST VENTILATOR |
1 | ||
| 55906-20071 |
RT104,118..LHD..EUR HEATER |
1 | ||
| 55905-20091 |
RT100,104,114,116,118..LHD HEATER |
1 | ||
| 55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY | ||||
| 55907-20070 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
1 | ||
| 55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY | ||||
| 55907-20070 |
RT10#,112,114,116,117,118..ARL,EUR,GEN,SA |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55887-20020 |
RT10#,112,114,116,117,118 |
2 | ||
| 55905-20120 |
RT10#,11#..ARL,EUR,GEN,SA |
3 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55887-20020 |
RT10#,112,114,116,117,118 |
2 | ||
| 55905-20120 |
RT10#,11#..ARL,EUR,GEN,SA |
3 | ||
| 55941 - BRACKET, HEATER CONTROL | ||||
| 55946-20020 |
RT100,104,116,118..STD L/HEATER & BOOST VENTILATOR |
1 | ||
| 55941 - BRACKET, HEATER CONTROL | ||||
| 55946-20020 |
RT100,104,116,118..STD L/HEATER & BOOST VENTILATOR |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88622-20070 |
RT100,104,114,116,118..LHD FOR BOOST VENTILATOR |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88622-20070 |
RT100,104,114,116,118..LHD FOR BOOST VENTILATOR |
1 | ||
| Common parts | ||||
| 88892-20080 | ||||
| 88892-20090 | ||||
| 90099-01338 | ||||
| 93315-14014 | ||||
| 93385-15016 | ||||
| 94612-10400 | ||||
| Linked diagrams | ||||
| 8712 | ||||
