RT118L-KRFW (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)RT116,117,118

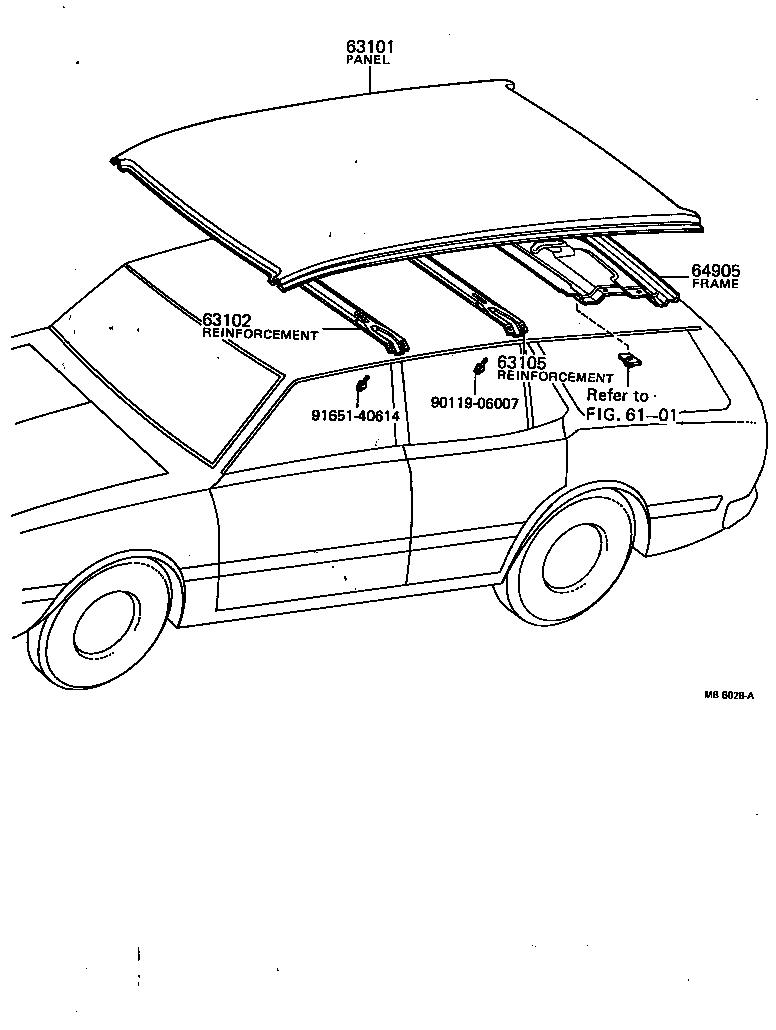

Click highlighted areas on diagram

diagram 6101 63101 63102 63105 64905 9011906007 9165140614
Part # Description Qty Price
63101 - PANEL SUB-ASSY, ROOF
63101-21010

RT116,117,118

 1
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63104-21010

RT116,117,118

 1
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63143-21010

RT116,117,118

 1
64905 - FRAME SUB-ASSY, BACK UPPER
63105-21010

RT116,117,118

 1
Common parts
90119-06007
91651-40614
Linked diagrams
6101
