RT118L-KRFC (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18RC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7706)

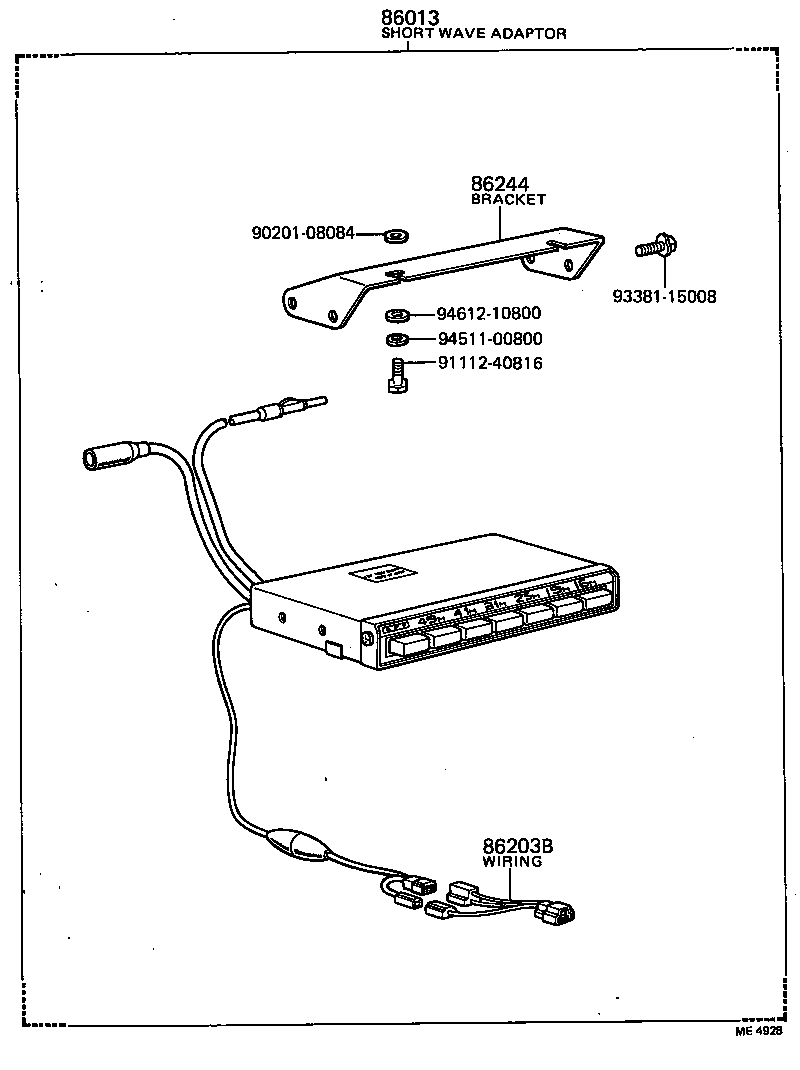

Click highlighted areas on diagram

diagram 86013 86203B 86244 9020108084 9111240816 9338115008 9451100800 9461210800
Part # Description Qty Price
86013 - SHORT WAVE RADIO AND SETTING PARTS SET
86013-20027

RT10#,112,114,116,117,118..EUR,GEN

25-91METER BAND

 1
86013-20017

RT10#,112,114,116,117,118..EUR,GEN

16-49METER BAND

 1
Common parts
90201-08084
91112-40816
93381-15008
94511-00800
94612-10800
