RT118L-KRF (1975)

Toyota Corona

Production Sep 1975 - May 1979
Engine 18R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)RT104,114,118..MTM

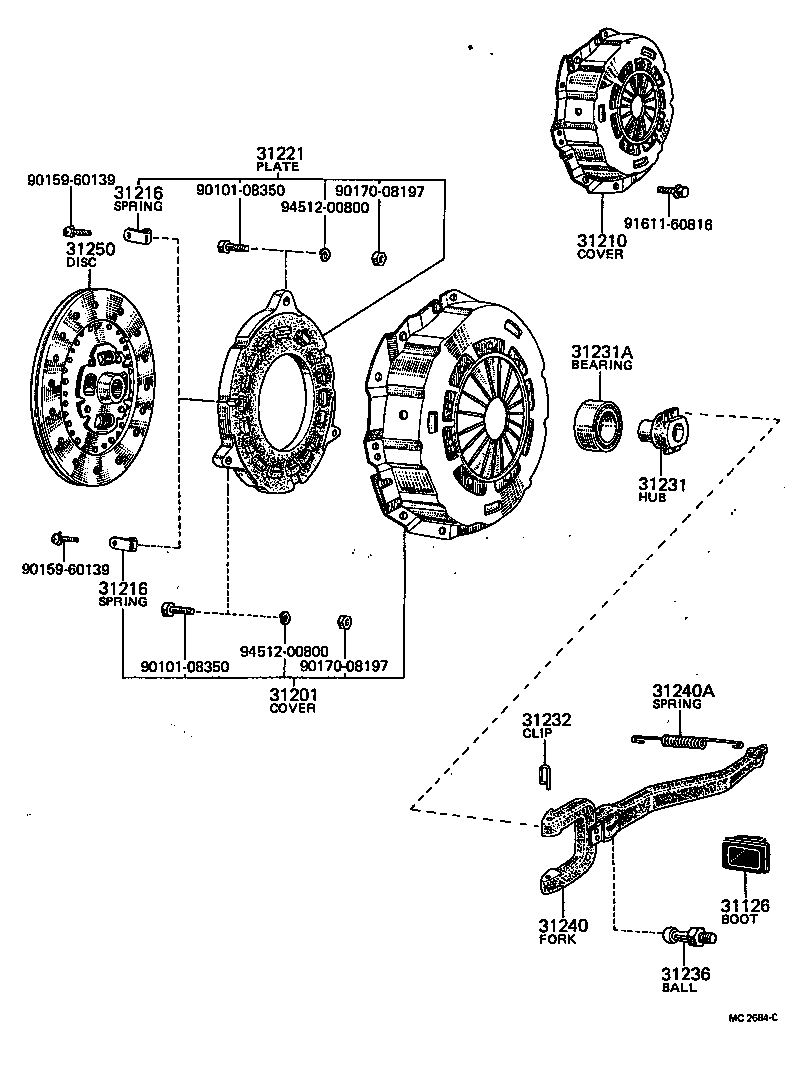

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31231 31231A 31232 31236 31240 31240A 31250 9010108350 9010108350 9015960139 9015960139 9017008197 9017008197 9161160816 9451200800 9451200800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-22030

RT10#,11#..MTM

 1
31201 - COVER SUB-ASSY, CLUTCH
31201-39027

RT104,114,118..4F

 1
31210 - COVER ASSY, CLUTCH
31210-30130

RT104,114,118..4F

 1
31216 - SPRING, CLUTCH RETRACTING
31216-30010

RT104,114,118..MTM

 3
31216 - SPRING, CLUTCH RETRACTING
31216-30010

RT104,114,118..MTM

 3
31221 - PLATE, CLUTCH PRESSURE
31221-39025

RT104,114,118..MTM

 1
31231 - HUB, CLUTCH RELEASE BEARING
31231-20030

RT104,114,118..MTM

 1
31231-22030

RT104,114,118..MTM

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40078

RT10#,11#..MTM

 1
90363-40001

RT102,104,114,118..MTM

 1
90363-40003

RT10#,11#..MTM

 1
90363-40001

RT10#,11#..MTM

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-30010

RT102,104,114,118..MTM

 2
31232-30010

RT10#,11#..MTM

 2
31236 - BALL, RELEASE FORK
31236-20020

RT104,114,118..MTM

 1
31236-20020

RT102,104,114,118..MTM

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20020

RT102,104,112,114,117,118..MTM

 1
31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)
90506-16402

RT102,104,112,114,117,118..MTM

 1
31250 - DISC ASSY, CLUTCH
31250-22042

RT104,114,118..MTM

 1
Common parts
90101-08350
90159-60139
90170-08197
91611-60816
94512-00800
