RT118-KRFQ (1973)
Toyota Corona
Production
Aug 1973
-
May 1979
Engine
18R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7704-7905)18RC

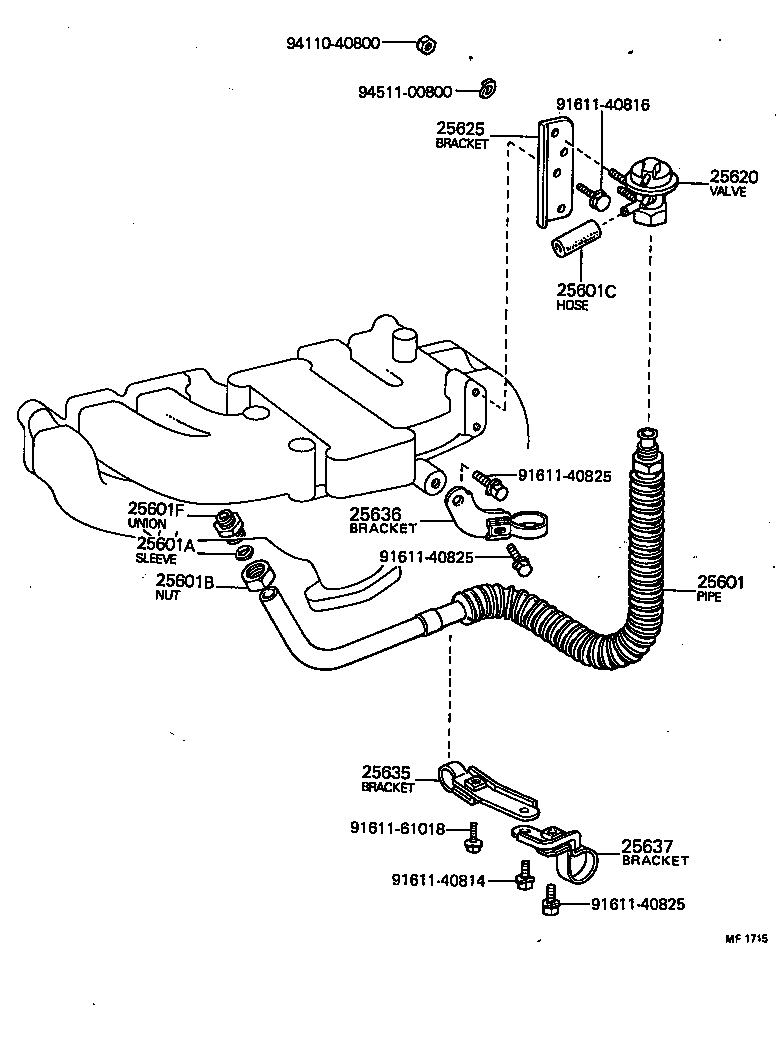

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25601-34040 |
18RC..RT104,118 |
1 | ||
| 25601A - SLEEVE, BALL, EGR PIPE, NO.1 | ||||
| 90410-18038 |
18RC..RT104,118 |
1 | ||
| 25601B - NUT, UNION, EGR PIPE, NO.1 | ||||
| 90402-26074 |
18RC..RT104,118 |
1 | ||
| 25601C - HOSE(FOR EGR PIPE, NO.1) | ||||
| 90445-23004 |
18RC..RT104,118 |
1 | ||
| 90445-19956 |
18RC..RT104,118 |
1 | ||
| 90445-20016 |
18RC..RT104,118 |
1 | ||
| 25601F - UNION(FOR EGR PIPE, NO.1) | ||||
| 90404-26284 |
18RC..RT104,118 |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-34140 |
18RC..RT104,118..MTM |
1 | ||
| 25620-34140 |
18RC..RT104,118..MTM |
1 | ||
| 25620-34130 |
18RC..RT104,118..MTM |
1 | ||
| 25620-34130 |
18RC..RT104,118..MTM |
1 | ||
| 25625 - BRACKET, EGR VALVE | ||||
| 25625-34010 |
18RC..RT104,118 |
1 | ||
| 25635 - BRACKET, EGR PIPE, NO.1 | ||||
| 25635-34021 |
18RC..RT104,118 |
1 | ||
| 25636 - BRACKET, EGR PIPE, NO.2 | ||||
| 25636-34020 |
18RC..RT104,118 |
1 | ||
| 25637 - BRACKET, EGR PIPE, NO.3 | ||||
| 25637-34021 |
18RC..RT104,118 |
1 | ||
| Common parts | ||||
| 91611-40814 | ||||
| 91611-40816 | ||||
| 91611-40825 | ||||
| 91611-61018 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
