Toyota Corona RT118 WATER PUMP - JDM Part Detective

RT118-KRF (1975)

Toyota Corona

Production Sep 1975 - Aug 1978

Engine 18R

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(7308-7701)16R,18R

Click highlighted areas on diagram

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-39135	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
16100-39235	18R#..RT104,114,118..ARL,EUR,GEN	09/1975 - 01/1977	1
16100-39235	16R,18R#..RT102,104,114,118	01/1977 - 02/1977	1
16104 - SEAL SET, WATER PUMP
16104-30011	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
16104-41110	16R,18R#..RT102,104,114,118	09/1975 - 11/1975	1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-34100	18R#..RT104,114,118..ARL,EUR,GEN	09/1975 - 01/1977	1
16110-33010	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
16115 - COVER, WATER PUMP
16115-40010	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
16120 - COVER ASSY, WATER PUMP
16120-33010	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
16120-34100	18R#..RT104,114,118..ARL,EUR,GEN	09/1975 - 01/1977	1
16124 - GASKET, WATER PUMP COVER
16129-33030	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
16131 - ROTOR, WATER PUMP
16131-33010	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
16131A - BEARING, WATER PUMP
90369-30028	16R,18R..RT102,104,112,114,117,118 WPB16112-2RS	08/1973 - 09/1975	1
90369-30005	18R#..RT104,114,118..ARL,EUR,GEN WPB16112-4RS	09/1975 - 01/1977	1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-33030	16R,18R..RT102,104,112,114,117,118 L=20.5,S=5.5&9	08/1973 - 09/1975	5
16202 - PULLEY & BEARING CASE SUB-ASSY, FLUID COUPLING
16202-34041	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
16210 - COUPLING ASSY, FLUID
16210-34041	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
16210-34100	16R,18R#..RT102,104,114,118	01/1977 - 02/1977	1
16210-34100	18R#..RT104,114,118..ARL,EUR,GEN	09/1975 - 01/1977	1
16221 - CASE, FLUID COUPLING
16221-33030	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16241-40030	16R,18R..RT102,104,112,114,117,118 L=35,S=15.5&9.5	08/1973 - 09/1975	4
16243 - WASHER, PLATE(FOR WATER PUMP)
16243-40030	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
16259 - GASKET, FAN
16259-33010	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
16271 - GASKET, WATER PUMP
16271-33010	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
Common parts
16199-33010
90339-16007
90460-25002
91651-60832
91651-60845
93210-16010
93220-16016

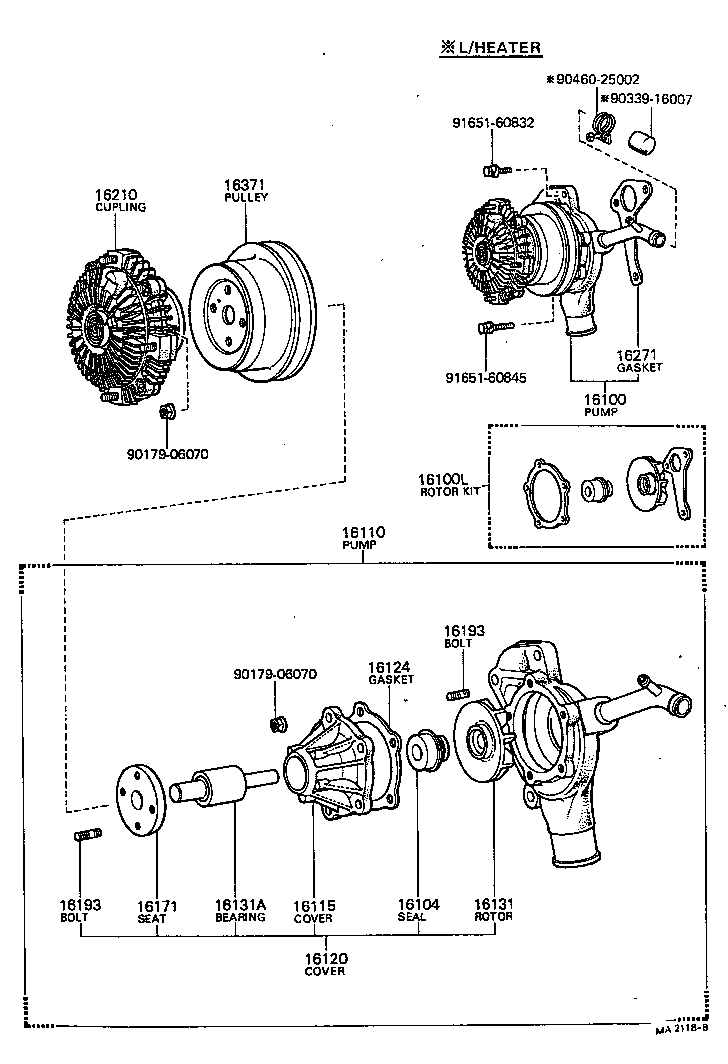

(7509-7701)18R..RT104,118..ARL,EUR ; (7701-7905)16R,18R#

Click highlighted areas on diagram

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-39135	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
16100-39235	18R#..RT104,114,118..ARL,EUR,GEN	09/1975 - 01/1977	1
16100-39235	16R,18R#..RT102,104,114,118	01/1977 - 02/1977	1
16104 - SEAL SET, WATER PUMP
16104-30011	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
16104-41110	16R,18R#..RT102,104,114,118	09/1975 - 11/1975	1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-34100	18R#..RT104,114,118..ARL,EUR,GEN	09/1975 - 01/1977	1
16110-33010	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
16115 - COVER, WATER PUMP
16115-40010	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
16120 - COVER ASSY, WATER PUMP
16120-33010	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
16120-34100	18R#..RT104,114,118..ARL,EUR,GEN	09/1975 - 01/1977	1
16124 - GASKET, WATER PUMP COVER
16129-33030	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
16131 - ROTOR, WATER PUMP
16131-33010	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
16131A - BEARING, WATER PUMP
90369-30028	16R,18R..RT102,104,112,114,117,118 WPB16112-2RS	08/1973 - 09/1975	1
90369-30005	18R#..RT104,114,118..ARL,EUR,GEN WPB16112-4RS	09/1975 - 01/1977	1
16171 - SEAT, WATER PUMP PULLEY
16171-24030	18R#..RT104,114,118..ARL,EUR,GEN	09/1975 - 01/1977	1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-33030	16R,18R..RT102,104,112,114,117,118 L=20.5,S=5.5&9	08/1973 - 09/1975	5
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-33030	16R,18R..RT102,104,112,114,117,118 L=20.5,S=5.5&9	08/1973 - 09/1975	5
16210 - COUPLING ASSY, FLUID
16210-34041	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
16210-34100	16R,18R#..RT102,104,114,118	01/1977 - 02/1977	1
16210-34100	18R#..RT104,114,118..ARL,EUR,GEN	09/1975 - 01/1977	1
16271 - GASKET, WATER PUMP
16271-33010	16R,18R..RT102,104,112,114,117,118	08/1973 - 09/1975	1
16371 - PULLEY, FAN
16173-34100	18R#..RT104,114,118..ARL,EUR,GEN	09/1975 - 01/1977	1
Common parts
90179-06070
90339-16007
90460-25002
91651-60832
91651-60845

RT118-KRF (1975)

(7308-7701)16R,18R

(7509-7701)18R..RT104,118..ARL,EUR ; (7701-7905)16R,18R#
