RT118-KRF (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)16R,18R#

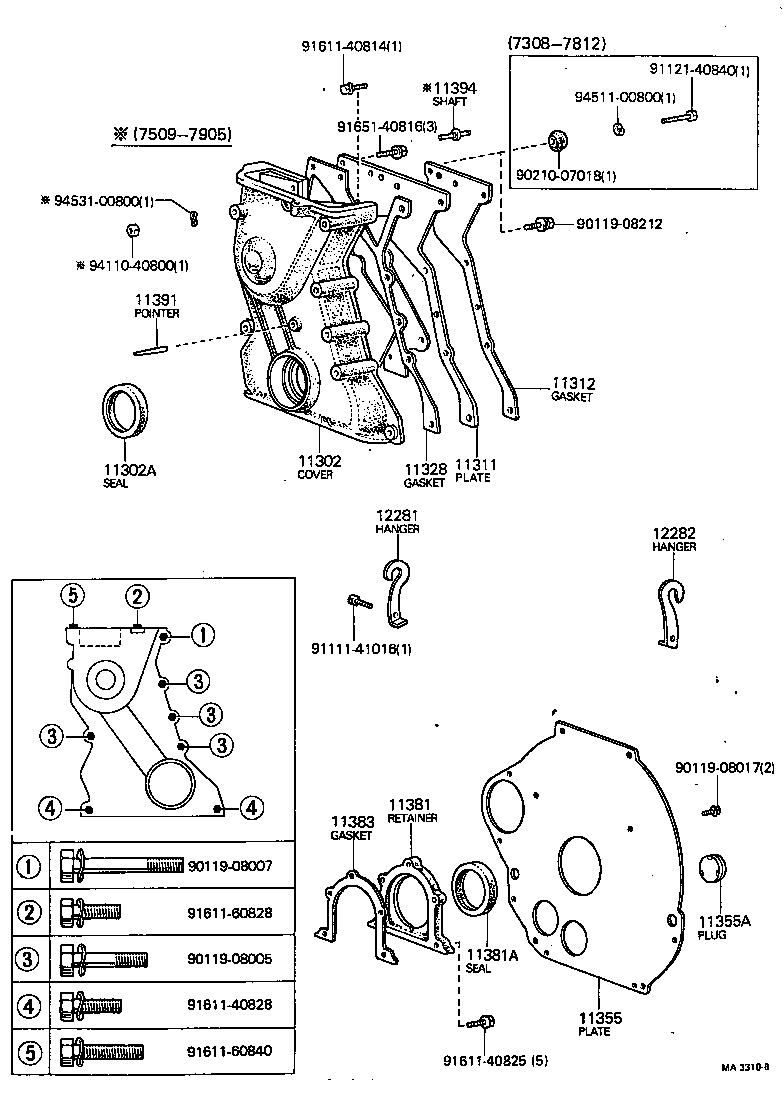

Click highlighted areas on diagram

diagram 11302 11302A 11311 11312 11328 11355 11355A 11381 11381A 11383 11391 11394 12281 12282 9011908005 9011908007 9011908017 9011908212 9021007018 9111141016 9112140840 9161140814 9161140825 9161140828 9161160828 9161160840 9165140816 9411040800 9451100800 9453100800
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-33010

16R,18R..RT102,104,112,114,117,118

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45069

16R,18R..RT102,104,112,114,117,118

TC3 45 68 12

 1
11311 - PLATE, FRONT END
11311-33011

16R,18R..RT102,104,112,114,117,118

 1
11312 - GASKET, FRONT END PLATE
11312-33011

16R,18R..RT102,104,112,114,117,118

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-33013

16R,18R..RT102,104,112,114,117,118

 1
11355 - PLATE, REAR END
11355-33012

16R,18R..RT102,104,112,114,117,118..MTM

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-33010

16R,18R..RT102,104,112,114,117,118

 1
11381-33010

16R,18R#..RT102,104,114,118

 1
11381A - SEAL, ENGINE REAR OIL
90311-80068

16R,18R..RT102,104,112,114,117,118

TC 80 100 12

 1
90311-80068

16R,18R#..RT102,104,114,118

TC 80 100 12

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-33010

16R,18R..RT102,104,112,114,117,118

 1
11391 - POINTER, TIMING
11391-40010

16R,18R..RT102,104,112,114,117,118

 1
11394 - SHAFT, CHAIN TENSHIONER
11394-88210

16R,18R#..RT102,104,114,118

 1
12281 - HANGER, ENGINE, NO.1
88892-22050

16R,18R..RT102,104,112,114,117,118

FOR COOLER

 1
12282-36010

16R,18R..RT102,104,112,114,117,118

 1
12282 - HANGER, ENGINE, NO.2
12282-36010

16R,18R..RT102,104,112,114,117,118

 1
Common parts
90119-08005
90119-08007
90119-08017
90119-08212
90210-07018
91111-41016
91121-40840
91611-40814
91611-40825
91611-40828
91611-60828
91611-60840
91651-40816
94110-40800
94511-00800
94531-00800
