RT117-KRFW (1973)

Toyota Corona

Production Nov 1973 - Sep 1975
Engine 16R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)RT116,117,118

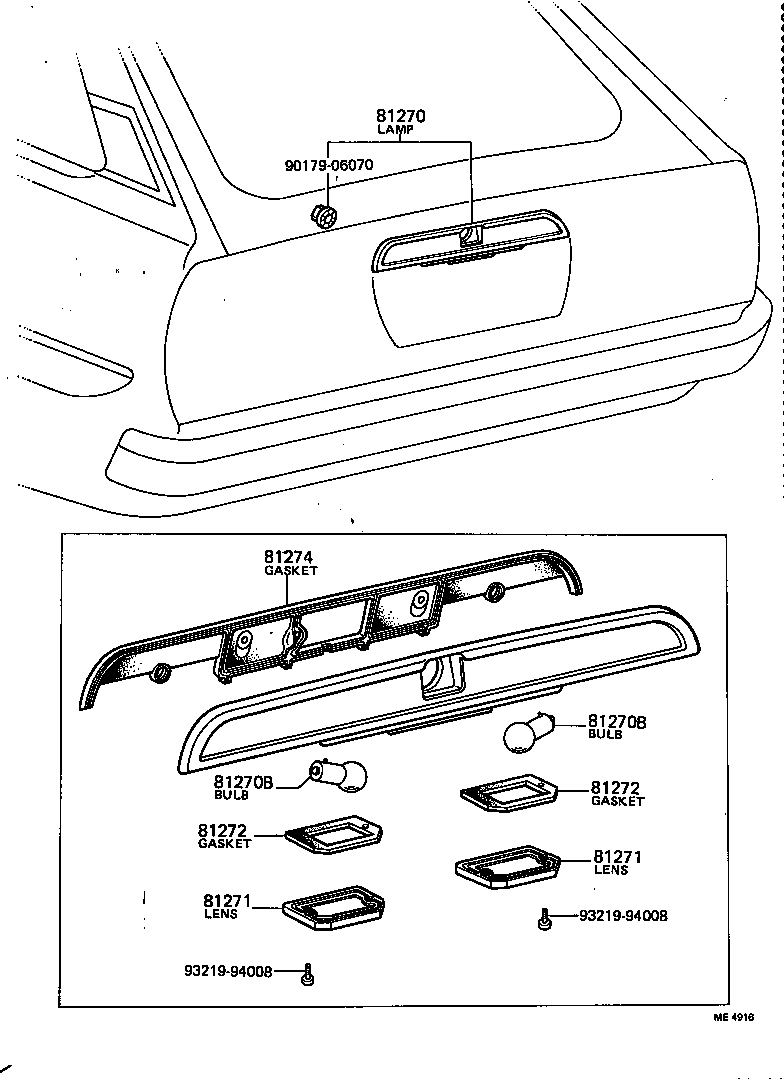

Click highlighted areas on diagram

diagram 81270 81270B 81270B 81271 81271 81272 81272 81274 9017906070 9321994008 9321994008
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-29185

RT116,117,118

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11100

RT10#,11#

12V 10W,12V 10W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11100

RT10#,11#

12V 10W,12V 10W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-21060

RT116,117,118

 2
81271 - LENS, LICENSE PLATE LAMP
81271-21060

RT116,117,118

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-21060

RT116,117,118

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-21060

RT116,117,118

 2
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-21070

RT116,117,118

 1
Common parts
90179-06070
93219-94008
