RT117-KRFW (1973)

Toyota Corona

Production Nov 1973 - Sep 1975
Engine 16R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)RT116,117,118

Click highlighted areas on diagram

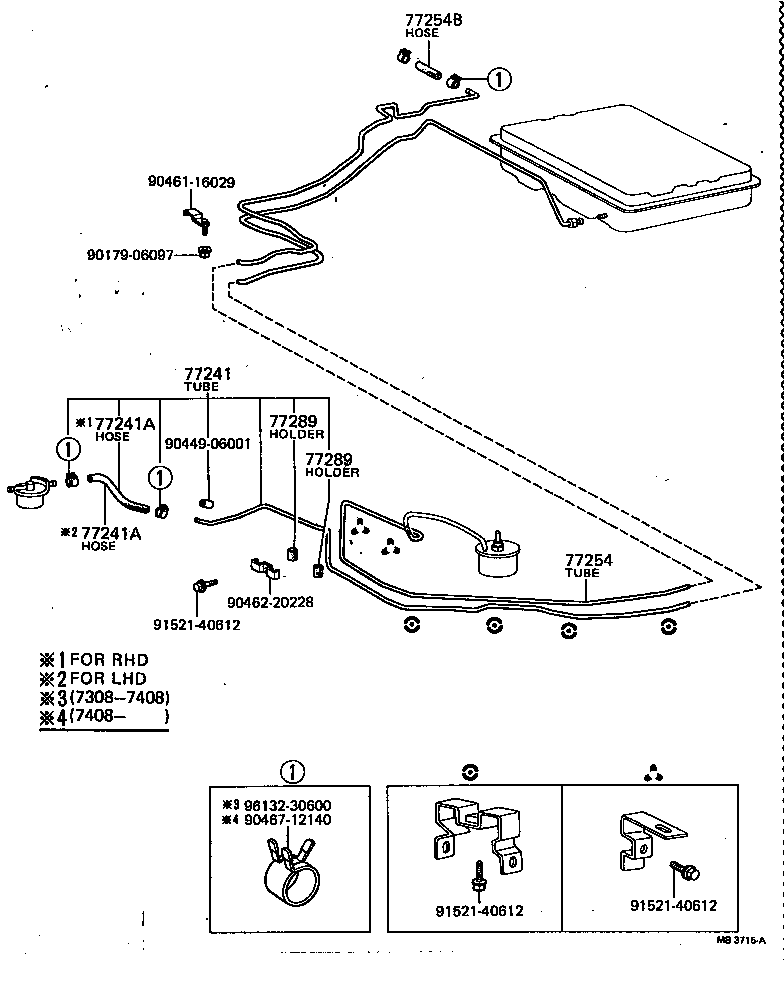

diagram 77241 77241A 77241A 77254 77254B 77289 77289 9017906097 9044906001 9046116029 9046220228 9046712140 9152140612 9152140612 9152140612 9613230600
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77208-21010

RT116,117,118..RHD

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95331-06017

RT10#,11#

*H,L=170

 1
95331-06017

RT100,11#

*H,L=170

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95331-06017

RT10#,11#

*H,L=170

 1
95331-06017

RT100,11#

*H,L=170

 1
77289 - HOLDER, FUEL TANK PIPE SETTING
77273-20010

RT10#,11#

 1
77289 - HOLDER, FUEL TANK PIPE SETTING
77273-20010

RT10#,11#

 1
Common parts
90179-06097
90449-06001
90461-16029
90462-20228
90467-12140
91521-40612
96132-30600

(7308-7905)RT116,117,118

Click highlighted areas on diagram

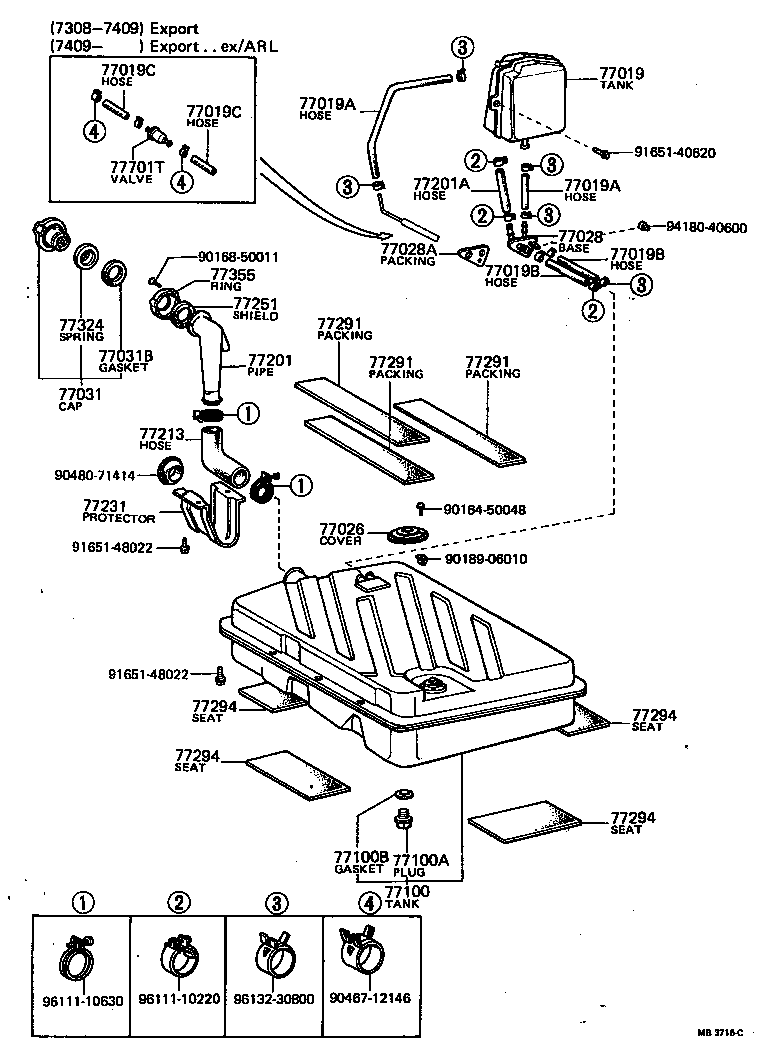

diagram 77019 77019A 77019A 77019B 77019B 77019C 77019C 77026 77028 77028A 77031 77031B 77100 77100A 77100B 77201 77201A 77213 77231 77251 77291 77291 77291 77294 77294 77294 77294 77324 77355 77701T 9016450048 9016850011 9018906010 9046712146 9048071414 9165140620 9165148022 9165148022 9418040600 9611110220 9611110630 9613230800
Part # Description Qty Price
77019 - TANK SUB-ASSY, FUEL EXPANSION
77191-21010

RT116,117,118

 1
77019A - HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK)
95331-08010

RT116,117,118

*H,L=100

 1
95331-08055

RT116,117,118

*H,L=550

 1
77019A - HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK)
95331-08010

RT116,117,118

*H,L=100

 1
95331-08055

RT116,117,118

*H,L=550

 1
77019B - HOSE, FUEL, NO.2(FOR FUEL EXPANSION TANK)
90445-22963

RT116,117,118

L=280,OD=13.5

 1
95331-08028

RT116,117,118

*H,L=280

 1
77019B - HOSE, FUEL, NO.2(FOR FUEL EXPANSION TANK)
90445-22963

RT116,117,118

L=280,OD=13.5

 1
95331-08028

RT116,117,118

*H,L=280

 1
77019C - HOSE, FUEL, NO.3(FOR FUEL EXPANSION TANK)
95331-06006

RT116,117,118

*H,L=60

 2
77019C - HOSE, FUEL, NO.3(FOR FUEL EXPANSION TANK)
95331-06006

RT116,117,118

*H,L=60

 2
77026 - COVER SUB-ASSY, FUEL SENDER GAGE
77029-21010

RT116,117,118

 1
77028 - BASE SUB-ASSY, BREATHER JOINT, NO.1
77028-21010

RT116,117,118

 1
77028A - PACKING, NO.1 (FOR BREATHER JOINT, NO.1)
77293-21010

RT116,117,118

 1
77031 - CAP ASSY, FUEL TANK
77031-21050

RT116,117

W/VALVE,W/KEY

 1
77031-21051

RT116,117,118

W/VALVE,W/KEY

 1
77310-12052

RT10#,116,117,118..STD

W/VALVE,L/KEY

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12030

RT116,117

FOR W/KEY

 1
77316-12040

RT10#,116,117,118..STD

FOR L/KEY

 1
77100 - TANK ASSY, FUEL
77001-21020

RT116,117,118

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

RT10#,11#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12038

RT10#,11#

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-21010

RT116,117,118

 1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
90445-22954

RT116,117,118

L=150

 1
77213 - HOSE, FUEL TANK SUB INLET
77233-21010

RT116,117,118

 1
77231 - PROTECTOR, INLET TUBE
77286-21010

RT116,117,118

 1
77251 - SHIELD, FUEL TANK, INLET, NO.1
77251-12011

RT10#,11#

 1
77291 - PACKING, FUEL TANK SUPPORT, UPPER
77291-21010

RT116,117,118

 3
77291 - PACKING, FUEL TANK SUPPORT, UPPER
77291-21010

RT116,117,118

 3
77291 - PACKING, FUEL TANK SUPPORT, UPPER
77291-21010

RT116,117,118

 3
77294 - SHEET, SPARE TIRE BACK
51912-91601

RT116,117,118

 4
77294 - SHEET, SPARE TIRE BACK
51912-91601

RT116,117,118

 4
77294 - SHEET, SPARE TIRE BACK
51912-91601

RT116,117,118

 4
77294 - SHEET, SPARE TIRE BACK
51912-91601

RT116,117,118

 4
77324 - SPRING, FUEL TANK CAP
77324-12011

RT100,116,117,118

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10020

RT10#,11#

 1
Common parts
90164-50048
90168-50011
90189-06010
90467-12146
90480-71414
91651-40620
91651-48022
94180-40600
96111-10220
96111-10630
96132-30800
