RT116L-KRFM (1975)

Toyota Corona

Production Nov 1975 - Aug 1978
Engine 12RM
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7808)RT100,116

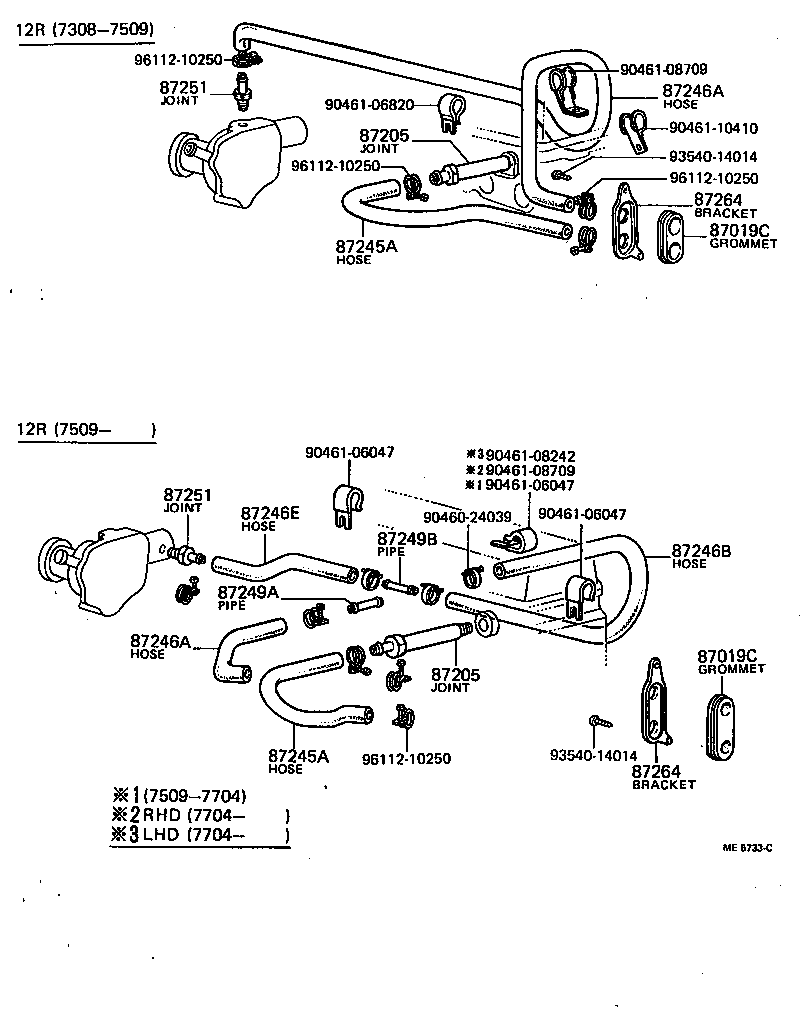

Click highlighted areas on diagram

diagram 87019C 87019C 87205 87205 87245A 87245A 87246A 87246A 87246B 87246E 87249A 87249B 87251 87251 87264 87264 9046024039 9046106047 9046106047 9046106047 9046106820 9046108242 9046108709 9046108709 9046110410 9354014014 9354014014 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-20030

RT100,116

 1
87245A - HOSE, HEATER WATER, INLET A
87245-20030

RT100,116

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-20020

RT100,116

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-20020

RT100,116

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-20130

RT100,116

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-20130

RT100,116

 1
87264 - BRACKET, HEATER WATER HOSE
87268-20010

RT10#,112,114,116,117,118

 1
87264 - BRACKET, HEATER WATER HOSE
87268-20010

RT10#,112,114,116,117,118

 1
Common parts
90460-24039
90461-06047
90461-06820
90461-08242
90461-08709
90461-10410
93540-14014
96112-10250
