RT116L-KRFM (1975)

Toyota Corona

Production Nov 1975 - Aug 1978
Engine 12RM
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7905)RT116,117,118

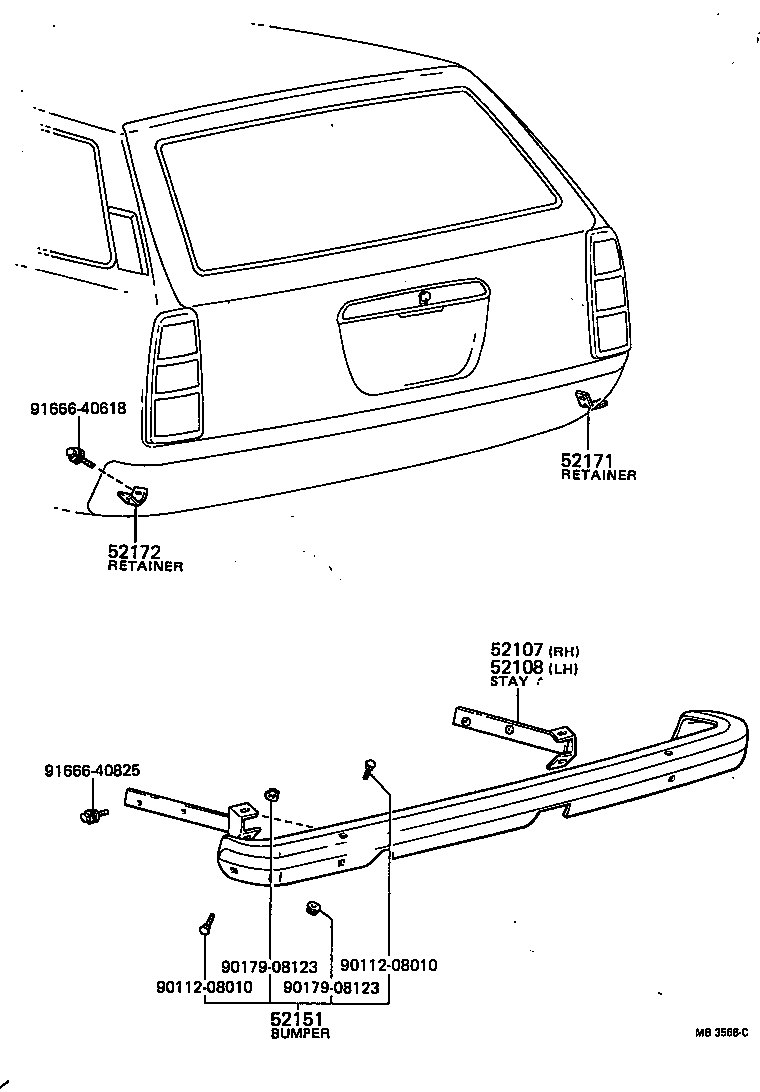

Click highlighted areas on diagram

diagram 52107 52108 52151 52171 52172 9011208010 9011208010 9017908123 9017908123 9166640618 9166640825
Part # Description Qty Price
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52045-21010

RT116,117,118

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52046-21010

RT116,117,118

 1
52151 - BUMPER ASSY, REAR
52151-29205

RT116,117,118

 1
52171 - RETAINER, REAR BUMPER SIDE, RH
52171-21020

RT116,117,118

 1
52172 - RETAINER, REAR BUMPER SIDE, LH
52172-21010

RT116,117,118

 1
Common parts
90112-08010
90179-08123
91666-40618
91666-40825
