RT116L-KRF (1973)
Toyota Corona

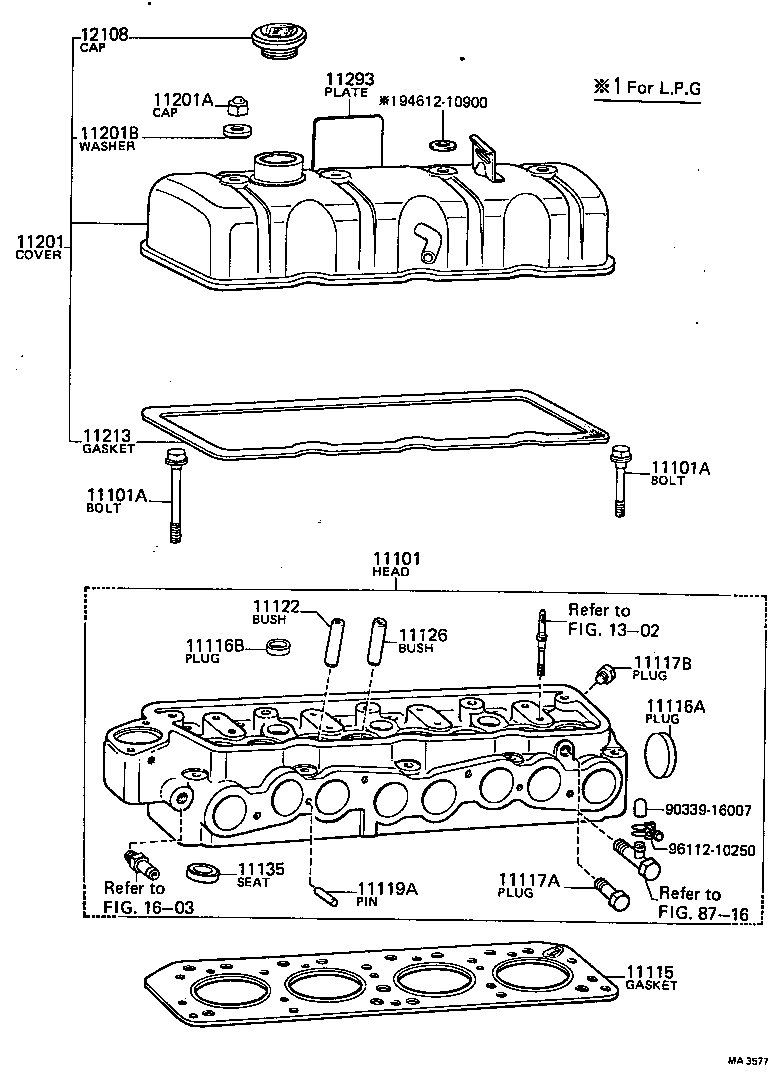

(7511-7808)12R#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-39175 |
12R..RT100,110,116 |
1 | ||
| 11101-39107 |
12R..RT100,116 |
1 | ||
| 11101-39176 |
12R..RT100,116 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02053 |
12R..RT100,110,116 12-1.25PX102-22 |
1 | ||
| 90910-02055 |
12R..RT100,110,116 12-1.25X112-22 |
1 | ||
| 90910-02065 |
12R#..RT100,110,116 12-1.25PX84.5-24 |
5 | ||
| 90910-02066 |
12R#..RT100,110,116 12-1.25PX98-24 |
5 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02053 |
12R..RT100,110,116 12-1.25PX102-22 |
1 | ||
| 90910-02055 |
12R..RT100,110,116 12-1.25X112-22 |
1 | ||
| 90910-02065 |
12R#..RT100,110,116 12-1.25PX84.5-24 |
5 | ||
| 90910-02066 |
12R#..RT100,110,116 12-1.25PX98-24 |
5 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-31020 |
12R..RT100,110,116 |
1 | ||
| 11115-31023 |
12R#..RT100,116 |
1 | ||
| 11115-31022 |
12R#..RT100,110,116 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-45000 |
12R#..RT100,110,116 OD=50 |
1 | ||
| 90331-50015 |
12R..RT100,116 OD=50 |
1 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-42200 |
12R#..RT100,110,116 OD=22 |
3 | ||
| 90331-22022 |
12R..RT100,116 OD=22 |
3 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90345-51025 |
12R#..RT100,110,116 |
1 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-08054 |
12R,16R,18R..RT10#,11# L=23,OD=8,L=23,OD=8 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-23010 |
12R#..RT100,110,116 STD |
4 | ||
| 11122-31020 |
12R..RT100,116 STD |
4 | ||
| 11123-31020 |
12R..RT100,116 O/S 0.05 |
4 | ||
| 11123-23010 |
12R#..RT100,110,116 O/S 0.05 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-31020 |
12R..RT100,116 O/S 0.05 |
4 | ||
| 11122-31020 |
12R..RT100,116 STD |
4 | ||
| 11122-23010 |
12R#..RT100,110,116 STD |
4 | ||
| 11123-23010 |
12R#..RT100,110,116 O/S 0.05 |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-39047 |
12R..RT100,116 W/PCV |
1 | ||
| 11201-39026 |
12R..RT100,110,116 L/PCV |
1 | ||
| 11201-39048 |
12R#..RT100,110,116 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-06014 |
12R#..RT100,110,116 |
4 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-10022 |
12R#..RT100,110,116 |
4 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-31010 |
12R..RT100,110,116 |
1 | ||
| 11213-31011 |
12R#..RT100,110,116 |
1 | ||
| 11293 - PLATE, ENGINE CAUTION & ENGINE NAME | ||||
| 11293-31040 |
12R..RT100,110,116 |
1 | ||
| 11293-31041 |
12R#..RT100,110,116 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12181-31020 |
12R#..RT100,110,116 |
1 | ||
| Common parts | ||||
| 90339-16007 | ||||
| 96112-10250 | ||||
| Linked diagrams | ||||
| 8716 | ||||

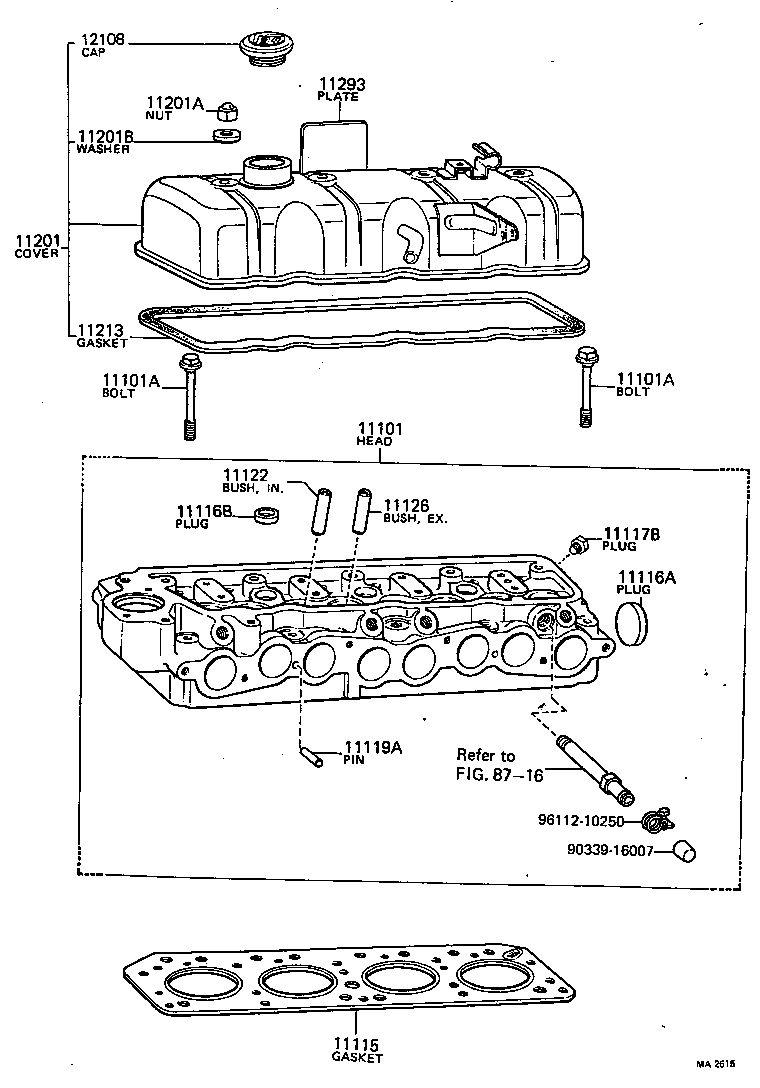

(7308-7511)12R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-39175 |
12R..RT100,110,116 |
1 | ||
| 11101-39107 |
12R..RT100,116 |
1 | ||
| 11101-39176 |
12R..RT100,116 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02053 |
12R..RT100,110,116 12-1.25PX102-22 |
1 | ||
| 90910-02055 |
12R..RT100,110,116 12-1.25X112-22 |
1 | ||
| 90910-02065 |
12R#..RT100,110,116 12-1.25PX84.5-24 |
5 | ||
| 90910-02066 |
12R#..RT100,110,116 12-1.25PX98-24 |
5 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02053 |
12R..RT100,110,116 12-1.25PX102-22 |
1 | ||
| 90910-02055 |
12R..RT100,110,116 12-1.25X112-22 |
1 | ||
| 90910-02065 |
12R#..RT100,110,116 12-1.25PX84.5-24 |
5 | ||
| 90910-02066 |
12R#..RT100,110,116 12-1.25PX98-24 |
5 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-31020 |
12R..RT100,110,116 |
1 | ||
| 11115-31023 |
12R#..RT100,116 |
1 | ||
| 11115-31022 |
12R#..RT100,110,116 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-45000 |
12R#..RT100,110,116 OD=50 |
1 | ||
| 90331-50015 |
12R..RT100,116 OD=50 |
1 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-42200 |
12R#..RT100,110,116 OD=22 |
3 | ||
| 90331-22022 |
12R..RT100,116 OD=22 |
3 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-53028 |
12R..RT100,110,116 |
1 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90345-51025 |
12R#..RT100,110,116 |
1 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-08054 |
12R,16R,18R..RT10#,11# L=23,OD=8,L=23,OD=8 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-23010 |
12R#..RT100,110,116 STD |
4 | ||
| 11122-31020 |
12R..RT100,116 STD |
4 | ||
| 11123-31020 |
12R..RT100,116 O/S 0.05 |
4 | ||
| 11123-23010 |
12R#..RT100,110,116 O/S 0.05 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-31020 |
12R..RT100,116 O/S 0.05 |
4 | ||
| 11122-31020 |
12R..RT100,116 STD |
4 | ||
| 11122-23010 |
12R#..RT100,110,116 STD |
4 | ||
| 11123-23010 |
12R#..RT100,110,116 O/S 0.05 |
4 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-31020 |
12R..RT100,116 O/S 0.03 |
4 | ||
| 11135-31022 |
12R..RT100,116 STD |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-39047 |
12R..RT100,116 W/PCV |
1 | ||
| 11201-39026 |
12R..RT100,110,116 L/PCV |
1 | ||
| 11201-39048 |
12R#..RT100,110,116 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90176-06014 |
12R#..RT100,110,116 |
4 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-10022 |
12R#..RT100,110,116 |
4 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-31010 |
12R..RT100,110,116 |
1 | ||
| 11213-31011 |
12R#..RT100,110,116 |
1 | ||
| 11293 - PLATE, ENGINE CAUTION & ENGINE NAME | ||||
| 11293-31040 |
12R..RT100,110,116 |
1 | ||
| 11293-31041 |
12R#..RT100,110,116 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12181-31020 |
12R#..RT100,110,116 |
1 | ||
| Common parts | ||||
| 90339-16007 | ||||
| 94612-10900 | ||||
| 96112-10250 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 1603 | ||||
| 8716 | ||||
