RT116-YRF (1973)

Toyota Corona

Production Aug 1973 - Aug 1978
Engine 12R
Transmission 3H MTM
Displacement 2500cc
Power 168 HP (125 kW)

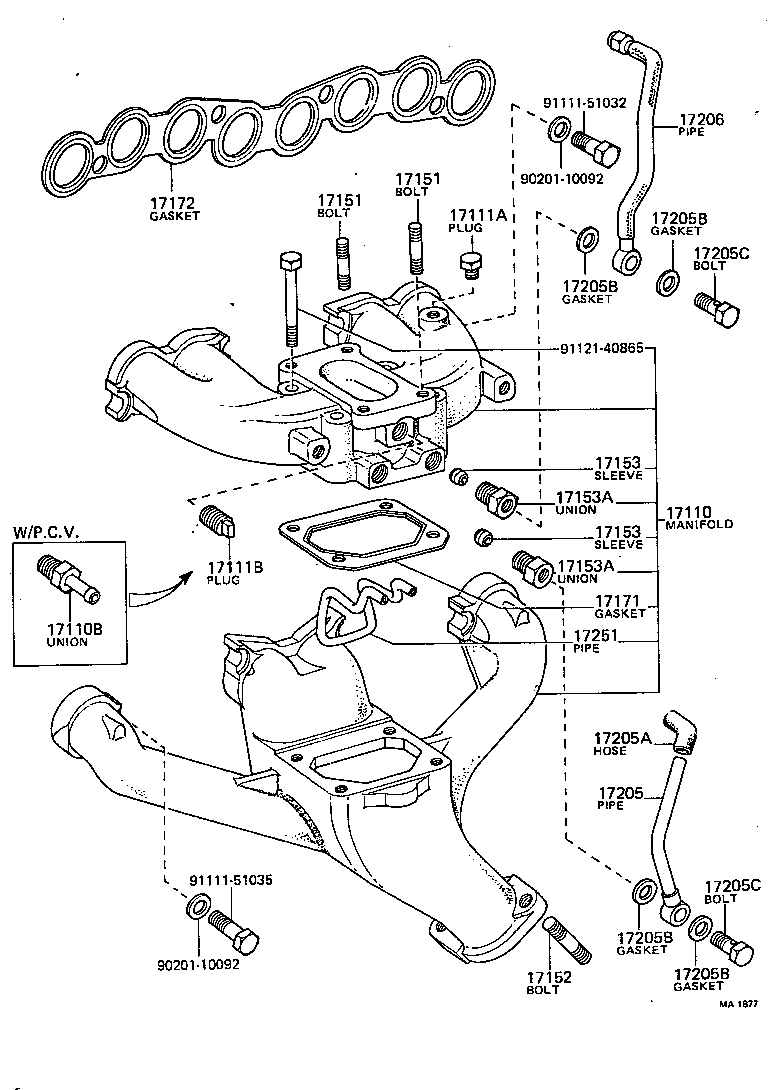

(7308-7502)12R

Click highlighted areas on diagram

diagram 17110 17110B 17111A 17111B 17151 17151 17152 17153 17153 17153A 17153A 17171 17172 17205 17205A 17205B 17205B 17205B 17205B 17205C 17205C 17206 17251 9020110092 9020110092 9111151032 9111151035 9112140865
Part # Description Qty Price
17110 - MANIFOLD ASSY
17110-31042

12R..RT100,116

 1
17110-31041

12R..RT100,110,116

 1
17110-31040

12R..RT100,110,116

 1
17110-31043

12R..RT100,116

 1
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90404-52129

12R..RT100,110,116

 1
90407-09002

12R#..RT100,110,116

 1
17111A - PLUG, NO.1
90345-51025

12R..RT100,116

 1
90345-51005

12R#..RT100,110,116

 2
17111B - PLUG, NO.2
90345-52002

12R..RT100,116

 1
90345-52002

12R#,18R#..RT100,110,116,118

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08320

12R..RT100,116

L=43,S=13&13

 2
90116-08010

12R..RT100,116

L=39,S=13&13

 4
90116-08320

12R..RT100,110,116

L=43,S=13&13

 4
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08320

12R..RT100,116

L=43,S=13&13

 2
90116-08010

12R..RT100,116

L=39,S=13&13

 4
90116-08320

12R..RT100,110,116

L=43,S=13&13

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10042

12R#..RT100,110,116

L=37,S=20&13

 2
17153 - SLEEVE, BALL(FOR AUTOMATIC CHOKE STOVE PIPE)
90410-06003

12R,16R,18R#..RT10#,11#

 2
90410-06003

12R,16R,18R..RT10#,11#

 2
17153 - SLEEVE, BALL(FOR AUTOMATIC CHOKE STOVE PIPE)
90410-06003

12R,16R,18R#..RT10#,11#

 2
90410-06003

12R,16R,18R..RT10#,11#

 2
17153A - UNION(FOR AUTOMATIC CHOKE STOVE PIPE)
90404-14022

12R,16R,18R#..RT10#,11#

 2
90404-14022

12R,16R,18R..RT10#,11#

 2
17153A - UNION(FOR AUTOMATIC CHOKE STOVE PIPE)
90404-14022

12R,16R,18R#..RT10#,11#

 2
90404-14022

12R,16R,18R..RT10#,11#

 2
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-44010

12R..RT100,110,116

 1
17171-31020

12R..RT100,116

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-31020

12R..RT100,110,116

 1
17172-31021

12R..RT100,116

 1
17205 - PIPE, AUTOMATIC CHOKE STOVE INLET
17205-31013

12R..RT100,110,116

 1
17205A - HOSE(FOR AUTOMATIC CHOKE STOVE PIPE)
90910-05017

12R,16R,18R..RT10#,11#

 1
90910-05017

12R,16R,18R#..RT10#,11#

 1
17205B - GASKET(FOR AUTOMATIC CHOKE STOVE PIPE)
90430-08033

12R,16R,18R#..RT10#,11#

 4
90430-08033

12R,16R,18R..RT10#,11#

 4
17205B - GASKET(FOR AUTOMATIC CHOKE STOVE PIPE)
90430-08033

12R,16R,18R#..RT10#,11#

 4
90430-08033

12R,16R,18R..RT10#,11#

 4
17205B - GASKET(FOR AUTOMATIC CHOKE STOVE PIPE)
90430-08033

12R,16R,18R#..RT10#,11#

 4
90430-08033

12R,16R,18R..RT10#,11#

 4
17205B - GASKET(FOR AUTOMATIC CHOKE STOVE PIPE)
90430-08033

12R,16R,18R#..RT10#,11#

 4
90430-08033

12R,16R,18R..RT10#,11#

 4
17205C - BOLT, UNION(FOR AUTOMATIC CHOKE STOVE PIPE)
90401-08012

12R,16R,18R#..RT10#,11#

 2
90401-08012

12R,16R,18R..RT10#,11#

 2
17205C - BOLT, UNION(FOR AUTOMATIC CHOKE STOVE PIPE)
90401-08012

12R,16R,18R#..RT10#,11#

 2
90401-08012

12R,16R,18R..RT10#,11#

 2
17206 - PIPE, AUTOMATIC CHOKE STOVE OUTLET
17206-31020

12R..RT100,110,116

 1
17251 - PIPE,AUTOMATIC CHOKE STOVE
17251-33021

12R,16R,18R#..RT10#,11#

 1
17251-33020

12R,16R,18R..RT10#,11#

 1
17251-33021

12R,16R,18R..RT10#,11#

 1
Common parts
90201-10092
91111-51032
91111-51035
91121-40865

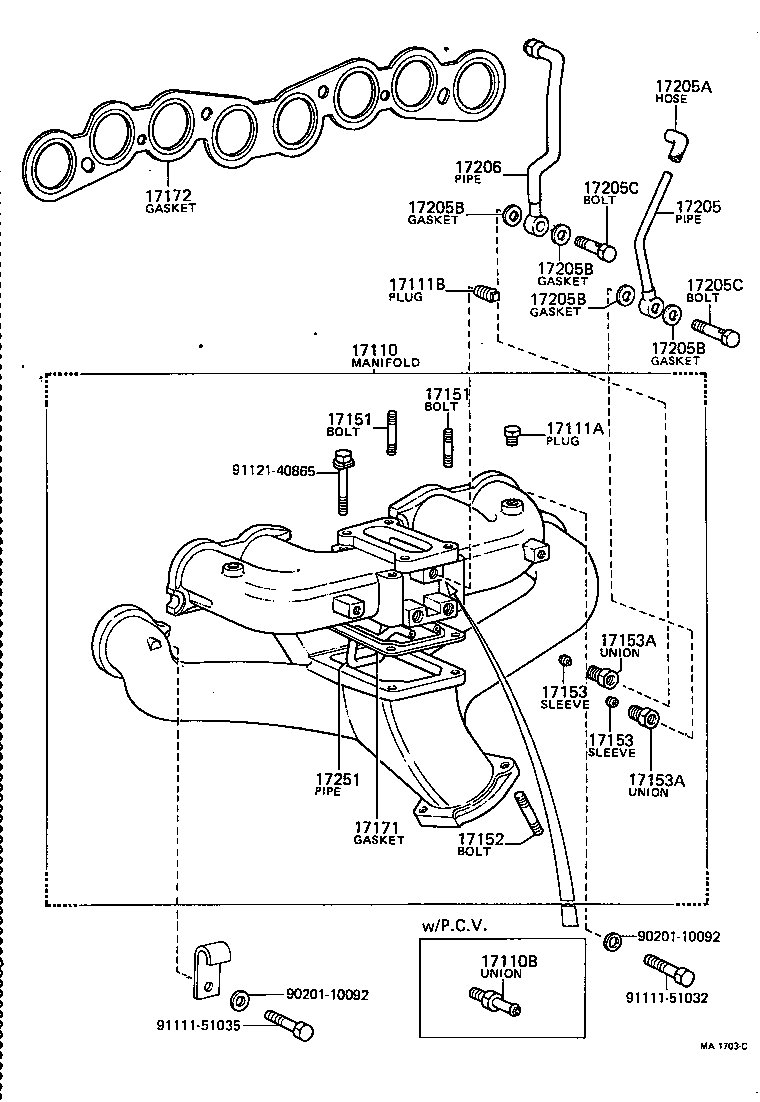

(7502-7511)12R

Click highlighted areas on diagram

diagram 17110 17110B 17111A 17111B 17151 17151 17152 17153 17153 17153A 17153A 17171 17172 17205 17205A 17205B 17205B 17205B 17205B 17205C 17205C 17206 17251 9020110092 9020110092 9111151032 9111151035 9112140865
Part # Description Qty Price
17110 - MANIFOLD ASSY
17110-31042

12R..RT100,116

 1
17110-31041

12R..RT100,110,116

 1
17110-31040

12R..RT100,110,116

 1
17110-31043

12R..RT100,116

 1
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90404-52129

12R..RT100,110,116

 1
90407-09002

12R#..RT100,110,116

 1
17111A - PLUG, NO.1
90345-51025

12R..RT100,116

 1
90345-51005

12R#..RT100,110,116

 2
17111B - PLUG, NO.2
90345-52002

12R..RT100,116

 1
90345-52002

12R#,18R#..RT100,110,116,118

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08320

12R..RT100,116

L=43,S=13&13

 2
90116-08010

12R..RT100,116

L=39,S=13&13

 4
90116-08320

12R..RT100,110,116

L=43,S=13&13

 4
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08320

12R..RT100,116

L=43,S=13&13

 2
90116-08010

12R..RT100,116

L=39,S=13&13

 4
90116-08320

12R..RT100,110,116

L=43,S=13&13

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10042

12R#..RT100,110,116

L=37,S=20&13

 2
17153 - SLEEVE, BALL(FOR AUTOMATIC CHOKE STOVE PIPE)
90410-06003

12R,16R,18R#..RT10#,11#

 2
90410-06003

12R,16R,18R..RT10#,11#

 2
17153 - SLEEVE, BALL(FOR AUTOMATIC CHOKE STOVE PIPE)
90410-06003

12R,16R,18R#..RT10#,11#

 2
90410-06003

12R,16R,18R..RT10#,11#

 2
17153A - UNION(FOR AUTOMATIC CHOKE STOVE PIPE)
90404-14022

12R,16R,18R#..RT10#,11#

 2
90404-14022

12R,16R,18R..RT10#,11#

 2
17153A - UNION(FOR AUTOMATIC CHOKE STOVE PIPE)
90404-14022

12R,16R,18R#..RT10#,11#

 2
90404-14022

12R,16R,18R..RT10#,11#

 2
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-44010

12R..RT100,110,116

 1
17171-31020

12R..RT100,116

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-31020

12R..RT100,110,116

 1
17172-31021

12R..RT100,116

 1
17205 - PIPE, AUTOMATIC CHOKE STOVE INLET
17205-31013

12R..RT100,110,116

 1
17205A - HOSE(FOR AUTOMATIC CHOKE STOVE PIPE)
90910-05017

12R,16R,18R..RT10#,11#

 1
90910-05017

12R,16R,18R#..RT10#,11#

 1
17205B - GASKET(FOR AUTOMATIC CHOKE STOVE PIPE)
90430-08033

12R,16R,18R#..RT10#,11#

 4
90430-08033

12R,16R,18R..RT10#,11#

 4
17205B - GASKET(FOR AUTOMATIC CHOKE STOVE PIPE)
90430-08033

12R,16R,18R#..RT10#,11#

 4
90430-08033

12R,16R,18R..RT10#,11#

 4
17205B - GASKET(FOR AUTOMATIC CHOKE STOVE PIPE)
90430-08033

12R,16R,18R#..RT10#,11#

 4
90430-08033

12R,16R,18R..RT10#,11#

 4
17205B - GASKET(FOR AUTOMATIC CHOKE STOVE PIPE)
90430-08033

12R,16R,18R#..RT10#,11#

 4
90430-08033

12R,16R,18R..RT10#,11#

 4
17205C - BOLT, UNION(FOR AUTOMATIC CHOKE STOVE PIPE)
90401-08012

12R,16R,18R#..RT10#,11#

 2
90401-08012

12R,16R,18R..RT10#,11#

 2
17205C - BOLT, UNION(FOR AUTOMATIC CHOKE STOVE PIPE)
90401-08012

12R,16R,18R#..RT10#,11#

 2
90401-08012

12R,16R,18R..RT10#,11#

 2
17206 - PIPE, AUTOMATIC CHOKE STOVE OUTLET
17206-31020

12R..RT100,110,116

 1
17251 - PIPE,AUTOMATIC CHOKE STOVE
17251-33021

12R,16R,18R#..RT10#,11#

 1
17251-33020

12R,16R,18R..RT10#,11#

 1
17251-33021

12R,16R,18R..RT10#,11#

 1
Common parts
90201-10092
91111-51032
91111-51035
91121-40865

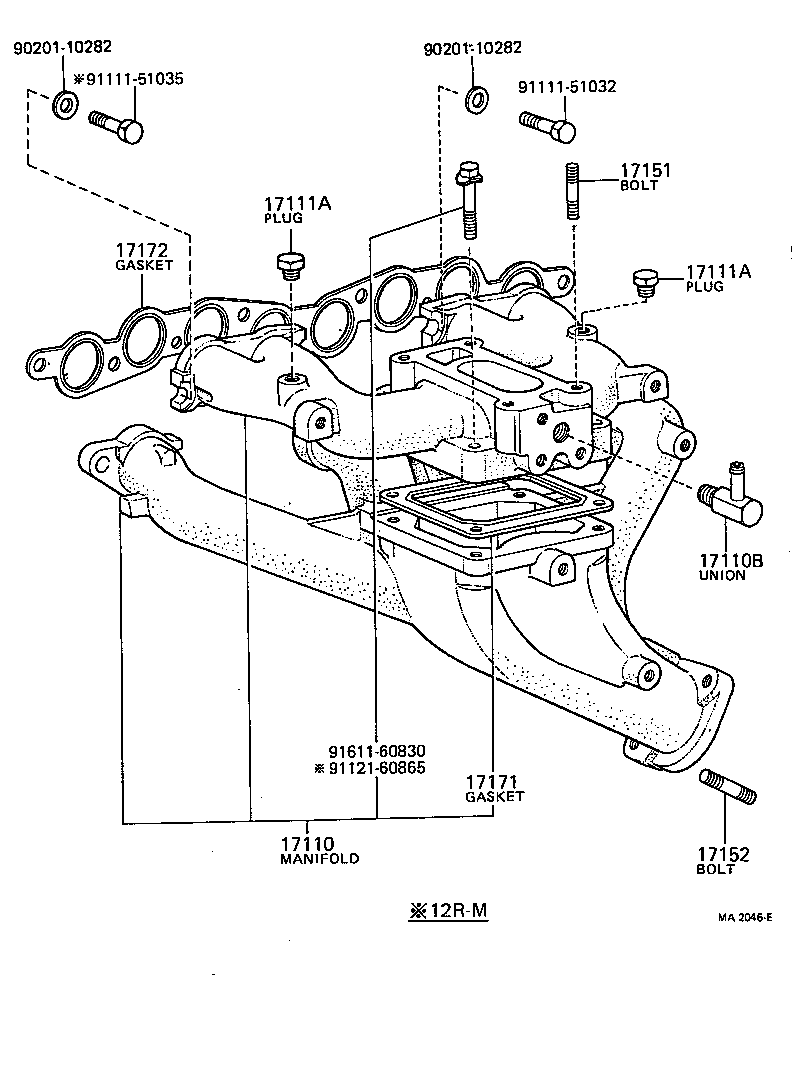

(7511-7808)12R#

Click highlighted areas on diagram

diagram 17110 17110B 17111A 17111A 17151 17152 17171 17172 9020110282 9020110282 9111151032 9111151035 9112160865 9161160830
Part # Description Qty Price
17110 - MANIFOLD ASSY
17110-31042

12R..RT100,116

 1
17110-31041

12R..RT100,110,116

 1
17110-31040

12R..RT100,110,116

 1
17110-31043

12R..RT100,116

 1
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90404-52129

12R..RT100,110,116

 1
90407-09002

12R#..RT100,110,116

 1
17111A - PLUG, NO.1
90345-51025

12R..RT100,116

 1
90345-51005

12R#..RT100,110,116

 2
17111A - PLUG, NO.1
90345-51025

12R..RT100,116

 1
90345-51005

12R#..RT100,110,116

 2
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08320

12R..RT100,116

L=43,S=13&13

 2
90116-08010

12R..RT100,116

L=39,S=13&13

 4
90116-08320

12R..RT100,110,116

L=43,S=13&13

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10042

12R#..RT100,110,116

L=37,S=20&13

 2
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-44010

12R..RT100,110,116

 1
17171-31020

12R..RT100,116

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-31020

12R..RT100,110,116

 1
17172-31021

12R..RT100,116

 1
Common parts
90201-10282
91111-51032
91111-51035
91121-60865
91611-60830
