Toyota Corona RT116 WATER PUMP - JDM Part Detective

RT116-YRF (1973)

Toyota Corona

Production Aug 1973 - Aug 1978

Engine 12R

Transmission 3H MTM

Displacement 2500cc

Power 168 HP (125 kW)

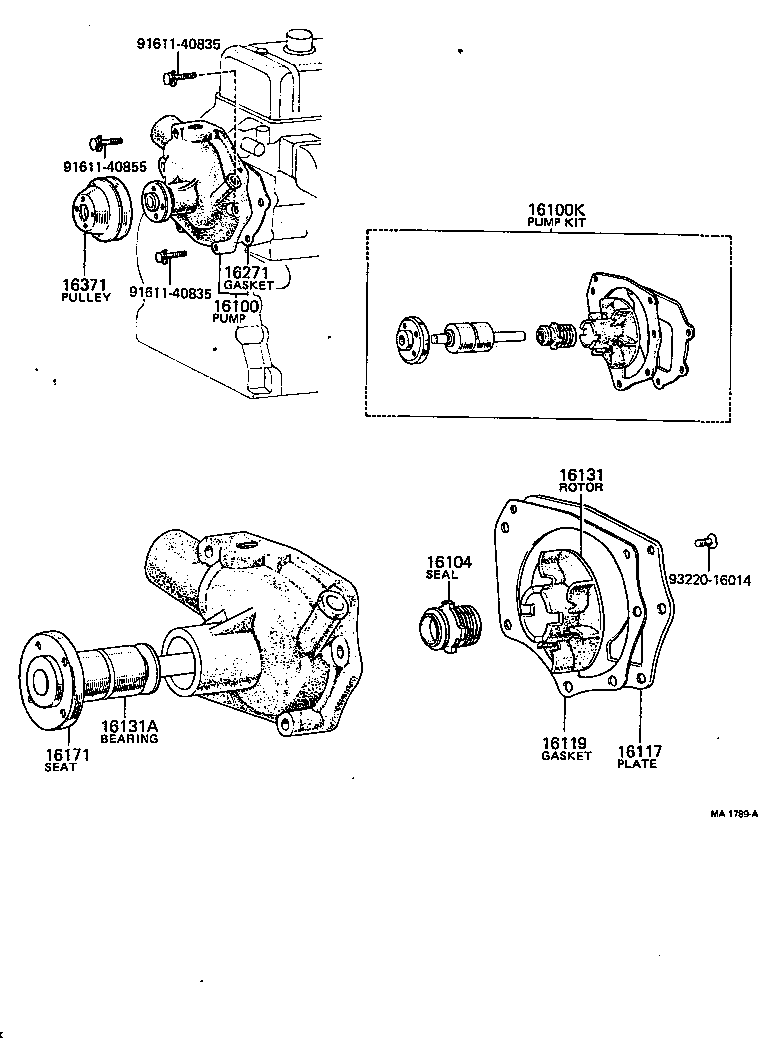

(7308-7511)12R

Click highlighted areas on diagram

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-39116	12R#..RT100,110,116	11/1975 - 08/1978	1
16100-39115	12R..RT100,110,116	08/1973 - 11/1975	1
16100K - PUMP KIT, WATER
04161-31020	12R..RT100,110,116	08/1973 - 11/1975	1
04161-31023	12R#..RT100,116	08/1977 - 08/1978	1
04161-31021	12R#..RT100,110,116	11/1975 - 08/1977	1
16104 - SEAL SET, WATER PUMP
16104-41040	12R..RT100,110,116	08/1973 - 11/1975	1
16117 - PLATE, WATER PUMP
16117-31031	12R#..RT100,110,116	11/1975 - 08/1978	1
16117-31011	12R..RT100,110,116	09/1974 - 11/1975	1
16117-31010	12R..RT100,110,116	08/1973 - 09/1974	1
16119 - GASKET, WATER PUMP BODY
16124-31011	12R..RT100,110,116	02/1974 - 11/1975	1
16124-31010	12R..RT100,116	08/1973 - 02/1974	1
16124-31031	12R#..RT100,110,116	11/1975 - 08/1978	1
16131 - ROTOR, WATER PUMP
16131-31010	12R..RT100,110,116	08/1973 - 11/1975	1
16131-31032	12R#..RT100,116	08/1977 - 08/1978	1
16131-31031	12R#..RT100,110,116	11/1975 - 08/1977	1
16131A - BEARING, WATER PUMP
90369-30035	12R..RT100,110,116 WPB16124RS	08/1973 - 11/1975	1
90369-30003	12R#..RT100,110,116 WPB16124BR	11/1975 - 08/1978	1
16171 - SEAT, WATER PUMP PULLEY
16171-31030	12R..RT100,110,116	08/1973 - 07/1975	1
16171-24031	12R#..RT100,110,116	07/1975 - 08/1978	1
16271 - GASKET, WATER PUMP
16271-30010	12R..RT100,110,116	08/1973 - 11/1975	1
16271-30011	12R#..RT100,110,116	11/1975 - 08/1978	1
16371 - PULLEY, FAN
16371-31022	12R#..RT100,110,116	11/1975 - 08/1978	1
16371-31021	12R..RT100,110,116	08/1973 - 11/1975	1
Common parts
91611-40835
91611-40855
93220-16014

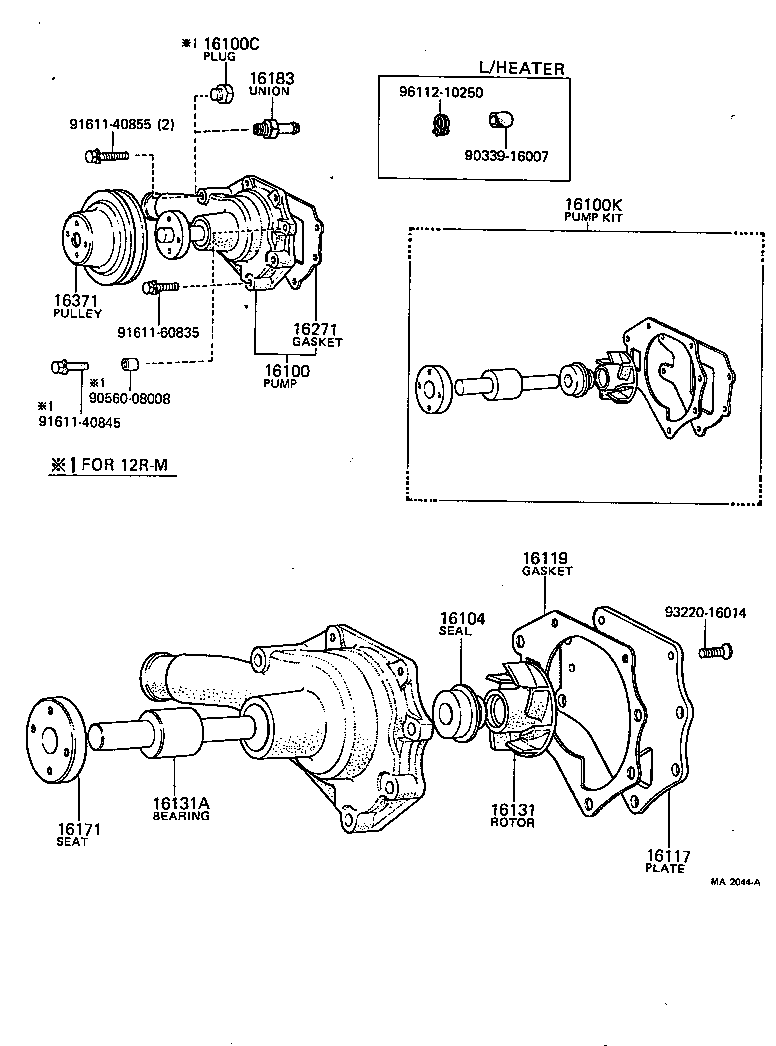

(7511-7808)12R#

Click highlighted areas on diagram

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-39116	12R#..RT100,110,116	11/1975 - 08/1978	1
16100-39115	12R..RT100,110,116	08/1973 - 11/1975	1
16100K - PUMP KIT, WATER
04161-31020	12R..RT100,110,116	08/1973 - 11/1975	1
04161-31023	12R#..RT100,116	08/1977 - 08/1978	1
04161-31021	12R#..RT100,110,116	11/1975 - 08/1977	1
16104 - SEAL SET, WATER PUMP
16104-41040	12R..RT100,110,116	08/1973 - 11/1975	1
16117 - PLATE, WATER PUMP
16117-31031	12R#..RT100,110,116	11/1975 - 08/1978	1
16117-31011	12R..RT100,110,116	09/1974 - 11/1975	1
16117-31010	12R..RT100,110,116	08/1973 - 09/1974	1
16119 - GASKET, WATER PUMP BODY
16124-31010	12R..RT100,116	08/1973 - 02/1974	1
16124-31011	12R..RT100,110,116	02/1974 - 11/1975	1
16124-31031	12R#..RT100,110,116	11/1975 - 08/1978	1
16131 - ROTOR, WATER PUMP
16131-31010	12R..RT100,110,116	08/1973 - 11/1975	1
16131-31032	12R#..RT100,116	08/1977 - 08/1978	1
16131-31031	12R#..RT100,110,116	11/1975 - 08/1977	1
16131A - BEARING, WATER PUMP
90369-30035	12R..RT100,110,116 WPB16124RS	08/1973 - 11/1975	1
90369-30003	12R#..RT100,110,116 WPB16124BR	11/1975 - 08/1978	1
16171 - SEAT, WATER PUMP PULLEY
16171-31030	12R..RT100,110,116	08/1973 - 07/1975	1
16171-24031	12R#..RT100,110,116	07/1975 - 08/1978	1
16183 - UNION, WATER PUMP
87251-20070	12R..RT100,116	11/1975 - 08/1978	1
16271 - GASKET, WATER PUMP
16271-30010	12R..RT100,110,116	08/1973 - 11/1975	1
16271-30011	12R#..RT100,110,116	11/1975 - 08/1978	1
16371 - PULLEY, FAN
16371-31022	12R#..RT100,110,116	11/1975 - 08/1978	1
16371-31021	12R..RT100,110,116	08/1973 - 11/1975	1
Common parts
90339-16007
90560-08008
91611-40845
91611-40855
91611-60835
93220-16014
96112-10250

RT116-YRF (1973)

(7308-7511)12R

(7511-7808)12R#
