RT114L-HD (1975)

Toyota Corona

Production Sep 1975 - Aug 1978
Engine 18R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7808)2D

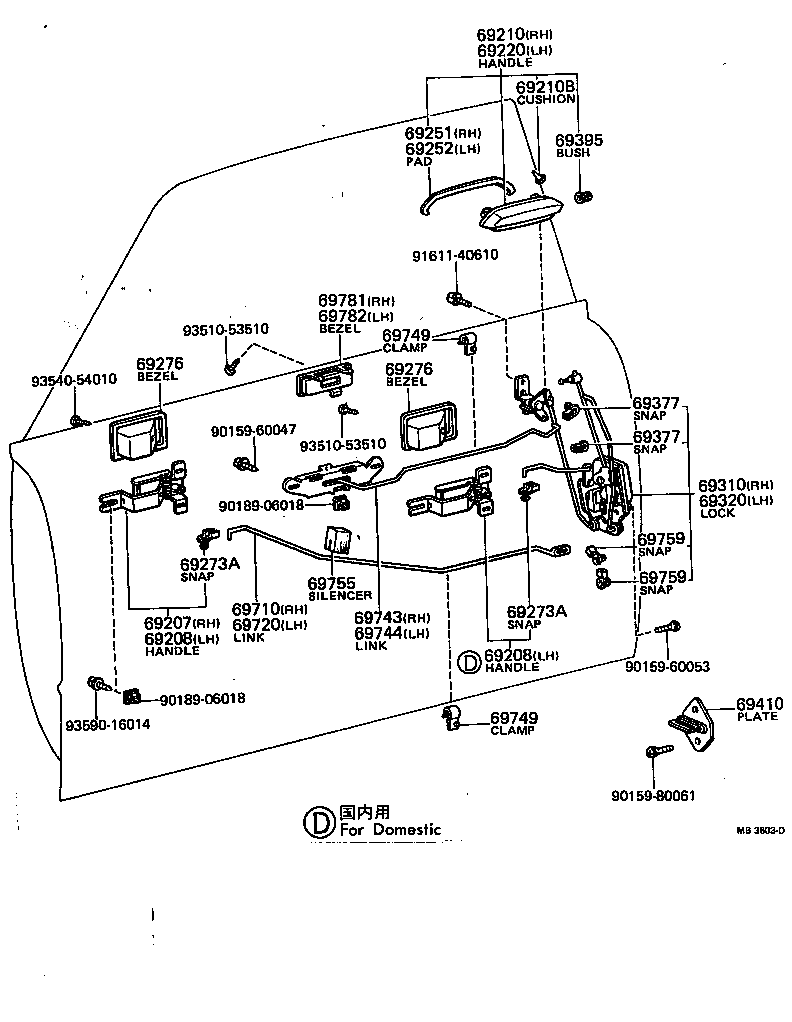

Click highlighted areas on diagram

diagram 69207 69208 69208 69210 69210B 69220 69251 69252 69273A 69273A 69276 69276 69310 69320 69377 69377 69395 69410 69710 69720 69743 69744 69749 69749 69755 69759 69759 69781 69782 9015960047 9015960053 9015980061 9018906018 9018906018 9161140610 9351053510 9351053510 9354054010 9359016014
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69207-20030

RT10#,11#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69208-20020

RT10#,11#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69208-20020

RT10#,11#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-20050

RT10#,11#

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

RT10#,11#

 2
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-20050

RT10#,11#

 1
69251 - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH
69251-20030

RT10#,11#

 1
69252 - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH
69251-20030

RT10#,11#

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69276-22020

RT10#,11#

 2
69276-2202006

RT10#,11#

BROWN,BROWN,TRIM4#

 2
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69276-22020

RT10#,11#

 2
69276-2202006

RT10#,11#

BROWN,BROWN,TRIM4#

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-20070

RT110,112,114

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-20080

RT110,112,114

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69377-30020

RT114

 4
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69377-30020

RT114

 4
69395 - BUSH(FOR DOOR OUTSIDE HANDLE)
69395-22010

RT10#,11#

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-20050

RT10#,11#

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69715-20050

RT110,112,114

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69716-20040

RT110,112,114

 1
69743 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
69701-20040

RT110,112,114

 1
69701-2004001

RT114

BLACK,BLACK,TRIM2#

 1
69701-2004005

RT114

BEIGE,BEIGE,TRIM4#

 1
69744 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
69702-20040

RT110,112,114

 1
69702-2004001

RT114

BLACK,BLACK,TRIM2#

 1
69702-2004005

RT114

BEIGE,BEIGE,TRIM4#

 1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-12010

RT10#,11#

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-12010

RT10#,11#

 2
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-95500

RT110,114

 2
69759-12011

RT10#,11#

 2
69781 - BEZEL, DOOR LOCKING, RH
69781-3002101

RT110,114

BLACK,BLACK,TRIM1#,2#

 1
69781-3002106

RT110,114

BROWN,BROWN,TRIM4#

 1
69781-30021

RT110,112,114

 1
69781-3002105

RT114

BEIGE,BEIGE,TRIM4#

 1
69782 - BEZEL, DOOR LOCKING, LH
69782-3002101

RT110,114

BLACK,BLACK,TRIM1#,2#

 1
69782-3002106

RT110,114

BROWN,BROWN,TRIM4#

 1
69782-3002105

RT114

BEIGE,BEIGE,TRIM4#

 1
69782-30021

RT110,112,114

 1
Common parts
90159-60047
90159-60053
90159-80061
90189-06018
91611-40610
93510-53510
93540-54010
93590-16014
