RT110L-KDM (1975)

Toyota Corona

Production Nov 1975 - Jan 1977
Engine 12RM
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7808)RT110,112,114

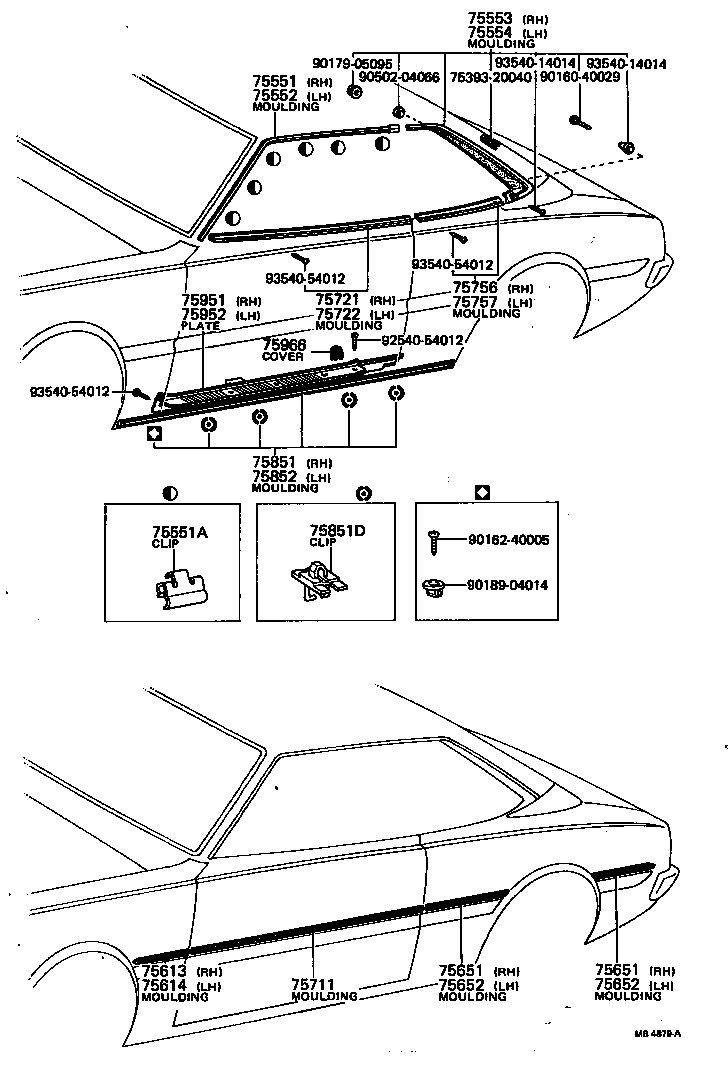

Click highlighted areas on diagram

diagram 7539320040 75551 75551A 75552 75553 75554 75613 75614 75651 75651 75652 75652 75711 75721 75722 75756 75757 75851 75851D 75852 75951 75952 75966 9016040029 9016240005 9017905095 9018904014 9050204066 9254054012 9354014014 9354014014 9354054012 9354054012 9354054012
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-20130

RT110,112,114

 1
75551A - CLIP, ROOF DRIP MOULDING, NO.1
75399-20050

RT110,112,114

 12
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-20130

RT110,112,114

 1
75721 - MOULDING, FRONT DOOR BELT, RH
75710-29015

RT110,112,114

 1
75722 - MOULDING, FRONT DOOR BELT, LH
75720-29015

RT110,112,114

 1
75756 - MOULDING, QUARTER BELT, RH
75740-29015

RT110,112,114

 1
75757 - MOULDING, QUARTER BELT, LH
75750-29015

RT110,112,114

 1
75851D - CLIP(FOR ROCKER PANEL MOULDING SET)
75859-20010

RT10#,110,112,114..DLX

 8
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-20070

RT110,112,114

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67914-20070

RT110

 1
75966 - COVER, DOOR SCUFF PLATE HOLE
67935-20010

RT10#,11#

FOR L/SEAT BELT

 2
Common parts
75393-20040
90160-40029
90162-40005
90179-05095
90189-04014
90502-04066
92540-54012
93540-14014
93540-54012
