RT110L-KD (1974)

Toyota Corona

Production Jul 1974 - Nov 1975
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7511)12R

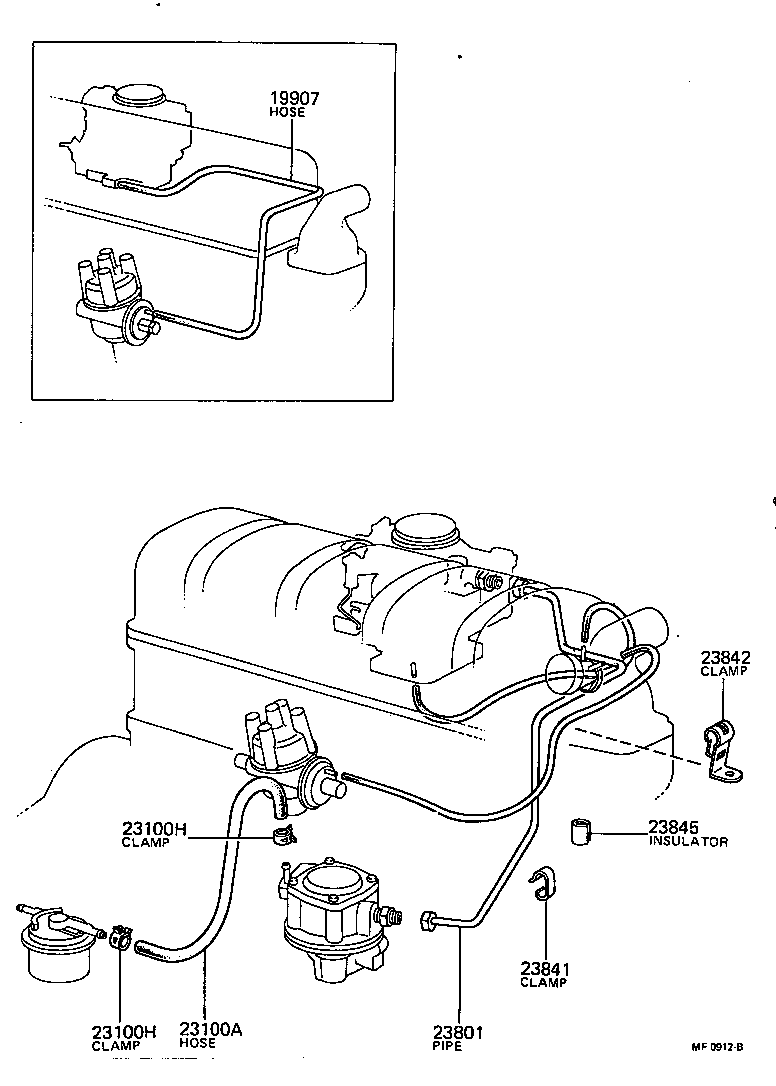

Click highlighted areas on diagram

diagram 19907 23100A 23100H 23100H 23801 23841 23842 23845
Part # Description Qty Price
19907 - HOSE, VACUUM, NO.1
90445-07106

12R..RT100,110,116

L=730

 1
23100A - HOSE, FUEL
95331-06034

12R,16R,18R..RT10#,11#

L=340

 1
95331-06034

12R,16R,18R#..RT10#,11#

L=340

 1
23100H - CLIP(FOR FUEL HOSE)
90467-12140

12R,16R,18R..RT10#,11#

 2
23100H - CLIP(FOR FUEL HOSE)
90467-12140

12R,16R,18R..RT10#,11#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23801-31040

12R..RT100,110,116

 1
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
90468-04007

12R..RT100,110,116

 3
23842 - CLAMP, FUEL PIPE(HOSE), NO.2
23841-40010

12R..RT100,110,116

 1
23845 - INSULATOR, FUEL PIPE
23845-20010

12R..RT100,110,116

 1
