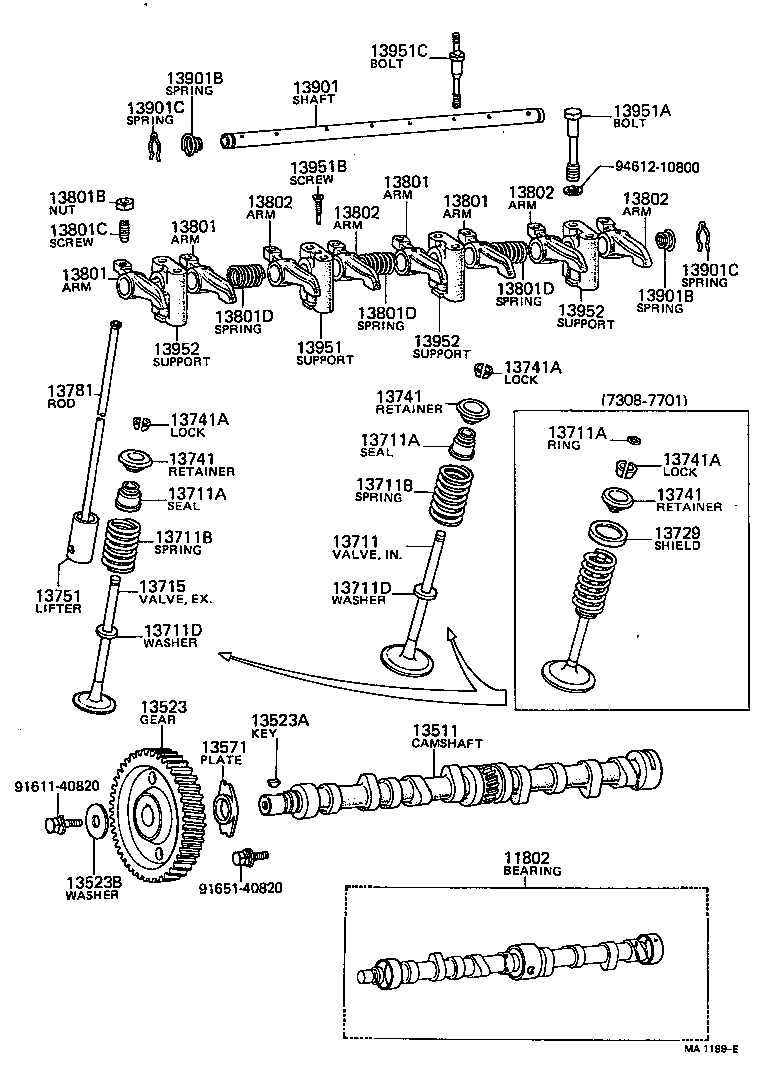

RT110L-KD (1974)
Toyota Corona
(7308-7808)12R#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11802 - BEARING SET, CAMSHAFT | ||||
| 11803-31010 |
12R..RT100,110,116 U/S 0.125 |
1 | ||
| 11805-31010 |
12R#..RT100,110,116 U/S 0.50 |
1 | ||
| 11802-31010 |
12R#..RT100,110,116 STD |
1 | ||
| 11804-31010 |
12R#..RT100,110,116 U/S 0.25 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13511-31020 |
12R..RT100,110,116 |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-31010 |
12R..RT100,110,116 N=50 |
1 | ||
| 13523B - WASHER, PLATE(FOR TIMING GEAR) | ||||
| 90201-08120 |
12R#..RT100,110,116 |
1 | ||
| 13571 - PLATE, CAMSHAFT THRUST | ||||
| 13571-31010 |
12R#..RT100,110,116 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-31030 |
12R#..RT100,110,116 |
4 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90301-06096 |
12R#..RT100,110,116 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90301-06096 |
12R#..RT100,110,116 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90301-06096 |
12R#..RT100,110,116 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-47751 |
12R..RT100,110,116 WD=4.7,CW=6 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-47751 |
12R..RT100,110,116 WD=4.7,CW=6 |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-15387 |
12R#..RT100,110,116 |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-15387 |
12R#..RT100,110,116 |
8 | ||
| 13729 - SHIELD, VALVE STEM OIL | ||||
| 13729-31031 |
12R#..RT100,110,116 |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-31013 |
12R..RT100,110,116 |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-31013 |
12R..RT100,110,116 |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-31013 |
12R..RT100,110,116 |
8 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
12R,16R,18R..RT10#,11# |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
12R,16R,18R..RT10#,11# |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03005 |
12R,16R,18R..RT10#,11# |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-31021 |
12R#..RT100,110,116 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-31021 |
12R#..RT100,110,116 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-31021 |
12R#..RT100,110,116 |
4 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13811-31021 |
12R#..RT100,110,116 |
4 | ||
| 13801B - NUT, HEXAGON(FOR VALVE ADJUSTING) | ||||
| 90170-10074 |
12R#..RT100,110,116 |
8 | ||
| 13801C - SCREW, VALVE ADJUSTING | ||||
| 90913-05010 |
12R#..RT100,110,116 |
8 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
12R,16R,18R..RT10#,11# WD=1.6,CW=7.5 |
4 | ||
| 90501-16098 |
12R#..RT100,110,116 WD=1.6,CW=9 |
1 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
12R,16R,18R..RT10#,11# WD=1.6,CW=7.5 |
4 | ||
| 90501-16098 |
12R#..RT100,110,116 WD=1.6,CW=9 |
1 | ||
| 13801D - SPRING, COMPRESSION(FOR ROCKER ARM) | ||||
| 90501-16163 |
12R,16R,18R..RT10#,11# WD=1.6,CW=7.5 |
4 | ||
| 90501-16098 |
12R#..RT100,110,116 WD=1.6,CW=9 |
1 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-31021 |
12R#..RT100,110,116 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-31021 |
12R#..RT100,110,116 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-31021 |
12R#..RT100,110,116 |
4 | ||
| 13802 - ARM SUB-ASSY, VALVE ROCKER, NO.2 | ||||
| 13812-31021 |
12R#..RT100,110,116 |
4 | ||
| 13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13901-31020 |
12R#..RT100,110,116 |
1 | ||
| 13901B - SPRING, CONICAL(FOR VALVE ROCKER SHAFT) | ||||
| 90502-16004 |
12R#..RT100,110,116 |
2 | ||
| 13901B - SPRING, CONICAL(FOR VALVE ROCKER SHAFT) | ||||
| 90502-16004 |
12R#..RT100,110,116 |
2 | ||
| 13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT) | ||||
| 90524-15008 |
12R#..RT100,110,116 |
2 | ||
| 13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT) | ||||
| 90524-15008 |
12R#..RT100,110,116 |
2 | ||
| 13951 - SUPPORT, VALVE ROCKER, NO.1 | ||||
| 13951-31020 |
12R#..RT100,110,116 |
1 | ||
| 13951A - BOLT(FOR ROCKER SUPPORT SET) | ||||
| 90910-01010 |
12R#..RT100,110,116 8-1.25PX71-16 |
4 | ||
| 13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK) | ||||
| 90151-40010 |
12R,16R,18R..RT10#,11# |
1 | ||
| 13951C - BOLT, STUD(FOR ROCKER SUPPORT) | ||||
| 13955-31010 |
12R#..RT100,110,116 L=109.5,S=16&18 |
4 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-31010 |
12R#..RT100,110,116 |
3 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-31010 |
12R#..RT100,110,116 |
3 | ||
| 13952 - SUPPORT, VALVE ROCKER, NO.2 | ||||
| 13952-31010 |
12R#..RT100,110,116 |
3 | ||
| Common parts | ||||
| 91611-40820 | ||||
| 91651-40820 | ||||
| 94612-10800 | ||||
